ABB Ground fault circuit interrupter

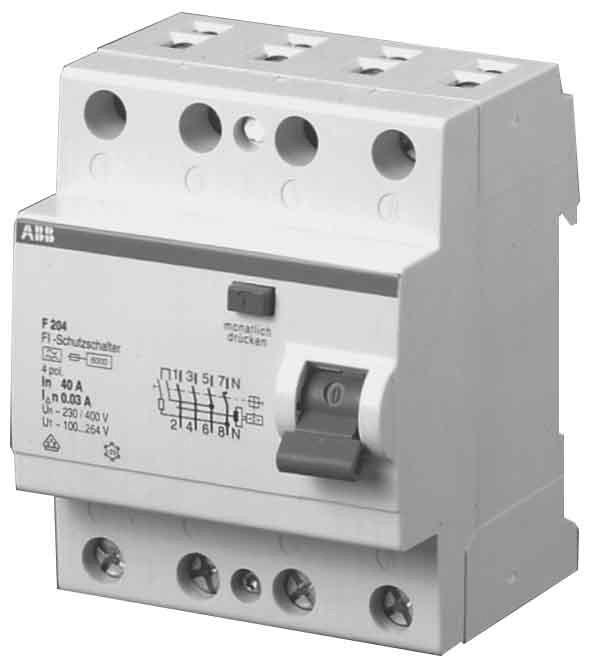

ABB Stotz S&J RCD F204A-40/0.03L

Manufacturer: ABB Stotz S&J
Designation: RCD pro M Compact
Type: F204A-40/0.03L
Number of Poles: 4
Rated Voltage: 400 V
Rated Current: 40 A
Rated Residual Current: 0.03 A
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Withstand Uimp: 4 kV
Mounting Type: DIN Rail
Residual Current Type: A
Selective Type: No
Time Delay Type: No
Short-Circuit Strength (Icw): 1 kA
Surge Current Strength: 0.25 kA
Voltage Type: AC
With Locking Device: Yes
Frequency: Other
Additional Devices Possible: Yes
Protection Class (IP): IP20
Width in Division Units: 4
Installation Depth: 69 mm
Ambient Temperature During Operation: -25..55 °C
Degree of Pollution: 2
Connectable Conductor Cross-Section Multi-Wire: 0..25 mm²
Connectable Conductor Cross-Section Single-Wire: 25 mm²
Explosion Protected: No

Residual Current Devices (RCCBs) provide protection for persons and property as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. The F200 series residual current devices ensure protection against sinusoidal alternating currents and pulsating currents with a smooth direct fault current component of up to 6 mA to earth. They also provide fault protection (protection against indirect contact), additional protection (with I?n = 30 mA), and fire protection (with I?n = 300 mA). They comply with product standards IEC/EN 61008-1, 61008-2-1, 61543 (VDE 0664 10, 11, 30) and for F200 A up to 100 A UL 1053. Application areas include household, commercial, and industrial applications. The extensive range of accessories provides everything you need for your installation tasks. Numerous approvals make the F200 suitable for global use. F200 A Type A with neutral conductor connection on the left, without UL approval (N conductor on the left required or 3-phase network without N conductor).
