ABB Ground fault circuit interrupter

Delivered between Fri, 13.6. and Wed, 18.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

F200 Type B for smooth DC residual currents and operational safety, all-current sensitive, 10 ms short-time delayed, surge current resistant up to 3 kA (5 kA in selective version). Residual current circuit breakers (RCCBs) provide protection for persons and property as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. The F200 B series residual current circuit breakers ensure protection against earth faults for sinusoidal alternating currents, pulsating currents, and smooth DC residual currents. They also provide fault protection (protection against indirect contact), additional protection (with IΔn ≤ 30 mA), and fire protection (with I∆n ≤ 300 mA). They comply with product standards for Type A IEC/EN 61008-1, 61008-2-1, 61543 (VDE 0664 10, 11, 30) and Type B DIN EN 62423 (VDE 0664-40). Applications include household, commercial, or industrial use. The extensive range of accessories provides everything you need for your installation tasks. The Type B RCCBs are suitable for non-linear circuits that can generate residual currents with smooth DC residual currents and various (high/low) frequencies. These components are found in electronic devices such as frequency converters. The Type B RCCBs have a frequency range of 0...2 kHz for detecting residual current and offer high system availability.

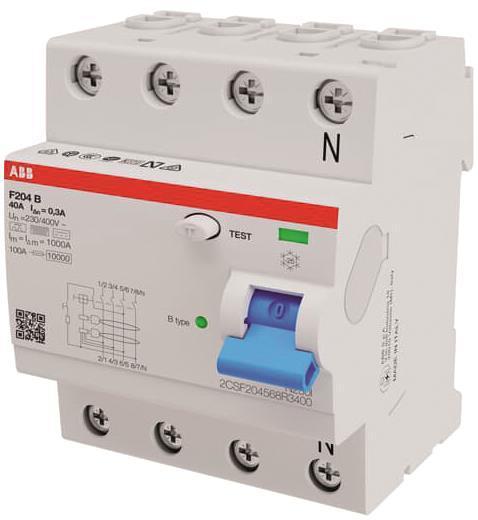

Type: F204 B-40/0.3

F200 B Type Residual Current Circuit Breaker.

Key specifications

Circuit breaker type
Residual current protection block
Length
100 mm
Width
4 mm
mounting style
Top-hat rail
number of poles
4
Item number
20030160

General information

Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
2CSF204568R3400
Release date
16.3.2022

Circuit Breaker Features

Circuit breaker type
Residual current protection block
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
B
Rated current
40 A
Rated current
0.3 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
440 V
Residual current (rated differential current)
0.30 A
Protection type (IP code)
IP20

Origin

Country of origin
Italy

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
100 mm
Width
4 mm
Height
90 mm
Weight
420 g

Package dimensions

Length
9.50 cm
Width
8.30 cm
Height
8.30 cm
Weight
407 g
