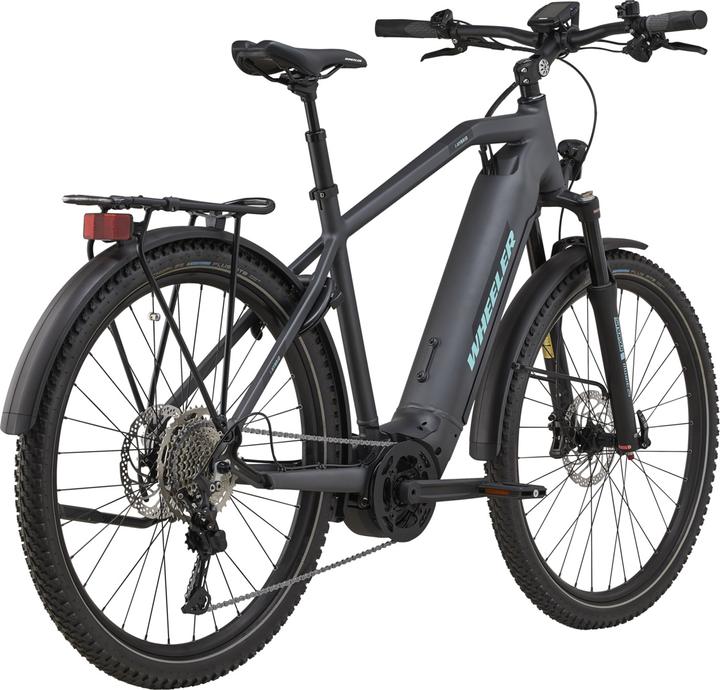

The trekking bikes in the i-HYBRID series are equipped with Yamaha's powerful PW-X2 electric motor from the MTB segment. The 80 Newton metres of torque are ideal for sporty riders. The 600 Wh battery is elegantly integrated into the down tube and provides a range of up to 150 kilometres, making the bike suitable for daily commuting to work and multi-day bike tours. The large C display is ideal for smartphone connectivity and is compatible with the Komoot app. Thanks to the robust 27.5-inch wheels, manoeuvrable handling is guaranteed.
Number of gears | 10 x |
Braking system | Hydraulic |
Weight | 25 kg |
E-bike type | E-Citybike |
Item number | 25288478 |
Manufacturer | Wheeler |
Category | Electric bikes |
Manufacturer no. | 101-002-2026-311-L |
Release date | 17.4.2023 |
Colour | Black |
Exact colour description | Black-light green |
Target group | Women |
E-bike type | E-Citybike |
Max. load | 150 kg |
Number of gears | 10 x |
Model year | 2022 |
Motor position | Mid-engine |
Electric motor brand | Yamaha |
Electric motor model | PW-X 2 SERIES |
Power | 250 W |
Max. range | 150 km |
Pedal assistance | Up to 25 km/h |
Battery category | Device batteries |
Battery size | Device specific |
Capacity | 16.20 Ah |
Voltage | 37 V |
Items per sales unit | 1 x |
Frame size e-bike | 180-189 cm = L |
Frame size | L |
Frame material | Aluminium |
Fork model | 100mm TRAVEL, 15x100mm AXLE, lockout, SUNTOUR MOBIE 25 AIR 27.5" |
Stem model | 31.8mm clamp, 40-20°ANGLE, Wheeler AS-08 OS |
Handlebar model | 15mm rise, 31.8 mm, 700mm, 9°ANGLE, Wheeler HB-RB11 Rizer Bar |
Seatpost model | 30.9mm, PROMAX SP-877, SUSPENSION. 40mm TRAVEL |
Saddle model | WHEELER VL-3533 |
Suspension fork model | SUNTOUR MOBIE 25 AIR |
Suspension travel suspension fork | 100 mm |
Gearshift model | Shimano Deore SL-M4100-IR |
Rear derailleur model | 10-speed, SHIMANO DEORE RD-M5120 SGS SHADOW PLUS DESIGN |
Drive type | Derailleur gears |
Crank model | 38 TEETH, CHAIN GUARD, FSA CK-320/ISIS |
Cassette model | 11-46T, SHIMANO CS-M4100, Sram 10 Speed |
Chain model | KMC E10S EPT |
Crankset model | Chainring with 38 teeth, FSA CK-320/ISIS |
Pedal model | INLEAD GRIP TREAD, VP 831 |
Braking system | Hydraulic |
Brake model | 4-PISTON HYDRAULIC DISC BRAKE, F:180mm, R:180mm ROTORS, RESIN PADS, Shimano BR-MT420 Disc |
Wheel diameter | 27.50" |
Hub Model | 32 HOLES, QR, Shimano FH-M3050 |
Tire model | K-GUARD 27.5x2.25", Schwalbe Marathon Plus, SmartGuard |
Taillight model | B&M Shine Evo, Bush & Miller, Integrated in Carrier |
Country of origin | Taiwan |
CO₂-Emission | |
Climate contribution |
Weight | 25 kg |
Length | 170 cm |
Width | 20 cm |
Height | 115 cm |
Weight | 30 kg |
