Sprenger Swivel fork/fork pin

Bolt diameter in mm: 13

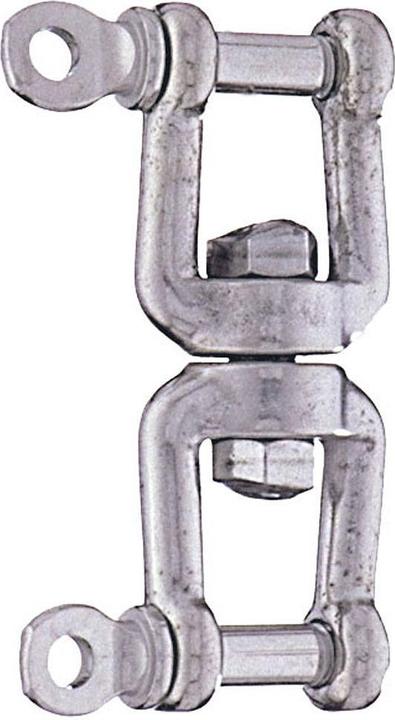

Swivel with fork bolt

This high-quality swivel impresses with its robust construction and the use of stainless steel, making it particularly resistant to corrosion. It is ideally suited for maritime applications where a reliable and durable connection is required.

• Material: Stainless steel (AISI 316, cast)
• 360° rotatable: Yes
• Various sizes available:

Available variants:

Item No. 46459
Breaking load: 1,300 kg
Bolt diameter: 6 mm
B1 (Width inside / Opening): 12 mm
L1 (Length outside): 66 mm

Item No. 46460
Breaking load: 2,500 kg
Bolt diameter: 8 mm
B1 (Width inside / Opening): 16 mm
L1 (Length outside): 94 mm

Item No. 46456
Breaking load: 3,500 kg
Bolt diameter: 10 mm
B1 (Width inside / Opening): 20 mm
L1 (Length outside): 118 mm

Item No. 46457
Breaking load: 6,000 kg
Bolt diameter: 13 mm
B1 (Width inside / Opening): 26 mm
L1 (Length outside): 152 mm

Thanks to precise workmanship, the swivel allows for a secure connection and easy handling. It is the perfect choice for demanding applications where flexibility and stability are crucial.

The thoughtful design ensures an optimal combination of functionality and durability – ideal for those who prioritize quality and reliability.
