Itiwit pehp100 307564

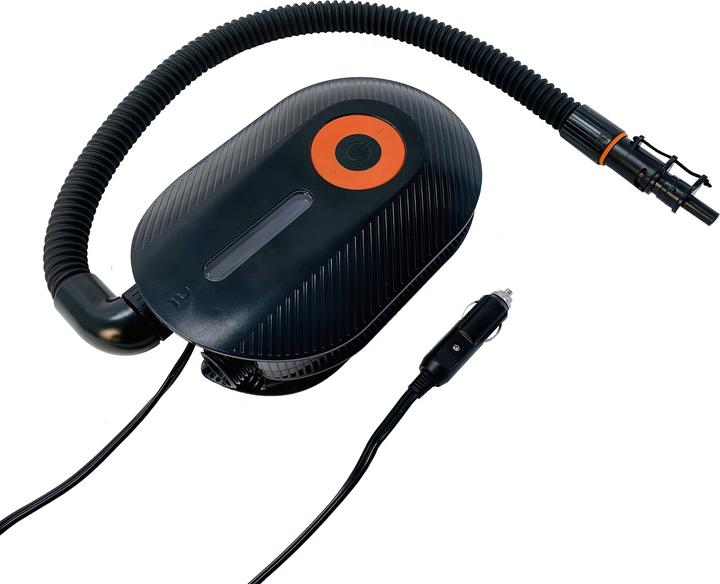

This electric 20psi pump can be easily connected to the cigarette lighter to effortlessly inflate your SUP or kayak.

The time required to inflate a 10-foot SUP is 9 minutes. The noise level is 95 dBA. This electric pump is suitable for the 12V connection in the vehicle with the engine running (13.8V-10A) and can inflate stand-up paddle boards, kayaks, tents, and more up to a pressure of 20 PSI (1.37 bar).

Instructions:
1. Connect the pump to the cigarette lighter while the car engine is running.
2. Attach the pump hose to the boat.
3. Select the pressure unit: psi/bar.
4. Set the desired pressure using the +/– buttons.
5. Press "POWER" to start the pumping process. The pump will automatically stop once the set pressure is reached.

The target pressure can be set from 0.1 PSI (0.01 bar) to 20 PSI (1.37 bar). First, the volume builds up to 0.4 PSI, followed by pressure buildup to 20 PSI.

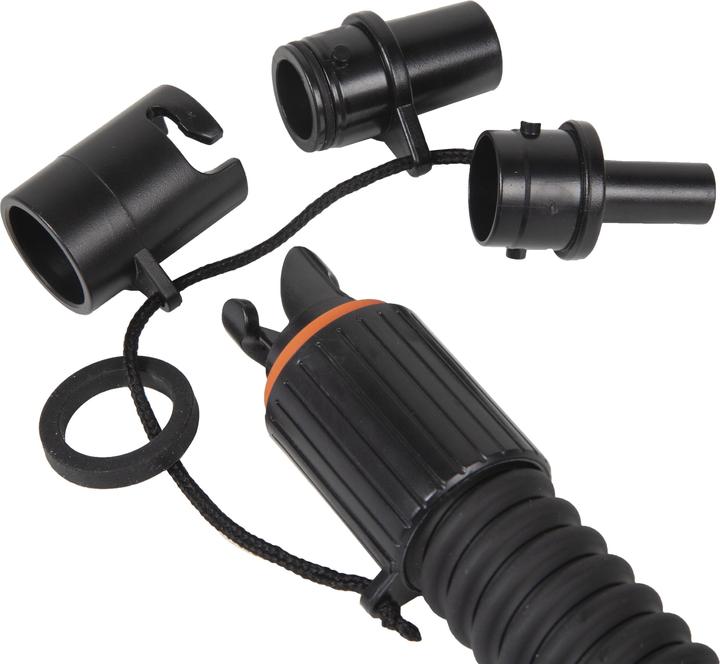

In addition to the standard nozzle for high-pressure inflation of SUPs and kayaks, the pump comes with a "mini boston" nozzle for inflating kayak seats and a "boston" nozzle for inflating low-pressure kayaks, sleeping pads, and inflatable tents. It also includes adapters and nozzles for inflating specific kitesurfing sails.

Dimensions: Length 28.5 cm, Width 19 cm, Height 9 cm, Weight 1.6 kg.

For deflating:
1. Connect the pump to the cigarette lighter.
2. Attach the hose to the "DEFLATE" outlet of the pump and connect it to the valve of your boat.
3. Select the pressure unit: psi/bar.
4. Press the (-) button until the display shows "DEFLATE."
5. Press the "POWER" logo to start deflating.
6. To stop, press "POWER" or wait for the cycle to complete in 120 seconds.

The pump operates in the 12V socket (cigarette lighter) of your vehicle with the engine running (13.8 volts) and is compatible with a 10A fuse. It generates a pressure of up to 20 PSI (1.37 bar).
