Eberle Controls EBERLE UTE 2100-RAL1013-G-5

Eberle Controls flush-mounted room controller 5-30°C AC230V UTE 2100-RAL1013-G55

Manufacturer: Eberle Controls
Designation: Flush-mounted room controller 5-30°C AC230V
Output Triac Type: UTE 2100-RAL1013-G55
Control type On/Off: No
Control type modulating: Yes
Communication protocol: Other
Type of power supply: 230 V
Connection: Three/four-wire
With receiver: No
Measuring range: 5-30 °C
External sensor: No
Control characteristic: Other
Suitable for heating: Yes
Number of outputs heating: 1
Suitable for cooling: No
Differential adjustable: No
Selector switch for heating and hot water with heating: No
Version of sensor/sensor: Resistance sensor
Temperature readable: No
Relative humidity readable: No
With display: No
Operation: Rotary
Contact version: No contact
Max. voltage of contacts: 230 V
Voltage of contacts: 230 V
Protection class (IP): IP30
Explosion-proof: No
Colour: Polar white glossy
RAL number: 1013
Width: 55 mm
Depth: 17 mm
Height: 55 mm
Class of temperature controller: IV
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Eberle Controls UP room controller 5-30°C AC230V UTE 2100-RAL1013-G55: more details

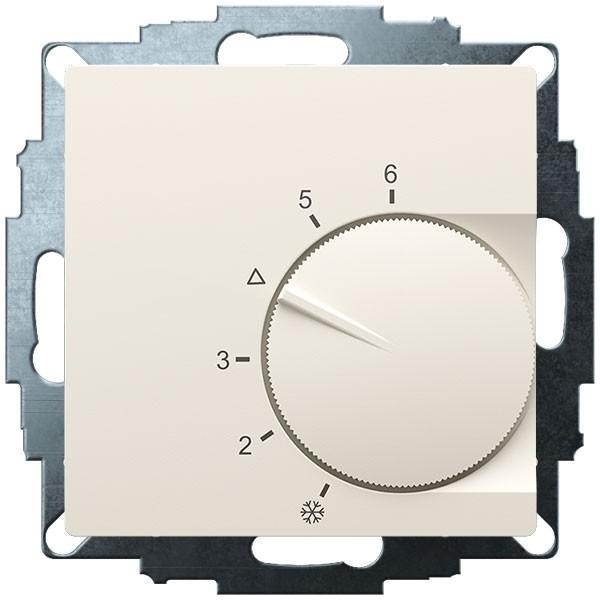

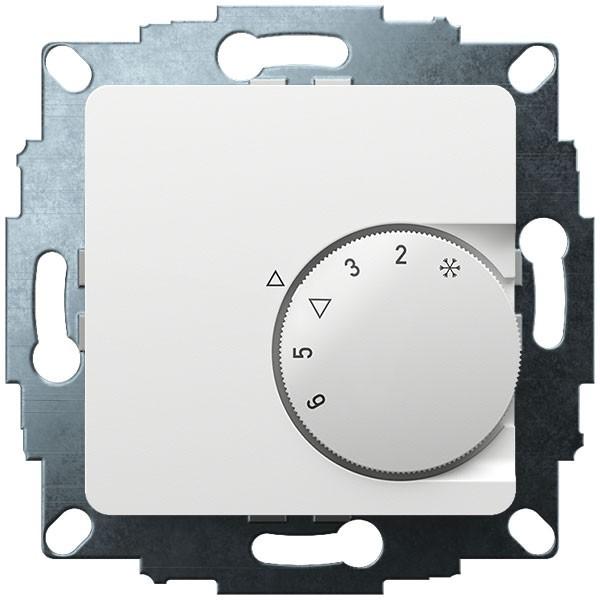

Electronic flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices, and hotels. Suitable for all common switch ranges. Cream white glossy, 55x55 cover with knob. Suitable for water-guided heating systems. Completely noiseless due to the use of a triac switch, unlike relays or bimetal. Switchable for actuators de-energised open or de-energised closed, therefore usable for heating or cooling. Adjustable range restriction in the setting knob as a heating cost brake. A captive screw with threaded insert for fastening the housing cover as well as practical plug-in terminals facilitate installation. Mounting in 55 mm flush-mounted box.
EAN: 4017254167195.
