Eberle Controls Eberle UTE 1012-RAL9010-M-55 Flush-mounted room thermostat 5 to 30°C

Eberle Controls UP Room Controller 5-30C AC24V UTE 1012-RAL9010-M55

Manufacturer: Eberle Controls
Designation: UP Room Controller 5-30C AC24V
Type of opener: UTE 1012-RAL9010-M55
On/Off control type: yes
Modulating control type: yes
Communication protocol: other
Type of power supply: 24 V
Connection: other
With receiver: no
Measuring range: 5..30 °C
External sensor: no
With thermal feedback: yes
Control characteristic: other
Suitable for heating: yes
Number of heating outputs: 1
Suitable for cooling: no
Differential value: 0.5 K
Adjustable differential: no
Switch for heating and hot water with heating: no
Sensor/Probe design: Bimetal
Temperature readable: no
Relative humidity readable: no
With display: no
Operation: Rotary
Contact design: Normally Closed (NC)
Max. contact voltage: 24 V
Max. contact load: 10 A
Protection class (IP): IP30
Explosion-proof: no
Color: white
RAL number: 9010

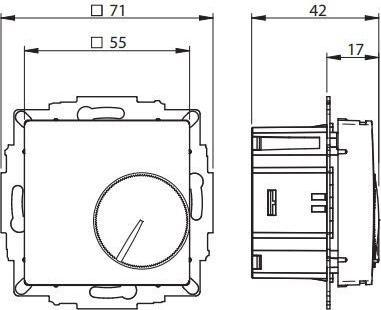

Width: 55 mm
Depth: 16 mm
Height: 55 mm
Class of temperature controller: I
Power consumption in standby mode: 0 W
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Eberle Controls UP Room Controller 5-30C AC24V UTE 1012-RAL9010-M55: additional details

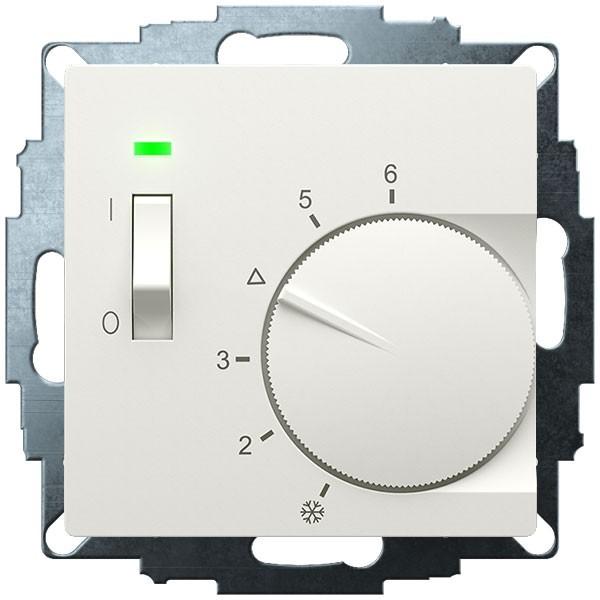

Electromechanical flush-mounted room temperature controller for regulating or monitoring temperatures in living spaces, offices, and hotels. Fits into all common switch programs. Matte polar white, 55x55 cover with knob. Suitable for water-based and electric heating systems. The thermal feedback achieves a very small switching differential. When connecting to the clock terminal, the temperature is regulated to approximately 4 K lower. With LED status indicators. Adjustable range limitation in the adjustment knob serves as a heating cost brake. A non-removable screw with a threaded insert for securing the housing cover, along with practical plug terminals, facilitates installation. Mounting in a 55 mm flush-mounted box.
