Berker 20291606

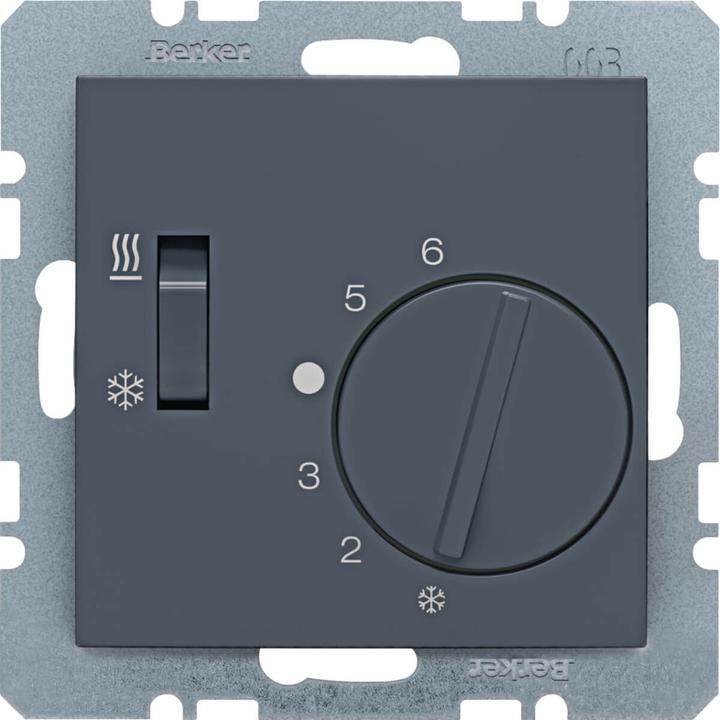

Berker room thermostat 20291606
Manufacturer: Berker
Designation: Room thermostat S.x/B.x, anthracite
Type: 20291606
Version: On/Off
Type of power supply: 230 V AC
Measuring range: 5...30 °C
Thermal feedback: Series
Control characteristics: Other
Suitable for heating: No
Number of outputs heating: 1
Suitable for cooling: No
Number of outputs cooling: 1
Differential value: 0.5 K
Differential adjustable: No
Temperature readable: No
Type of sensor: Resistance sensor
Mounting type: Flush-mounted
With display: No
Operation: Rotary
Contact type: Change-over contact (NO/NC)
Max. contact load: 10 A
Protection class: 10 A
Protection class (IP): IP20
Explosion-proof: No
Colour: Anthracite
RAL number: 7021
Height: 71 mm
Width: 71 mm
Depth: 50 mm
Diameter: 0 mm
Class of the temperature controller: I

Berker room temperature controller 20291606: further details
Temperature controller, change-over contact with switch heating/cooling, S.1/B.3/B.7, anthracite mounting. Temperature controller with centre plate, rocker switch, imprint, control knob with temperature range limiter, adjustable temperature control range, temperature measurement via internal temperature sensor. For heating or cooling operation, e.g. for actuators normally closed, with thermal feedback, without spreading claws, with plug-in terminals. When the set temperature is reached, the contact changes. Note: Neutral conductor required! Suitable for systems with heat pump.
