ALRE RTBSB-001.026

Alre-it Room Temperature Controller AP RTBSB-001.026

Manufacturer: Alre-it
Designation: Room Temperature Controller AP
Type: RTBSB-001.026
Design: On/Off
Power Supply Type: 230 V AC
Connection: Other
With Receiver: No
Measuring Range: 5..30 °C
External Sensor: No
Thermal Feedback: Parallel
Control Characteristic: P
Suitable for Heating: Yes
Number of Heating Outputs: 1
Suitable for Cooling: Yes
Number of Cooling Outputs: 1
Differential Value: 0.5 K
Adjustable Differential: No
Temperature Readable: No
Sensor/Probe Design: Bimetal
Mounting Type: Surface-mounted
With Display: No
Operation: Rotary
Concealed Operation: No
With Drinking Water Circuit: No

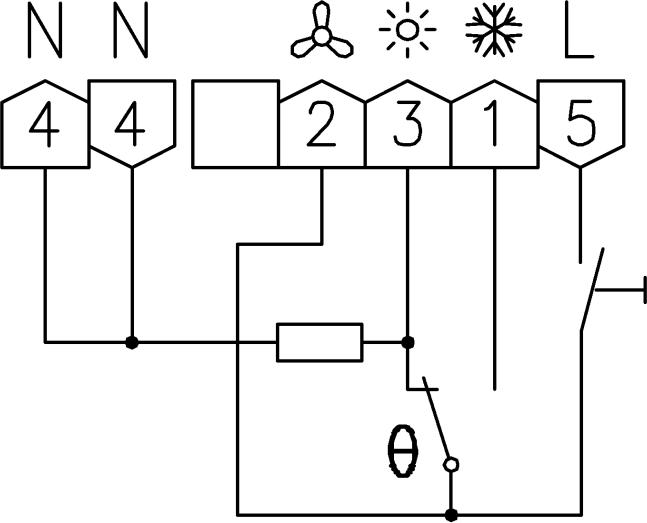

Contact Type: Changeover (NO/NC)
Max. Voltage of Contacts: 230 V
Max. Contact Load: 10 A
Protection Class (IP): IP30
Explosion-proof: No
Color: Pure White
RAL Number: 9010
Height: 78.3 mm
Width: 78.3 mm
Depth: 25.5 mm
Class of Temperature Controller: I

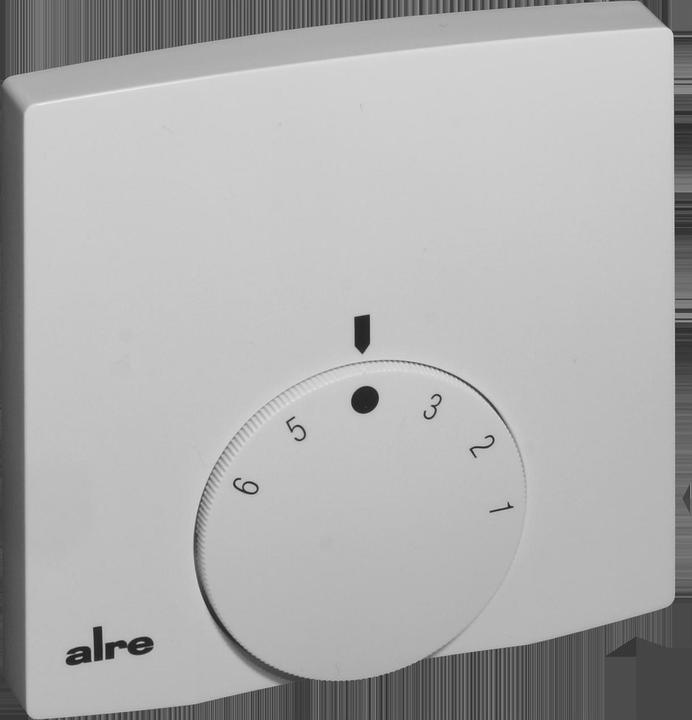

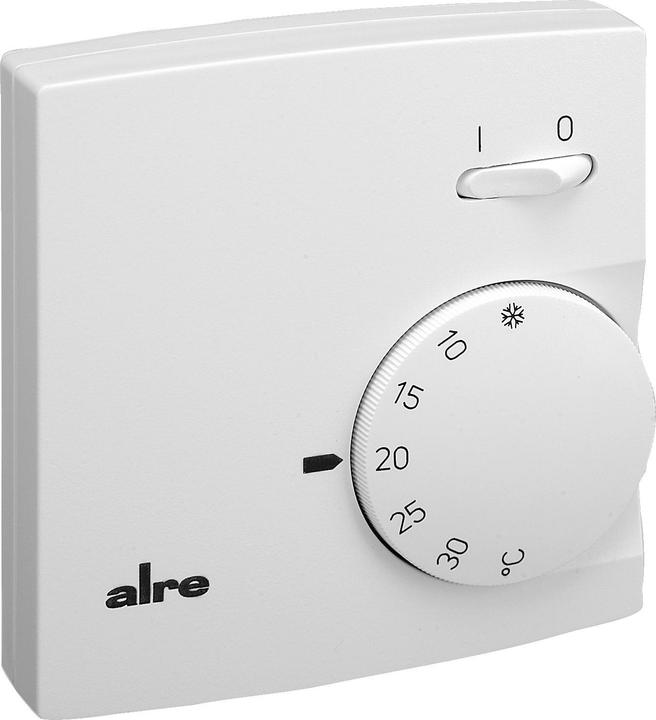

The Alre-it Room Temperature Controller AP RTBSB-001.026 is an electromechanical room temperature controller in a surface-mounted housing designed for regulating or monitoring temperatures in offices, living spaces, and hotels. It is suitable for all types of heating systems. The thermal feedback allows for a very precise switching differential. The range limitation located under the adjustment knob can modify the adjustment range. The device features an On/Off switch. The fan output is permanently connected to 230 VAC when the device is turned on.
