ALRE Room temperature controller

Alre-it Room Temperature Controller AP RTBSB-201.065/02

Manufacturer: Alre-it
Designation: Room Temperature Controller AP
Type: RTBSB-201.065/02
Design: On/Off
Power Supply Type: 230 V AC
Connection: three-/four-wire
With Receiver: no
Measuring Range: 5..30 °C
External Sensor: no
Thermal Feedback: parallel
Control Characteristic: P
Suitable for Heating: yes
Number of Heating Outputs: 1
Suitable for Cooling: yes
Number of Cooling Outputs: 1
Differential Value: 0.5 K
Adjustable Differential: no
Temperature Readable: no
With Noise Level Indicator: no
Sensor/Probe Design: Bimetal
Mounting Type: Surface-mounted
With Display: no
Operation: Rotary
Concealed Operation: no
With Drinking Water Circuit: no
Contact Type: Changeover (NO/NC)
Max. Voltage of Contacts: 230 V
Max. Contact Load: 2 A
Protection Class (IP): IP30
Explosion-proof: no
Color: white
RAL Number: 9010
Height: 78 mm
Width: 78.5 mm
Depth: 13.9 mm
Class of Temperature Controller: I

Alre-it Room Temperature Controller AP RTBSB-201.065/02: further details

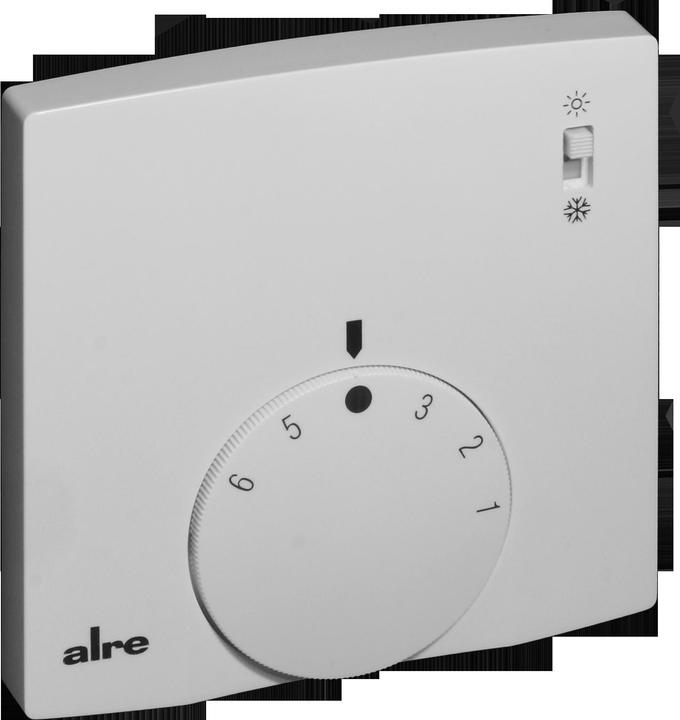

Electromechanical room temperature controller in a super-flat surface-mounted housing (only 13.9 mm deep) for regulating or monitoring temperatures in offices, living spaces, and hotels. The thermal feedback achieves a very precise switching differential. The range limitation located under the adjustment knob allows for modification of the adjustment range. The device is mounted using surface or wall mounting (4-hole fastening on a flush-mounted box). Suitable for 2-pipe systems, especially heat pumps. The heating/cooling switching is done with a switch on the device.
