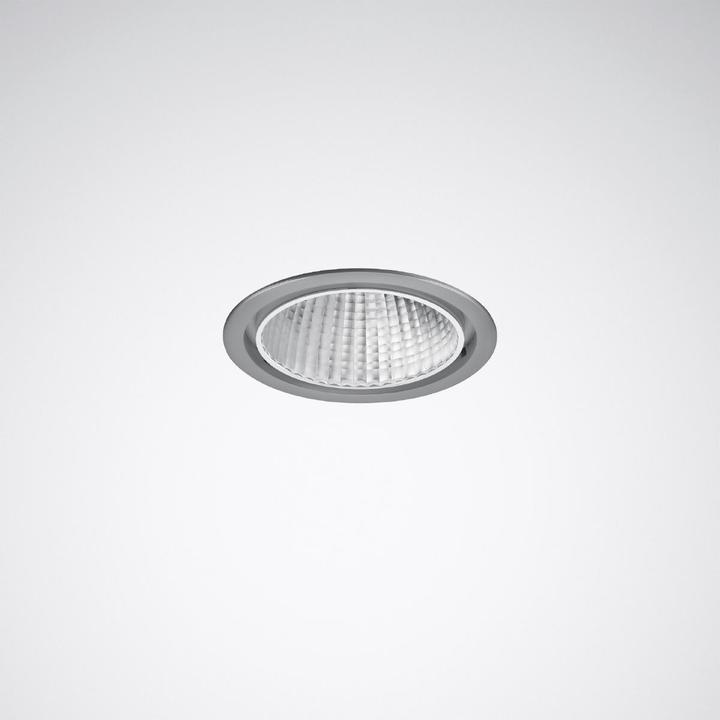

Trilux EB Downlight Inperla C05 #6354840

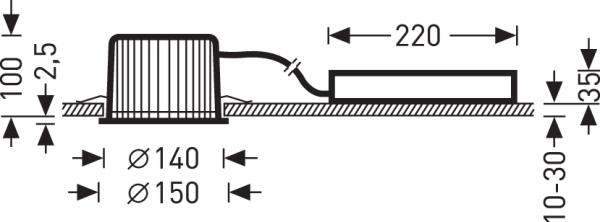

Compact LED downlight in a round design. Recessed downlight for cut ceiling openings, can be installed in cast concrete ceilings using accessories. Tool-free ceiling installation with quick-mount springs. Visually and technically coordinated renovation plates for larger ceiling cutouts are available as accessories in various designs. Ceiling cutout Ø 140 mm, installation depth 100 mm. When combined with a closed decorative cover, protection class IP54 is achieved on the room side. Reflector made of anodized aluminum, faceted. Equipped with an LED spotlight module. Rated luminous flux 1000 lm, rated power 9.50 W, luminous efficacy of the luminaire 105 lm/W. Light color neutral white, color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average rated lifespan L80(tq 25 °C) = 70,000 h, average rated lifespan L85(tq 25 °C) = 50,000 h. The light source is replaceable according to eco-design requirements. Luminaire body made of aluminum die-cast. Surface coated in silver gray (RAL 9006). External dimensions of the ceiling ring Ø 150 mm, luminaire height 103 mm. The luminaire and heat sink form a compact unit. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): II, protection rating (DIN EN 60529): IP20, impact resistance rating according to IEC 62262: IK06, test temperature for glow wire test according to IEC 60695-2-11: 650 °C. Weight: 1.3 kg. With electronic control gear, switchable. The control gear is replaceable according to eco-design requirements. With 3-pole terminal block up to 2.5 mm² for mains connection and network forwarding. The product meets the basic requirements of applicable EU directives and the Product Safety Act and bears the CE marking. Additionally, the luminaire is ENEC certified by an independent testing body.
