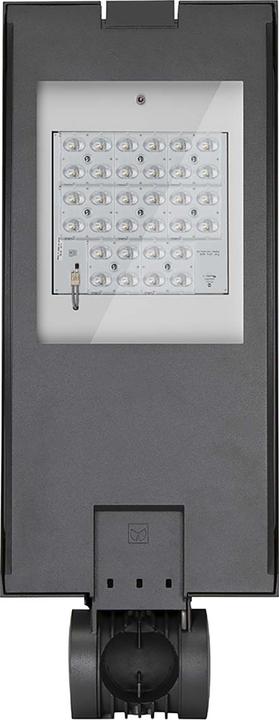

PiL KYRO+

LED street lights, in two versions: Housing and cover made of painted die-cast aluminium with polyester powder coating, after prior chemical conversion. Diffuser made of extra-clear tempered flat safety glass. Optics made of technopolymer lenses with increased light transmission. Depending on the model, the following optics are available: SR/T1 for narrow roads and with a B/H ratio (road width / mast height) of up to 0.75 SR/T2 for two-lane roads with a B/H ratio of 1 SR/T1.ratio B/H of 1 SR/T3 for wide roads with a ratio B/H of 1.25 SR/T4 for wide roads with a ratio B/H equal to 1.5. Aluminium heat sink. Gasket made of durable silicone with increased resilience. Terminal strip ensures automatic interruption of the power supply when the luminaire housing is opened. M25x1.5 gland for cables with D= 9-14 mm. Powerful electronic ballast. Complies with the UNI 10819 standard and regional laws on light pollution. Stainless steel external screws. Bracket housing the components made of technopolymer reinforced with glass fibre. Pole mounting bracket in painted die-cast aluminium. The KYRO+ 1 versions are suitable for mounting on poles with D=42-60/62 mm, the KYRO+ 1-D76 versions on poles with D= 76 mm and the KYRO+ 2 versions on poles with D= 60/62-76 mm. Component supports can be replaced without tools. Complete with additional protective device against mains overvoltages up to 10 kV (DM). SECURE LIGHT DISTRIBUTION system that guarantees uniform light distribution even if an LED is defective. Versions with automatic power reduction are available. Versions with ON-OFF driver and dimmable DALI are available. The DALI version is supplied complete with 1 metre of H07RN-F 2x 1.5qmm cable and an IP66 connector made of polyamide with silver-plated brass contacts for cables D= 9-14 mm. This enables connection to the mains supply without having to open the luminaire body. All versions are available with 3000 K LED on request. Other colour temperatures and shades on request.
