Philips Maxos Industry coupling 10809100 inside

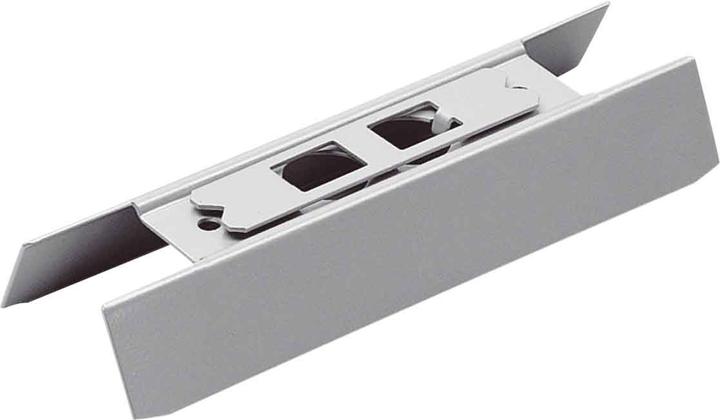

Philips Lighting Internal Coupling 9MX056 CPI

Manufacturer: Philips Lighting
Description: Internal coupling
Type: 9MX056 CPI
Accessory/Replacement part type: Internal coupling for ceiling mounting
Accessory: yes
Replacement part: no
Transparent: no
Color: other
Material: Steel
Length: 66 mm
Width: 200 mm
Height: 31 mm

The swivel device is a versatile connector that allows Maxos TL-D and TL5 light strips to be connected at any angle (minimum 45°). Due to its attractive design, it is frequently used in shops, schools, and museums. Up to four light strips can be connected to a swivel device. The housing is made of white or silver-coated plastic, while the internal support elements are made of steel. If needed, light control sensors, speakers, etc., can also be attached to the device. It comes with a pre-assembled adjustable bracket and a 1.25-meter long cable suspension. The connection to the mounting rail is made via a special coupling piece (9MX056 CP-SD WH/SI) for each rail section. Electrical components for conducting the power supply must be ordered separately as needed.
