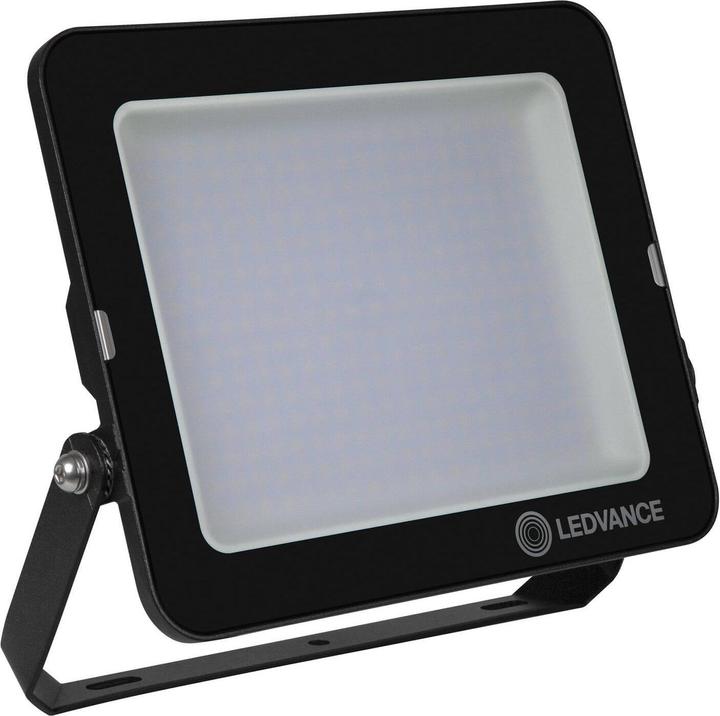

Ledvance FL COMP V 135W 865 S

13500 lm, IP65
Delivered between Fri, 20.6. and Fri, 11.7.

Product details

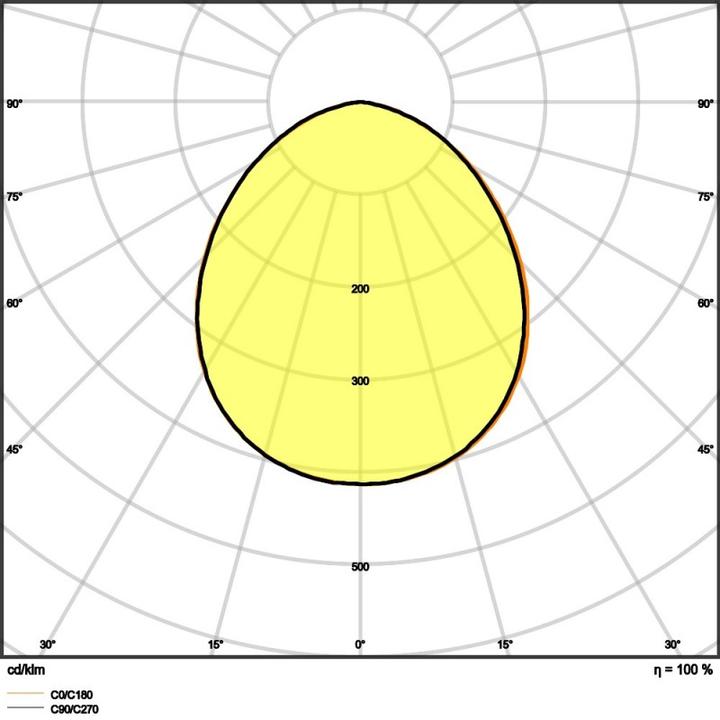

Floodlight with up to 13,500 lm luminous flux. Product features: reflector-based, symmetrical light distribution with a 100° x 100° beam angle. Surge protection: up to 4 kV (L/N-PE), 2 kV (L-N). Mounting bracket with a 30° angle and a large rotation range. Pre-installed flexible cable (H05RN-F) with a length of 1 m, crimped 3 x 1.0 mm². Climate membrane for optimized air exchange while maintaining a consistently high IP protection rating. Product advantages: robust yet lightweight and compact design. Safe and very uniform illumination thanks to the opal, tempered glass diffuser. No light emission in the upper hemisphere (ULOR 0%) at 0° tilt. Energy savings of up to 90% compared to halogen lamp floodlights. Areas of application: replacement for floodlights with halogen lamps. Outdoor use (IP65). Public spaces. Illumination of facades. Gardens, balconies, and other outdoor areas. Construction sites. Safety notes: Max. wind load area 0.061 m². All electrical connections must be made by qualified personnel only. The flexible outdoor cable of this luminaire cannot be replaced; if the cable is damaged, the luminaire must be disposed of. Connection terminal not included. Installation must be carried out by qualified personnel only. Caution, risk of electric shock. Product of protection class I. All electrically conductive, metallic housing parts that may become live during operation or maintenance in case of a fault must be continuously connected to the protective conductor.

Key specifications

Outdoor lighting type
Facade floodlights
Power supply
Electrical connection
Additional functions
Motion sensor
Width
30.50 cm
Height
4.80 cm
Application range
Outdoor
Exact colour description
Daylight White
Item number
31294073

General information

Manufacturer
Ledvance
Category
Outdoor wall lamp
Manufacturer no.
4058075575141
Release date
22.9.2022

Colour

Colour
Black
Exact colour description
Daylight White

Material

Material group
Metal

Application range

Application range
Outdoor

Lamp properties

Outdoor lighting type
Facade floodlights
Dimmability
Not dimmable
Dimmer control
integrated controller
Additional functions
Motion sensor
Adjustability
Pivoting

Bulb properties

Scope of illuminant
incl. fixed light bulb
Bulb type
LED light
Luminous flux
13500 lm
Light colour
Daylight
Colour temperature
6500 K
Colour rendering index
80
Shielding angle
100°
Lamp service life
50000 h
Number of lights
1 x
Number of circuits
100000
Max. power per lamp
135 W

Smart home features

Smart Home
Not compatible

Power supply

Power supply
Electrical connection
Output voltage
240 V

Safety

Protection type (IP code)
IP65
Protection class
Protection class I

Scope of delivery

Items per sales unit
1 x
Scope of delivery
BlackLED floodlight 865

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

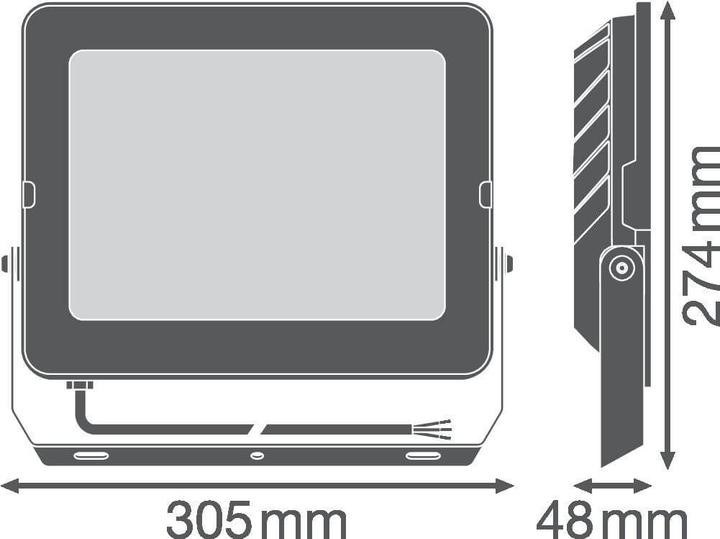

Product dimensions

Length
27.40 cm
Width
30.50 cm
Height
4.80 cm
Weight
2210 g
