Ledvance 4058075236585

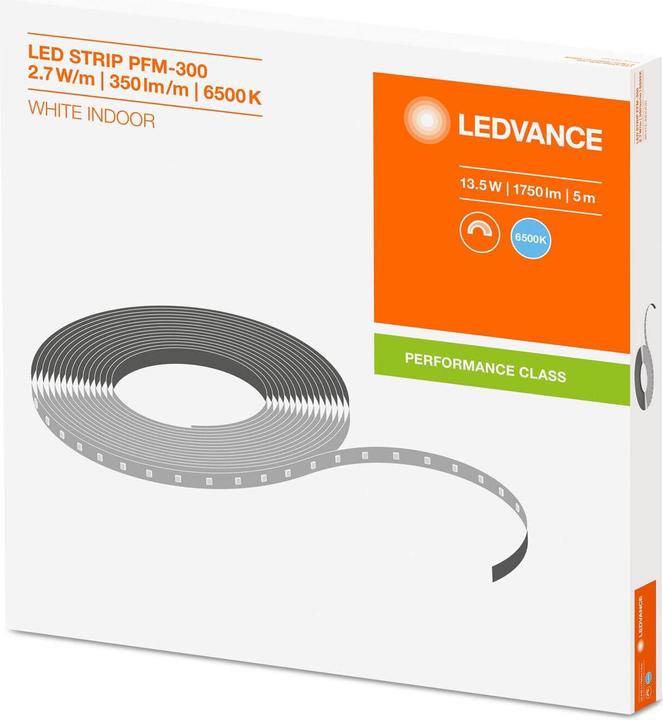

LEDVANCE LED-Stripe LS PFM-300/865/5

Manufacturer: LEDVANCE
Designation: LED-Stripe 5m, 6500K
Type: LS PFM-300/865/5
Design: Strip
Mounting type: Surface-mounted
Light source: LED (not replaceable)
Number of light sources per metre: 70
Number of light sources per foot: 21
Lamp wattage per metre: 2.7 W
Luminous flux per metre: 350 lm
Voltage type: DC
Lamp voltage: 24 V
Beam angle: 120°
Control gear: Not required
Rated service life L70/B50 at 25°C: 35,000 h
Protection class (IP): IP00
Protection class (NEMA): 1
Max. system power: 13 W
Light colour: White
Colour temperature: 6500 K
Colour rendering index CRI: 80-89
Width: 8 mm
Height/depth: 1.4 mm
Length: 5000 mm
Smallest bending radius: 25 mm
Length of individual sections: 14.3 mm
With end piece: No
With connection set: No
With protective cover: No
Self-adhesive: Yes
Type of wiring: With through-wiring
Number of poles: 2
Conductor cross-section: 0.5 mm²
Connection type: Other

High-performance LED strips with 300 lm/m for demanding applications.

Product features:

• Flexible and divisible LED strip.
• Smallest divisible unit: 100 mm.
• Service life (L70/B50): up to 35,000 h at Tc max.: 75°C.
• Luminous flux: 300 lm/m.
• Colour rendering index Ra: > 80.
• Initial colour consistency: = 4 SDCM (threshold value unit).
• Wide range of colour temperatures: from warm white to cool daylight.

Product advantages:

• Great design freedom thanks to long, flexible LED light strips.
• Simple installation, tool-free connection.
• Easy mounting on many smooth surfaces thanks to self-adhesive tape.
• Maximum flexibility thanks to large selection of accessories.
• Simple connection thanks to integrated cables on both sides.

Areas of application:

• General interior lighting.
• Industry.
• Offices, sales and conference rooms.
• Architectural lighting.
• Decorative lighting.

Technical features:

• Connections, profiles and covers available for various mounting options.

EAN: 4058075236585.
