Best selling Development boards + Kits from WaveShare
On this page you'll find a ranking of the best WaveShare products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. WaveShare Industrieller USB zu RS485 Konverter
This is an industrial USB to RS485 converter from Waveshare with an original FT232RL chip. The USB to RS485 converter is very easy to use, allowing automatic sending and receiving of data via RS485. With this RS485 adapter, you can control Arduinos via a PC that are connected via RS485. The installation is very simple; first, install the drivers for the FT232R, and then you can select the serial USB port and send data to the RS485 via a serial console.
Features:
- USB to RS485 communication
- Original FT232RL
- Onboard TVS (Transient Voltage Suppressor) for voltage pulse protection
- Self-resetting fuse and protection diodes
- 3 LEDs to indicate operating states such as transmit, receive, and operating voltage
Technical details:
- Built-in RS485 chip: FT232RL
- Baud rate: 300-921600bps
- Host port: USB
- Device port: RS485
- USB:
- Operating voltage: 5V
- Connector: USB-A
- Protection: 200mA self-resetting fuse, ESD protection
- Transmission range: about 5m
- RS485:
- Connection: Screw terminal
- Pins: A+, B-, GND
- Transmit/receive: automatic hardware control
- Protection: 600W against lightning and overvoltage, 15KV ESD protection (integrated 120R balancing resistor)
- Transmission distance: about 1200m (low baud rate)
- Transmission mode: point-to-multipoint (up to 32 nodes, use of repeaters is recommended for 16 nodes or more)
- LED indicators:
- PWR: Red power indicator, lights up when USB connection is established and voltage is detected.
- TXD: TX indicator LED, lights up when the USB port is sending data.
- RXD: RX indicator LED, lights up when the device ports are sending data back.
- Ambient conditions:
- Temperature: -15°C to +70°C
- Humidity: 5%RH to 95%RH
- Operating system: Mac, Linux, Android, WinCE, Windows 10/8.1/8/7/XP
- Dimension: 75 x 24 x 15mm
- Weight: 88.3g
Scope of delivery:
- 1x Industrial USB to RS485 converter
- 1x 1.2m USB extension cable.
2. WaveShare 10.1inch DSI Capacitive Touch Display, 800×1280
With the 10.1 inch DSI Capacitive Touch Display from Waveshare, you can take your project to the next level. The display features an impressive resolution of 800×1280 pixels and stands out with its brilliant color representation thanks to IPS technology. The Optical Bonding technology provides an exceptionally clear display and greater robustness against environmental influences. The integrated capacitive touch function allows for smooth and precise operation with up to ten fingers simultaneously. This display has been specifically designed for use with the Raspberry Pi via the DSI interface, enabling easy integration. It comes with a durable Toughened Glass Panel, making it ideal for demanding applications. The low latency in touch recognition ensures a responsive user experience. An energy-efficient backlight allows you to benefit from a long operating time even with extended use. Whether for industrial controls, multimedia applications, or DIY projects – this display is versatile and will impress you with its quality.
Recommended Accessories:
Raspberry Pi Board
Technical Specifications:
Manufacturer: Waveshare
Manufacturer SKU: 30052
Display Type: IPS Panel with Optical Bonding
Size: 10.1 inches
Resolution: 800×1280 pixels
Viewing Angle: 178 degrees
Refresh Rate: 60Hz
Touch Technology: Capacitive, 10-point multitouch
Interface: DSI
Backlight: LED
Power Consumption: approx. 4.8W
Connection: DSI 22 Pin
Operating Temperature: 0°C to 70°C
Material: Glass and Aluminum
Dimensions: 239 x 147 x 12mm
Weight: 635g
Included in Delivery:
1x 10.1 inch DSI Capacitive Touch Display, 800×1280
1x FFC 22PIN Cable 20cm
1x Accessory Set (screws, spacers).
3. WaveShare POE USB-C splitter 5V/5A 25W IEEE 802.3af
The WaveShare POE USB-C Splitter 5V/5A 25W is a reliable solution for powering network-enabled devices such as the Raspberry Pi. Designed for industrial use, this splitter ensures stable performance through its integrated MPS control chip. It supports IEEE 802.3af/at-compliant Gigabit Ethernet connections, allowing for safe and efficient power transmission over the network cable. The robust aluminum housing not only provides excellent heat dissipation but also protects the device from external influences. With an output voltage of 5V, the splitter is ideal for devices that require a constant and reliable power source. Additionally, the isolated switching power supply protects connected devices from surges and other disturbances, enhancing the safety and longevity of the devices.
- MPS control chip for high efficiency and stable performance
- Supports Gigabit Ethernet with speeds up to 1 Gbit/s
- Compatible with IEEE 802.3af/at PoE standard for reliable power supply
- Isolated switching power supply protects against surges
- Robust metal housing for improved protection and heat dissipation.
4. WaveShare PCIe to M.2 SSD HAT+ with PoE for Raspberry Pi 5
The PCIe to M.2 SSD HAT+ with PoE for Raspberry Pi 5 is an innovative expansion that offers a powerful and compact solution for integrating M.2 SSDs and network connectivity. This HAT module allows for the use of Power over Ethernet (PoE), enabling both power supply and network connection through a single cable. It supports NVMe protocols, ensuring high read and write speeds, and accommodates M.2 SSDs in the 2230 and 2242 formats. Additionally, the module provides the capability to boot the Raspberry Pi directly from the SSD, enhancing flexibility and efficiency. An integrated active fan ensures optimal cooling, even under heavy use, thus guaranteeing stable and reliable performance. The board is specifically designed for the Raspberry Pi 5 and utilizes the 16-pin PCIe connector for smooth connectivity and high transfer rates. Furthermore, additional accessories can be connected via the 40-pin GPIO header.
- Supports IEEE 802.3af/at PoE standard for stable network connection and power supply through a single cable
- Compatible with Raspberry Pi 5, but not with older models like Pi 4B or Pi 3B+
- Enables direct boot from M.2 SSDs, reducing system startup times
- Integrated active fan for optimal cooling and stability during intensive use
- Supports M.2 SSDs in NVMe format for high data transfer rates.
5. WaveShare NodeMCU-32 ESP32 WiFi Bluetooth Development Board CP2102
This is the new version of the popular NodeMCU Dev Board from Waveshare. The module now features a more powerful ESP32, USB-C and the CP2102 USB to UART converter. The ESP32-based development board is ideal for beginners as well as advanced users with numerous application areas. It can be programmed conveniently via the USB port. Thanks to the compact design, the board can also be plugged directly onto a breadboard for fast and efficient prototyping.
Features:
ESP-Wroom-32 with Bluetooth and WiFi connectivity
Integrated CP2102 USB to UART converter
USB-C interface for power and programming
RST and BOOT buttons
Technical details:
Manufacturer: Waveshare
Manufacturer SKU: 16611
Input voltage: 5V
Logic voltage: 3.3V
MCU: ESP32
Flash: 32Mbit
Bluetooth: 4.2
WiFi protocol: 2.4GHz IEEE 802.11 b/g/n
Antenna: Onboard PCB antenna
Dimension: 52 x 26 x 13mm
Weight: 10g
Scope of delivery:
1x NodeMCU-32 ESP32 WiFi Bluetooth Development Board CP2102.
Development boards + Kits
CHF22.90
WaveShare NodeMCU-32 ESP32 WiFi Bluetooth Development Board CP2102
6. WaveShare Micro Servo 9G / SG90
The small, inexpensive micro servo is ideal for many applications. The servo can be operated with the Arduino Servo Library without any problems. If you want to operate several servos, there is also the Motor Shield or a Servo Driver with 16 channels.
Connections for SG90 Servo:
- Orange: PWM
- Red: 5VDC
- Brown: GND
Technical details:
- SG90 Weight: 9g
- Type: WS-SG90
- Torque: 2.0kg/cm (4.8V), 2.2kg/cm (6V)
- Speed: 0.09s/60° (4.8V), 0.08s/60° (6V)
- Dead band: 7us
- Gear: POM
- Operating voltage: 4.8V to 6V DC
- Dimension: 22.8 x 12.2 x 28.5 mm
- Weight: 10.5g
Scope of delivery:
- 1x Tower Pro Micro Servo 9G / SG90
- 2x mounting screws for servo
- 3x different servo arms
- 1x servo arm mounting screw.
7. WaveShare RS485 to Ethernet POE (B)
The RS485 to Ethernet converter from Waveshare is a perfect solution for connecting RS485 devices to an Ethernet network. The converter has an integrated web interface that allows easy configuration and monitoring of the devices. It also offers a high transmission speed and a reliable connection. It is a cost-effective and convenient solution for anyone who wants to connect RS485 devices to an Ethernet network.
Features:
Basic function: bi-directional transparent data transmission between RS485 and Ethernet.
PoE network connection, supports IEEE 802.3af standard
Isolation protection: Power isolation, signal isolation
Supports MQTT and JSON
Technical details:
Manufacturer: Waveshare
Manufacturer SKU: 23273
Product type: Serial server, Modbus gateway, MQTT gateway
Communication interface: RS485 port x 1, Ethernet port x 1
Power supply: 6 ~ 36V DC screw terminal, or PoE connector
Ethernet connection type: PoE network connection, supports IEEE 802.3af standard
Serial port: Isolated RS485
Serial baud rate: 300 ~ 115200 bps (bits per second)
Serial parity bits: none, odd, even, mark, space
Serial data bits: 5 ~ 9 bits
Serial stop bits: 1, 2
Serial flow control: none
Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration: Host, web browser, library with device management functions
Communication method: Direct TCP/IP communication, VCOM
Operating mode: TCP server, TCP client (coexistent with TCP server), UDP, UDP multicast
Operating temperature: -40°C to 85°C
Dimensions: 87 × 36 × 59mm
Weight: 115g
Scope of delivery
1x RS485 to Ethernet POE (B).
8. WaveShare Raspberry Pi 5 POE Power over Ethernet HAT (F)
Discover the ideal way to power and network your Raspberry Pi 5 all via a single cable. The Raspberry Pi 5 POE Power over Ethernet HAT (F) is a high-quality solution that supports the 802.3af/at networking standard and provides a robust, isolated power supply. This small HAT allows you to power your Raspberry Pi 5 efficiently while maintaining a stable network connection. Equipped with an onboard active cooling fan and a metal heat sink, this product ensures optimal heat dissipation and stable performance even during intensive operation. The standard 40-pin GPIO header from Raspberry Pi is also available, allowing additional HATs to be easily added. This device is specifically designed for the Raspberry Pi 5 and offers both 5V with up to 4.5A and 12V with up to 2A output power. Easy installation with included thermal pads and metal heatsink makes setup a breeze.
Recommended accessories:
- Ethernet cable
- Raspberry Pi 5
Features:
- Supports the 802.3af/at network standard.
- Provides isolated power supply with efficient heat dissipation.
- Includes an active cooling fan and metal heatsink.
- Standard 40-pin GPIO header, compatible with Raspberry Pi 5.
- Output of 5V 4.5A and 12V 2A for additional peripherals.
- Robust construction and reliable performance.
- Quick and easy installation.
Application examples:
- Ideal for projects that require a stable and secure power supply.
- Perfect for use in network projects with Raspberry Pi.
- Suitable for educational projects that require the use of additional hardware alongside the Raspberry Pi.
- Use in IoT and home automation projects.
Technical data:
- Manufacturer: Waveshare
- Manufacturer SKU: 26399
- Input voltage (POE): 37V to 57V DC
- Output voltage: 5V 4.5A (max) via GPIO header, 12V 2A (max) via 2P header
- Network standard: IEEE 802.3af/at PoE
- Dimensions: 56.5 × 70 x 23mm
- Weight: 80.2g
Scope of delivery:
- 1x Raspberry Pi 5 POE Power over Ethernet HAT (F) (Raspberry Pi 5 not included)
- 1x metal heat sink
- 3x thermal pads.

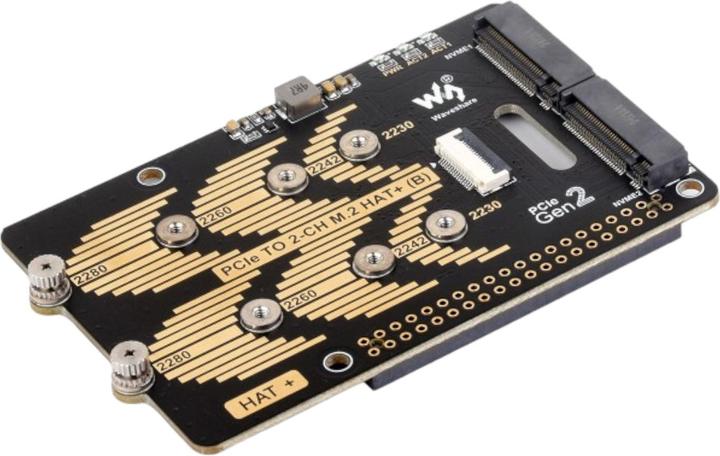

9. WaveShare PCIe to M.2 adapter HAT+ (B) for Raspberry Pi 5
The PCIe to M.2 Adapter HAT+ (B) for the Raspberry Pi 5 enables the simultaneous use of two NVMe M.2 SSDs, significantly increasing the system's storage capacity and performance. The adapter board supports M.2 SSDs in the formats 2280, 2260, 2242, and 2230 that utilize the NVMe protocol. It offers a data transfer rate of up to 5 Gbps, providing a fast and efficient storage solution. The connection to the Raspberry Pi 5 is made via the 16-pin PCIe interface, and the board can boot the Pi from one of the connected NVMe SSDs. Thanks to the anti-oxidation coating, the board is particularly durable and resilient. Two integrated LED indicators provide real-time information about the operational status. An embedded power monitoring chip and EEPROM monitor the energy state of the SSDs in real-time to ensure stable operation.
Highlights:
- Supports NVMe M.2 SSDs in the formats 2280, 2260, 2242, and 2230
- Data transfer rate of up to 5 Gbps
- Integrated power monitoring chip and EEPROM for energy state monitoring.
10. WaveShare ESP32-CAM incl. OV2640 camera
With this ESP32 board and the built-in OV2640 camera, you can create your own surveillance camera or photo camera, for example. The board is not suitable for beginners, as there are still not many examples and libraries available for Arduino. It features an ESP32-S microcontroller, a micro SD card slot for microSD cards, and an OV2640 2MP camera. Thanks to the external 4M PSRAM, the board is also perfect for MicroPython.
Recommended accessories:
Mini USB UART FTDI Programmer 3.3/5V USB Serial
Technical details:
Microcontroller: ESP32-S
Dual-core Tensilica LX6 microprocessor
USB-UART chip: CH340
USB connection: not available (requires FTDI programmer)
Camera: OV2640 2MP
MicroSD card slot on the board
Up to 240MHz clock frequency
Flash: 32M bytes
520kB internal SRAM
PSRAM: 4M bytes external SRAM
Integrated 802.11 b/g/n WiFi transceiver
Integrated dual-mode Bluetooth (BLE and Classic)
Operating voltage I/O: 3.3V
Supports UART / SPI / I2C / PWM / ADC / DAC
Supports OV2640 and OV7670 cameras (built-in flash)
Dimensions: 40 x 27 x 11mm
Weight: 7.8g
Package includes:
1x ESP-32 board
1x OV2640 camera.
