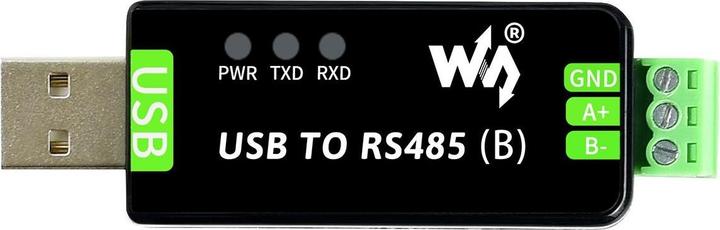

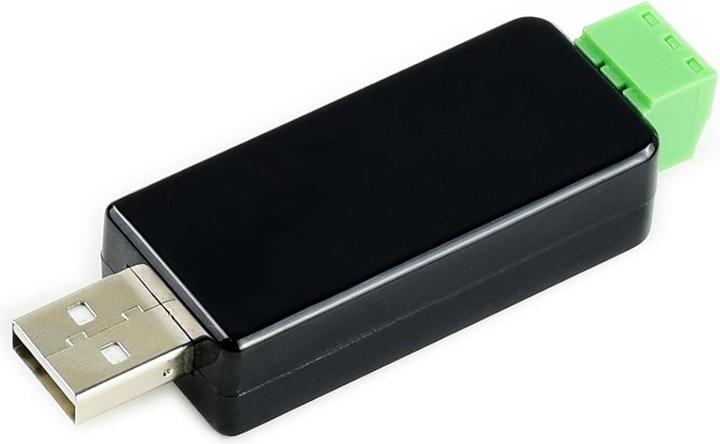

WaveShare Industrieller USB zu RS485 Konverter

This is an industrial USB to RS485 converter from Waveshare with an original FT232RL chip. The USB to RS485 converter is very easy to use, allowing automatic sending and receiving of data via RS485. With this RS485 adapter, you can control Arduinos via a PC that are connected via RS485. The installation is very simple; first, install the drivers for the FT232R, and then you can select the serial USB port and send data to the RS485 via a serial console.

Features:

• USB to RS485 communication

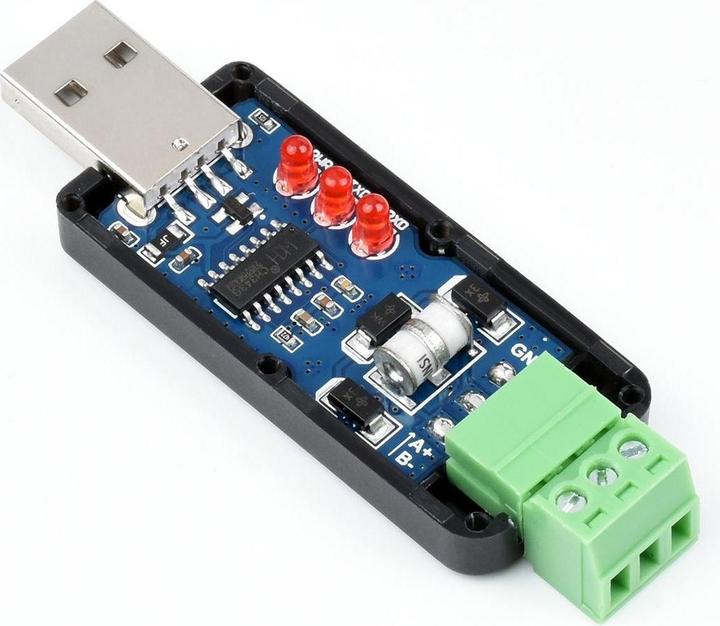

• Original FT232RL

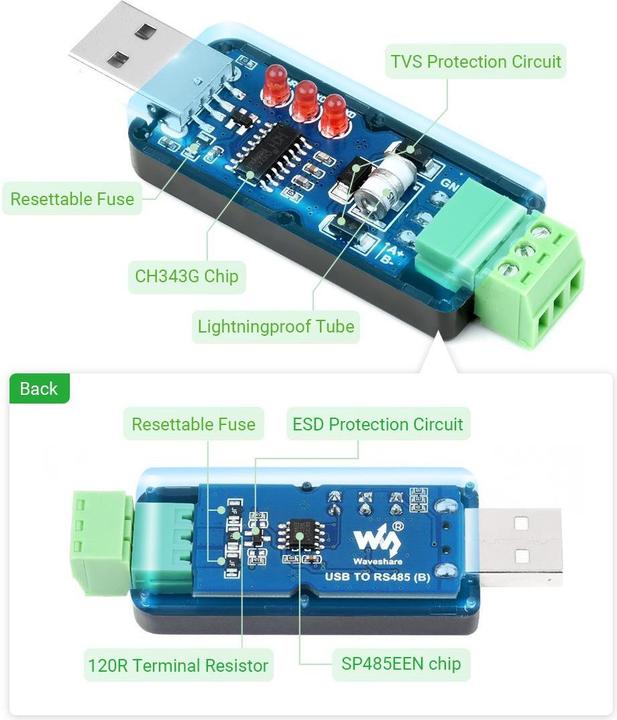

• Onboard TVS (Transient Voltage Suppressor) for voltage pulse protection
• Self-resetting fuse and protection diodes
• 3 LEDs to indicate operating states such as transmit, receive, and operating voltage

Technical details:

• Built-in RS485 chip: FT232RL
• Baud rate: 300-921600bps
• Host port: USB
• Device port: RS485
• USB:
• Operating voltage: 5V
• Connector: USB-A
• Protection: 200mA self-resetting fuse, ESD protection
• Transmission range: about 5m
• RS485:

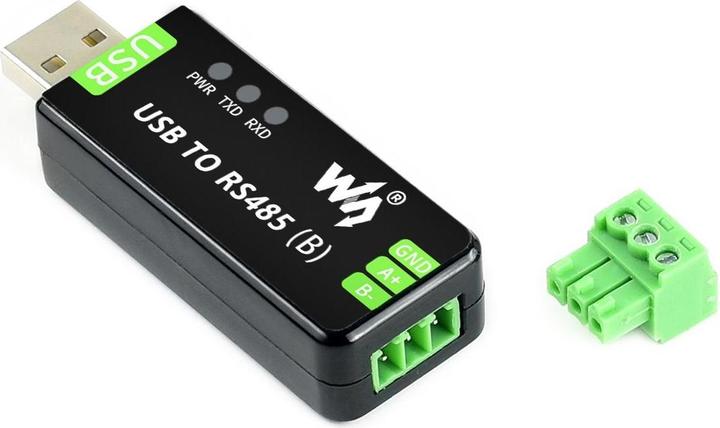

• Connection: Screw terminal
• Pins: A+, B-, GND
• Transmit/receive: automatic hardware control
• Protection: 600W against lightning and overvoltage, 15KV ESD protection (integrated 120R balancing resistor)
• Transmission distance: about 1200m (low baud rate)

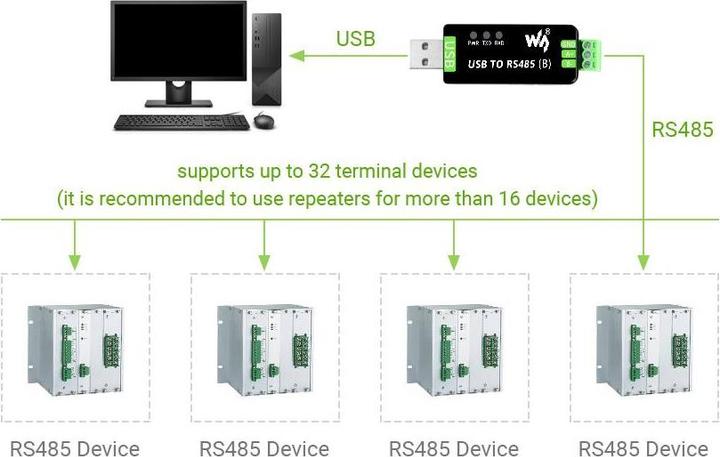

• Transmission mode: point-to-multipoint (up to 32 nodes, use of repeaters is recommended for 16 nodes or more)
• LED indicators:
• PWR: Red power indicator, lights up when USB connection is established and voltage is detected.
• TXD: TX indicator LED, lights up when the USB port is sending data.
• RXD: RX indicator LED, lights up when the device ports are sending data back.
• Ambient conditions:
• Temperature: -15°C to +70°C
• Humidity: 5%RH to 95%RH
• Operating system: Mac, Linux, Android, WinCE, Windows 10/8.1/8/7/XP

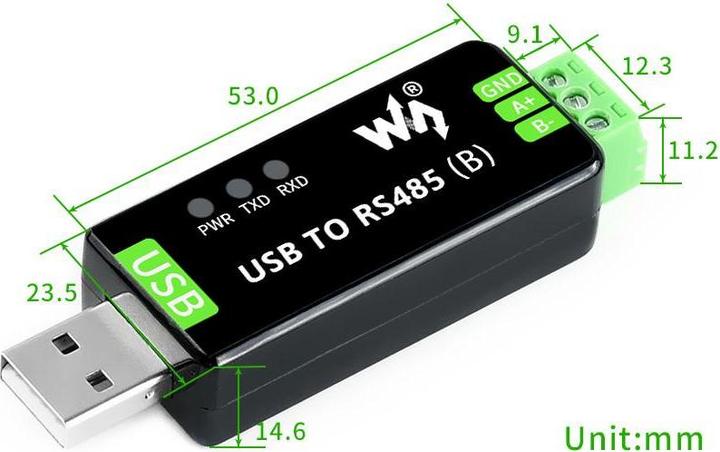

• Dimension: 75 x 24 x 15mm
• Weight: 88.3g

Scope of delivery:

• 1x Industrial USB to RS485 converter
• 1x 1.2m USB extension cable.
