WaveShare RP2040 1.28inch Touch LCD Display Round

Ratings
Delivered between Tue, 3.6. and Wed, 4.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

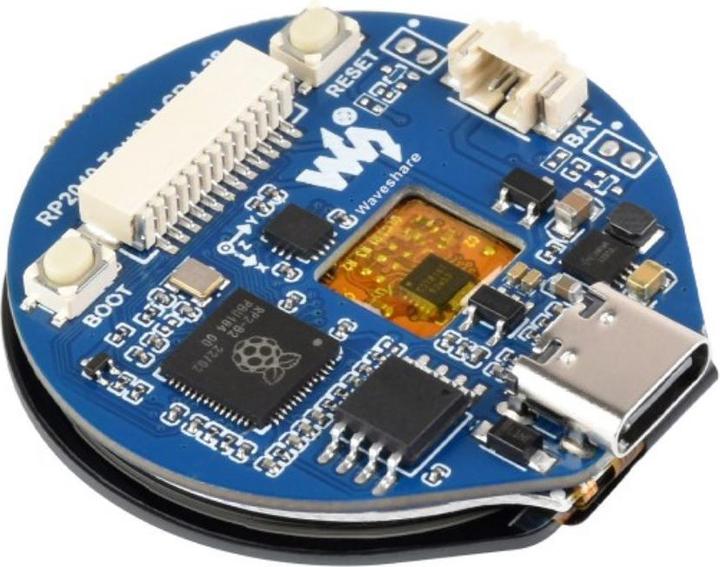

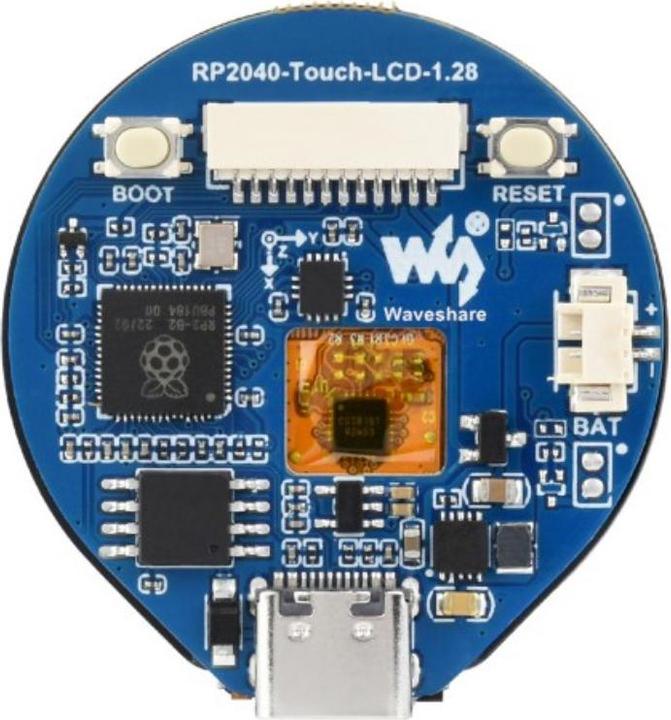

The RP2040 Touch-LCD 1.28 from Waveshare is a compact device featuring an integrated capacitive 1.28-inch touch display, a Li-ion battery charge manager, and a 6-axis sensor (3-axis accelerometer and 3-axis gyroscope). The board can be programmed via the integrated USB port using MicroPython, Arduino, or Pico C/C++ SDK, making it ideal for wearables and other portable devices.

Features:

  • RP2040 microcontroller
  • Lithium battery charge/discharge chip suitable for mobile devices
  • USB 1.1 with device and host support
  • Power-saving sleep and hibernation mode
  • Drag-and-drop programming with mass storage via USB
  • Precise clock and timer on chip
  • Temperature sensor

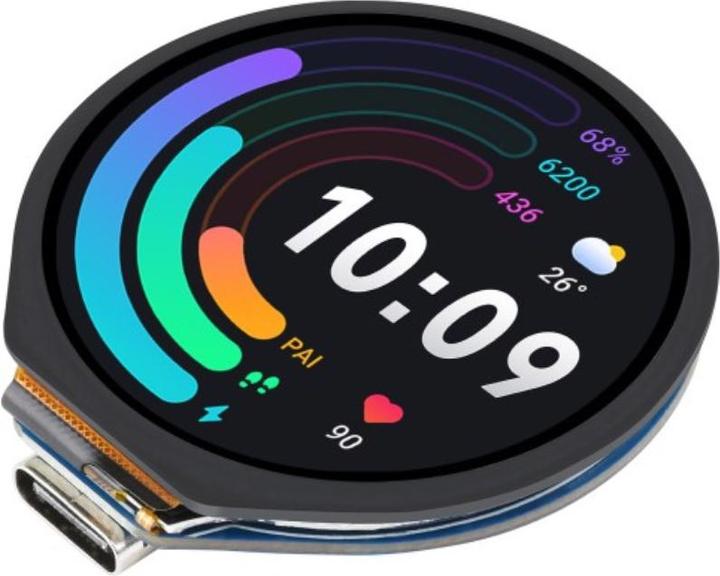

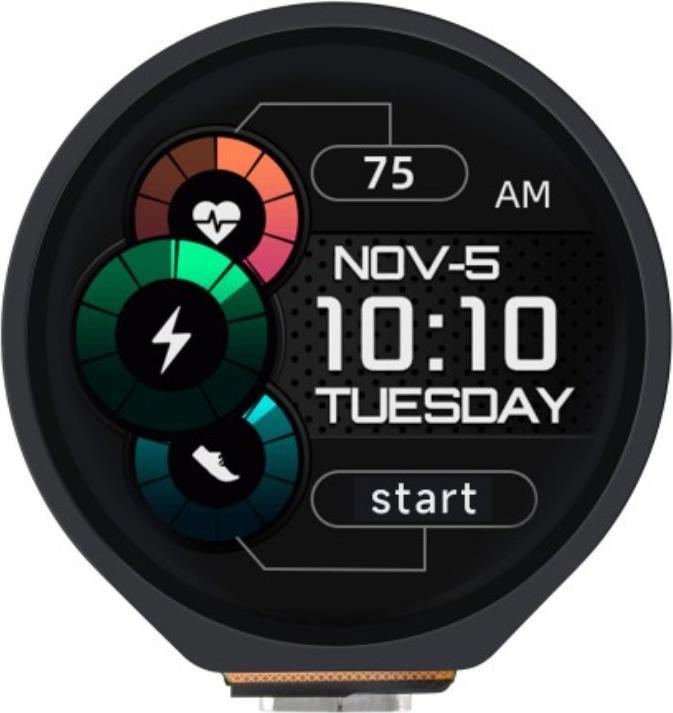

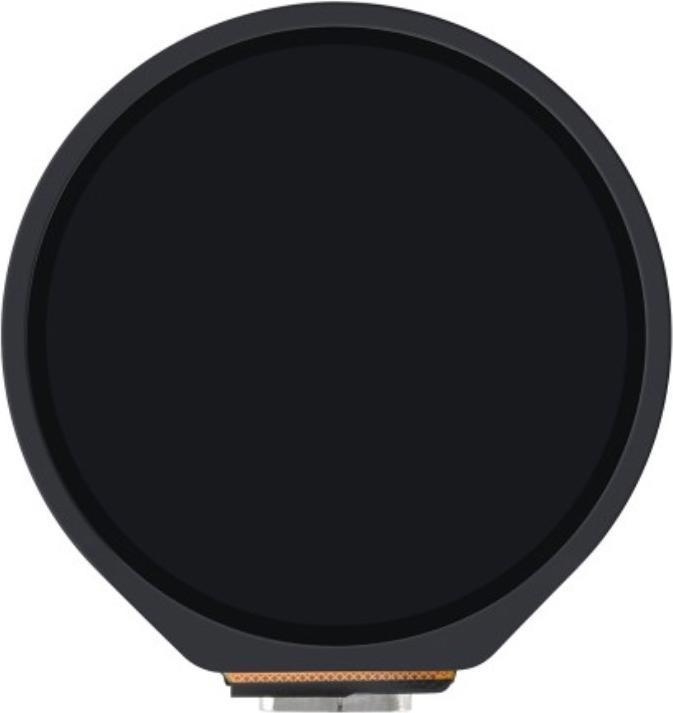

  • Round 1.28-inch color touch display
  • Built-in QMI8658 3-axis accelerometer and 3-axis gyroscope

Technical details:

  • Manufacturer: Waveshare
  • Manufacturer SKU: 24580
  • Microcontroller: RP2040
  • CPU: Dual-core ARM Cortex M0+
  • CPU clock: Up to 133MHz
  • SRAM: 264MB
  • Flash memory: 4MB
  • Connections: 1x USB Type-C, 1x SH1.0
  • Touch chip: CST816S
  • Touch interface: I2C
  • Display chip: GC9A01A
  • Display type: IPS
  • Display interface: SPI
  • Display color: 65K RGB
  • Resolution: 240 x 240 pixels (RGB)
  • Pixel pitch: 0.135 x 0.135mm
  • Display dimensions: Φ32.4mm
  • IMU sensor: QMI8658C
  • Accelerometer:
  • Resolution: 16 bits
  • Measuring range (optional): ±2, ±4, ±8, ±16g
  • Gyroscope:
  • Resolution: 16 bits
  • Measuring range (optional): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048°/sec
  • Supported programming languages: MicroPython, Arduino, Pico C/C++ SDK
  • Dimensions: 40.8 x 38.5 x 8.3mm
  • Weight: 22g

Included in delivery:

  • 1x RP2040 1.28-inch Touch LCD Display Round
  • 1x 12Pin SH1.0 to Female Dupont Cable 20cm.

Key specifications

Development board type
Kit
Memory
264 MB
Processor family
ARM
Processor type
Cortex M0+
Clock speed
133 MHz
Item number
36641473

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
23.6.2023

Development board properties

Development board type
Kit
Processor family
ARM
Processor type
Cortex M0+
Clock speed
133 MHz
Memory
264 MB
Flash memory
4000 kB

Connections

USB ports
USB-C
Digital outputs
1
Digital inputs
2

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 12pin SH1.0 to female Dupont cable 20cm, 1x RP2040 1.28inch Touch LCD Display Round

Product dimensions

Length
40.80 mm
Width
32.40 mm
Height
8.30 mm
Weight
22 g
