Product details

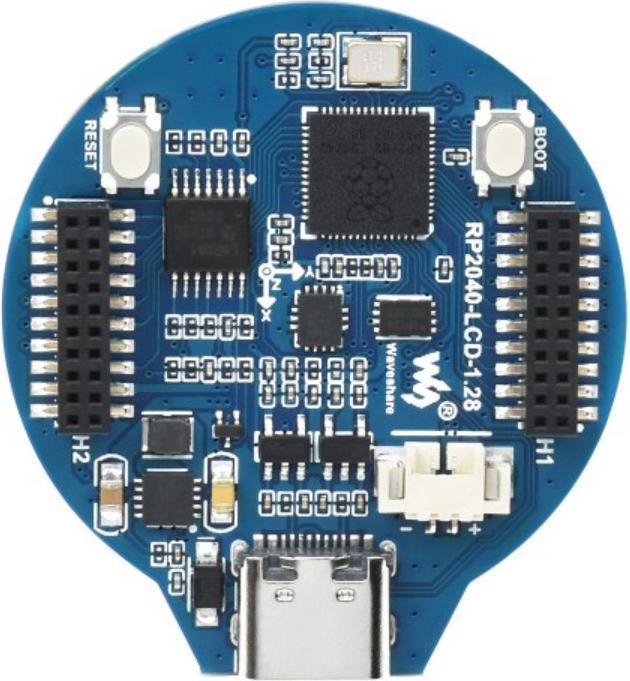

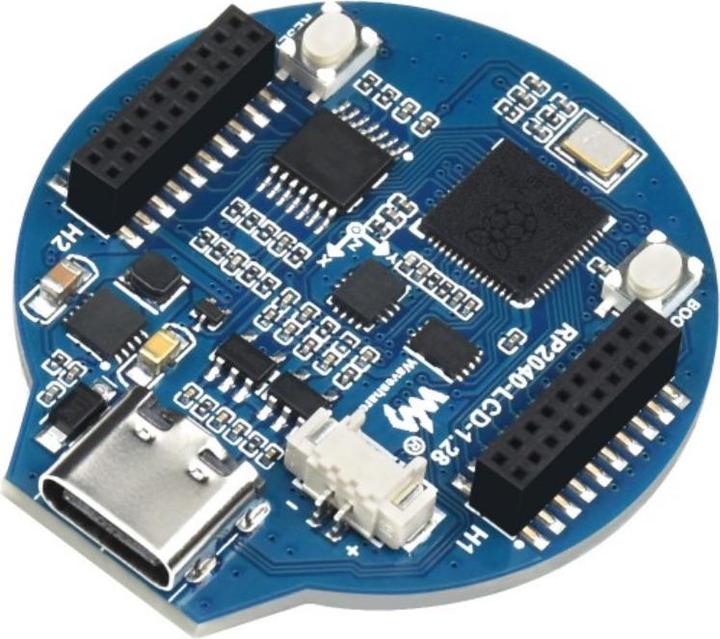

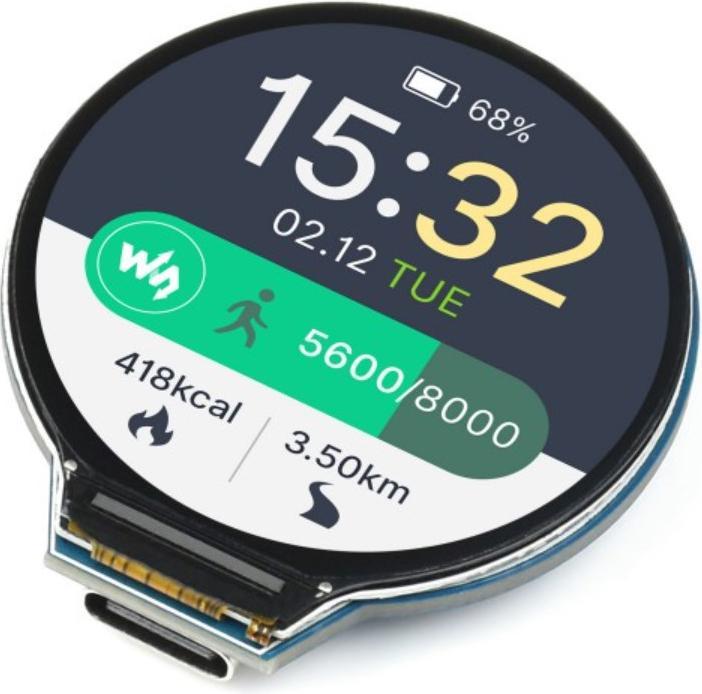

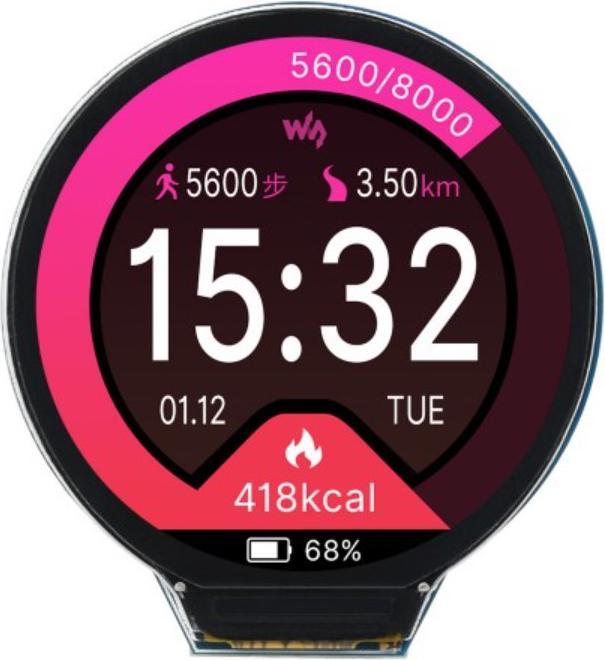

The RP2040-LCD-1.28 is a clock-shaped display featuring a powerful processor. The RP2040 comes with a USB-C port, allowing the board to be easily programmed with the Pico C/C++ SDK or MicroPython. The board also includes a Li-Ion charging chip, enabling the clock to be powered by a battery.

Features:

  • RP2040
  • Round 1.28-inch color display
  • Integrated QMI8658C 3-axis accelerometer and 3-axis gyroscope
  • Li-Ion battery charging chip

Technical Details:

  • Manufacturer: Waveshare
  • Manufacturer SKU: 22668
  • Memory: 264 KB SRAM and 2 MB integrated flash memory
  • Connection: USB 1.1, Type C
  • Display Size: 1.28 inches
  • Display Resolution: 240x240 pixels
  • Display Type: LCD
  • Display Color Resolution: 65,000 RGB colors
  • CPU: Dual-core ARM Cortex M0+
  • CPU Clock: Up to 133 MHz
  • Battery: Lithium header for charging/discharging (battery not included)
  • Power-saving mode: Yes
  • Sensors: Temperature sensor, gyro, and accelerometer
  • Pins: 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Dimensions: 40 x 36.5 x 8 mm
  • Weight: 15 g

Included in Delivery:
1x RP2040 1.28-inch round LCD display.

Key specifications

Processor type
Cortex M0+
Processor family
ARM
Memory
2 MB
Clock speed
133 MHz
Number of cores
2
Item number
25399624

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Manufacturer no.
RP2040-LCD-1.28
Release date
27.4.2023

Development board properties

Processor family
ARM
Processor type
Cortex M0+
Clock speed
133 MHz
Memory
2 MB
Number of cores
2
Flash memory
264 kB

Connections

USB ports
USB-B
Exact USB ports
USB-B 1.0 (1x)
Number of I/O
2

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x RP2040 1.28inch LCD Display Round

Product dimensions

Length
36.50 mm
Width
40 mm
Height
8 mm
Weight
15 g
