Turck Connection line

2 m
Ratings
Delivered between Sat, 2.8. and Wed, 20.8.

Product details

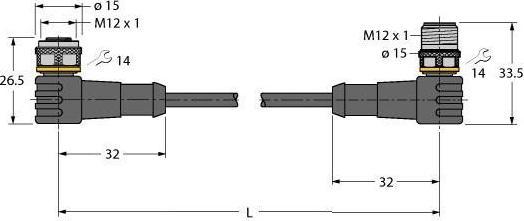

Turck connection cable WKC5T-2-WSC5T/TEL Manufacturer :Turck Designation :Connection cable PVC Type :WKC5T-2-WSC5T/TEL No. of poles :5 Electrical connection type, field side :M12 Type of plug-in contact, field side :male Arrangement of cable feed, field side :angled Electrical connection type, housing side :M12 Type of plug-in contact, housing side :female Arrangement of cable entry, housing side :angled Cable length :2 m Material of cable sheath :Polyvinyl chloride (PVC) Colour of cable sheath :black With LED display :no Shielded :no Cable type :multi-core Material of contact base :CuZn Material of contact coating :Gold Perm. Perm. cable outer temperature after assembly without vibration :-40..105 °C Perm. cable outer temperature during assembly/handling :-5..80 °C Rated current In :4 A Rated voltage :60 V Turck connection cable WKC5T-2-WSC5T/TEL: further details Actuator and sensor cable / PVC, connection cable, M12 coupling, angled, 4-pin + PE, cable length: 2.0 metre, Sheath material: PVC, Sheath colour: black, Chemical and oil resistant, Flame retardant, Resistant to acids and alkalis, Microbe and hydrolysis resistant, LABS free, Approval: cULus, RoHS compliant, Protection class IP67, M12 connector, angled, 4-pin + PE , EAN: 4047101339765.

Key specifications

Cable length
2 m
Plug type
M12
Item number
36825648

General information

Manufacturer
Turck
Category
Power cables
Manufacturer no.
6625264
Release date
29.6.2023

Colour

Cable colour
Black

Material

Material of the isolation
PVC

Power cable properties

Wall socket
M12
Plug type
M12
Plug type
Angled

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
2 m

30-day right of return
24 Months Warranty (Bring-in)
