Name: Actuator and sensor cable PUR Connecting cable RKS8T-2
Brand: Turck
SKU: 36336486
Price: 66.9 CHF
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Zurich

Lausanne

Basel

Kriens

Winterthur

Bern

Dietikon

Geneva

Wohlen

St. Gallen

Turck

Turck connection cable RKS8T-2.2-RSS8T/TXL Manufacturer :Turck Designation :PUR connection cable Type :RKS8T-2.2-RSS8T/TXL Number of poles :8 Type of electrical connection, field side :M12 Type of plug contact, field side :male Arrangement of cable entry, field side :straight Type of electrical connection, housing side :M12 Type of plug contact, housing side :female Arrangement of cable entry, housing side :straight Cable length :2.2 m Material of cable sheath :Polyurethane (PUR) Colour of cable sheath :black With LED display :no Shielded :yes Cable type :multi-core Material of contact base :CuZn Material of contact coating :Gold Permissible external cable temperature after assembly without exposure to heat :1.2 m Perm. cable outer temperature after assembly without vibration :-50..80 °C Perm. cable outer temperature during assembly/handling :-25..80 °C Rated current In :2 A Rated voltage :30 V Turck connection cable RKS8T-2.2-RSS8T/TXL: further details Actuator and sensor cable / PUR, Connecting cable, M12 coupling, straight, 8-pin, shield connected to union nut/screw, Cable length: 2.2 metres, Sheath material: PUR, shielded, Colour of sheath: black, Suitable for drag chains, Resistant to welding sparks, Resistant to chemicals, UV and oil, Flame retardant, Free of halogen, silicone, PVC and LABS, Particularly abrasion resistant, Approval: cULus, RoHS compliant, Protection class IP67, M12 connector, straight, 8-pin , EAN: 4047101323511.

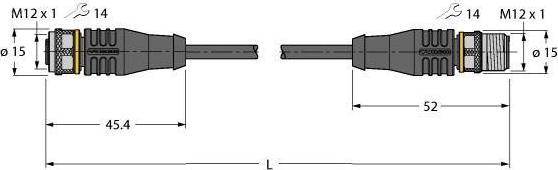

Actual product image Turck Actuator and sensor cable PUR Connecting cable RKS8T-2 (2.20 m)
