Turck Actuator-

5 m
Ratings
Delivered between Thu, 21.8. and Sat, 6.9.

Product details

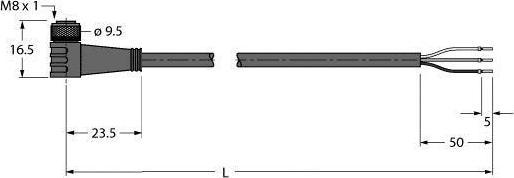

Turck actuator and sensor cable HT-SWKP3-5/S2430 Manufacturer :Turck Designation :Actuator and sensor cable Type :HT-SWKP3-5/S2430 Sensor cable Type :HT-SWKP3-5/S2430 Number of poles :3 Electrical connection version, housing side :M8 Type of plug contact, housing side :female Cable feed arrangement, housing side :Angled Cable length :5 m Cable sheath material :other Cable sheath colour :white With LED indicator :no Shielded :no Cable type :multi-core Contact body material :CuZn Contact coating material :gold Perm. External cable temperature after installation without vibration :-20..150 °C Rated current In :4 A Rated voltage :250 V Turck actuator and sensor cable HT-SWKP3-5/S2430: more details High temperature resistant actuator and sensor cable, connection cable, M8 coupling, angled, 3-pole, cable length: 5.0 metres, sheath material: PTFE, sheath colour: White, Flame-retardant, Resistant to welding sparks, Resistant to chemicals, UV and oil, Resistant to acids and alkalis, LABS-freeLABS-free, Hydrolysis-resistant and microbe-resistant, Flexible at low and high temperatures, RoHS-compliant, Protection class IP65, Cable temperature range: -190°C-260°C , EAN: 4047106005108.

Key specifications

Cable length
5 m
Item number
36814141

General information

Manufacturer
Turck
Category
Power cables
Manufacturer no.
8036099
Release date
28.6.2023

Colour

Cable colour
White

Power cable properties

Wall socket
M8
Device connection
3-pin. Type J
Plug type
Angled

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
5 m
