Turck Actuator-

1 m
Ratings
Delivered between Sat, 9.8. and Sat, 30.8.

Product details

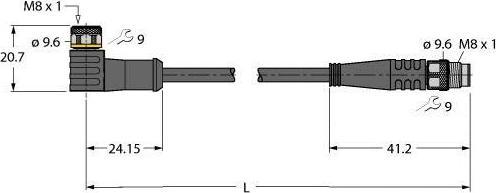

Turck actuator and sensor cable PKW4MP7X21PSG4M/TEL Manufacturer :Turck Designation :Actuator and sensor cable Sensor cable PVC Type :PKW4MP7X21PSG4M/TEL Number of poles :4 Type of electrical connection, field side :M8 Type of plug contact, field side :Male Arrangement of cable entry, field side :straight Type of electrical connection, housing side :M8 Type of plug contact, housing side :Female Cable feed arrangement, housing side :Angled Cable length :1 m Cable sheath material :Polyvinyl chloride (PVC) Cable sheath colour :Black With LED indicator :Yes Shielded :No Cable type :Multi-core Contact base material :CuZn Contact coating material :Gold Perm. Perm. external cable temperature after installation without vibration :-40..105 °C Perm. external cable temperature during installation/handling :-5..80 °C Rated current In :4 A Rated voltage :30 V Turck actuator and sensor cable PKW4MP7X Sensor cable PKW4MP7X21PSG4M/TEL: more details Actuator and sensor cable / PVC, connecting cable, M8 coupling, angled, 4-pin, with 2 LEDs (pnp, yellow, green), cable length: 1.0 metre, sheath material: PVC, sheath colour: black, resistant to chemicals and oil, flame-retardant, resistant to acids and alkalis, resistant to microbes and hydrolysis, LABS-free, approval: cULus, RoHS-compliant, protection class IP67, M8 connector, straight, 4-pin , EAN: 4047101281323.

Key specifications

Cable length
1 m
Item number
36808257

General information

Manufacturer
Turck
Category
Power cables
Manufacturer no.
6626247
Release date
22.1.2024

Colour

Cable colour
Black

Material

Material of the isolation
PVC

Power cable properties

Wall socket
M8
Plug type
Angled
American Wire Gauge (AWG)
4

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
1 m
