Trilux 07650 L150#7273300 Support profile IP20 1475mm black

Trilux support profile IP20 07650 L150 #7273300

Manufacturer: Trilux
Designation: Support profile IP20

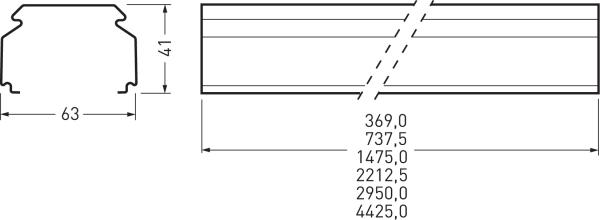

Length: 1475 mm
Type: 07650 L150 #7273300
Version: 1-length
Variable gear tray spacing: No
With wiring: Yes
Number of wiring cores: 7
Cross-section of wiring cores: 2.5 mm²
Suitable for cable tray: No
With cable tray: No
Electrical connection with plug-in system: Yes
Integrated electromechanical coupling: No
Material: Steel
Colour: Black
Width: 63 mm
Height: 41 mm
Protection class: I
Protection rating (IP): IP20

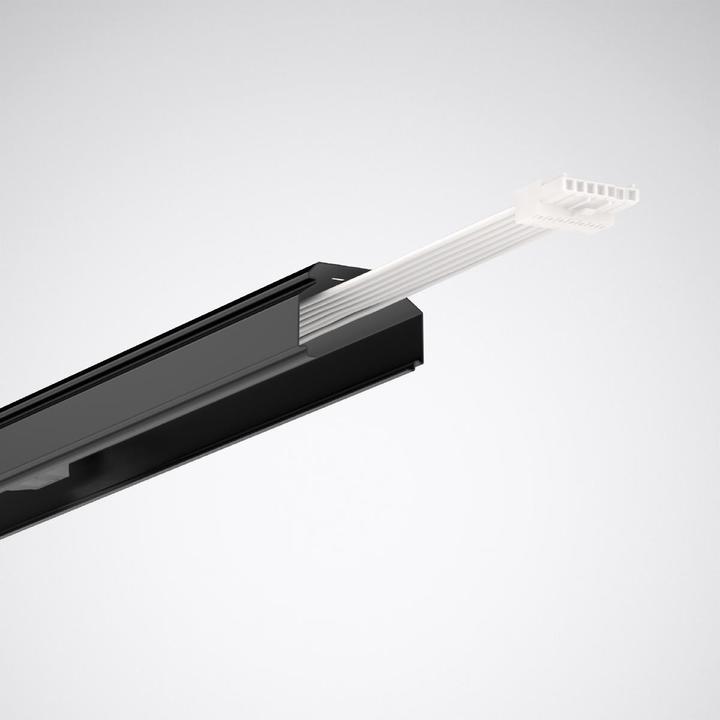

Further details: Support profile for E-Line 7651 Fix LED continuous-row single luminaires or continuous-row terminations. Also suitable for continuous-row applications in combination with a separately ordered continuous-row coupling. Length of the support profile: 1475 mm. With 7-conductor through-wiring. Cable cross-section 2.5 mm². With 1 disconnecting plug upper section for tool-free electrical connection of the gear trays. With 7-pin female/male connector pair for quick electrical connection and touch-safe termination of the cable ends. The heat-resistant through-wiring is complete with all necessary components at the factory. All connections are designed as quick-connect, reverse polarity protected. An upper knock-out opening (M20/PG13.5) allows the feed-in without accessories. The support profile body is made of hot-dip galvanised sheet steel with a black coated surface.
