Bachmann 685.882. Cable length: 7.5 m, cable color: Orange

7.50 m
Ratings
Delivered between Mon, 7.7. and Mon, 21.7.

Product details

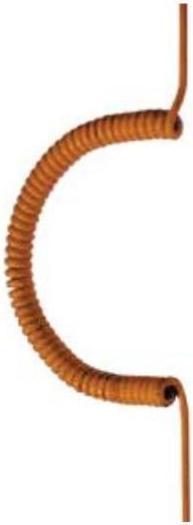

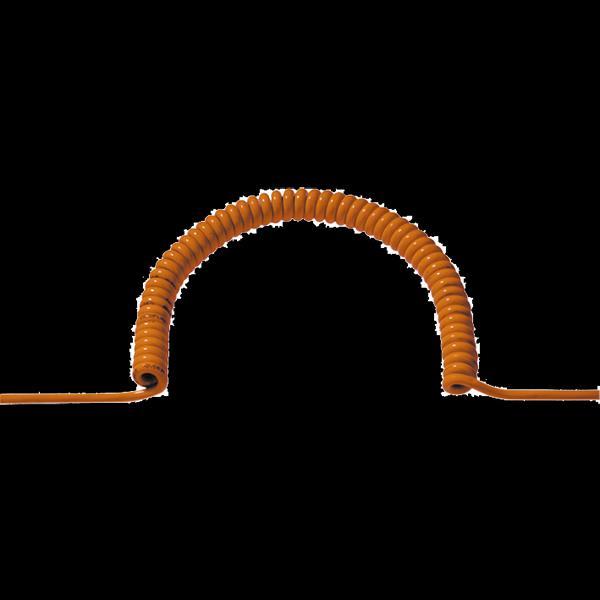

Bachmann Spiral Cable PUR 685.882

Manufacturer: Bachmann
Description: Spiral cable PUR 5G1.5/1.5m or Type: 685.882
Conductor nominal cross-section: 1.5 mm²
Conductor class: fine-stranded
Number of conductors: 5
Insulation material: Rubber
Conductor marking: Color
With protective conductor: no
Sheath material: Polyurethane (PUR)
Sheath color: orange
Spiral length (closed): 1500 mm
Spiral length (extended): 7500 mm
Flame retardant: according to IEC/EN 60332-1-2
Outer diameter approx.: 41 mm
Permissible cable outer temperature during installation/handling: -35..80 °C
Rated voltage U0: 450 V
Rated voltage U: 750 V

Bachmann Spiral Cable PUR 685.882: additional details
Power distributor SPIRAL CABLE
Power cable 1,500 mm, 7,500 mm, 41 mm, 18 mm H07BQ-F 5G 1.5 mm² orange, 200 mm straight, smooth cut, unpackaged
EAN: 4016514005192.

Key specifications

Cable length
7.50 m
Item number
14177545

General information

Manufacturer
Bachmann
Category
Power cables
Manufacturer no.
685.882
Release date
11.11.2020
External links
Manufacturer's site (de)

Colour

Cable colour
Orange

Material

Material of the isolation
Polyurethane

Power cable properties

American Wire Gauge (AWG)
5

Origin

Country of origin
Romania

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
7.50 m
Diameter
1.13 cm
Width
30 cm
Height
7 cm
Weight
1820 g
