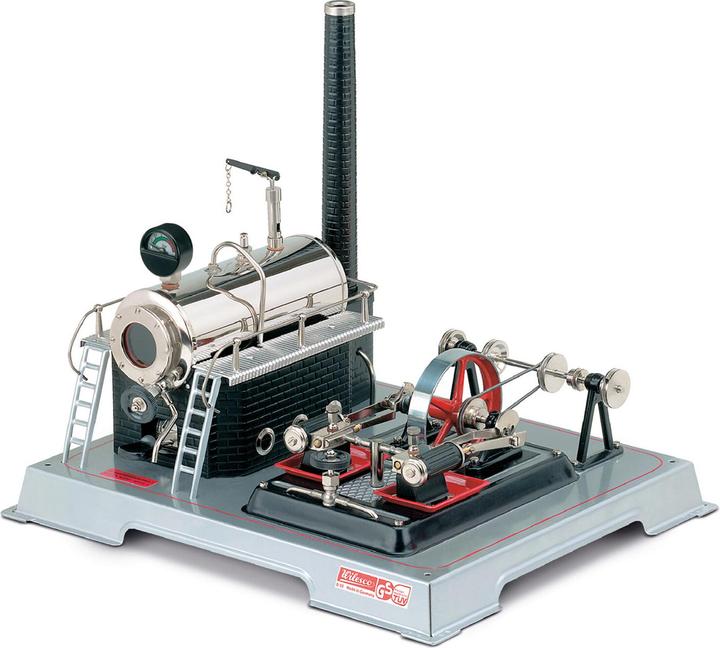

Wilesco D22 Steam engine with steam chimney

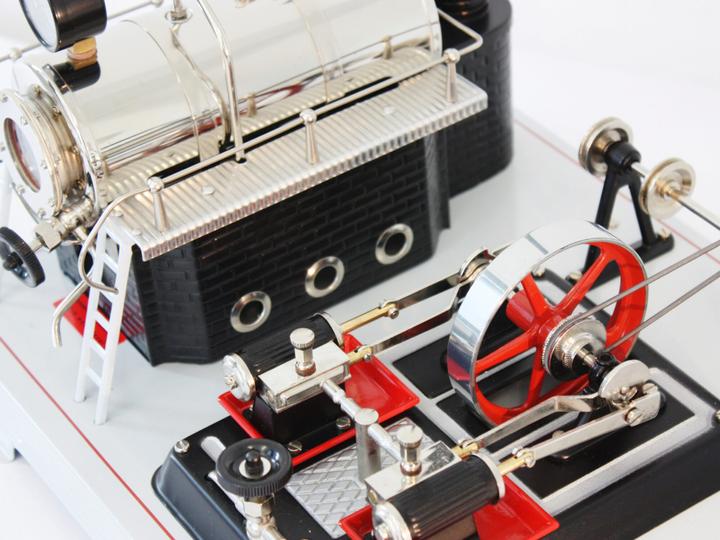

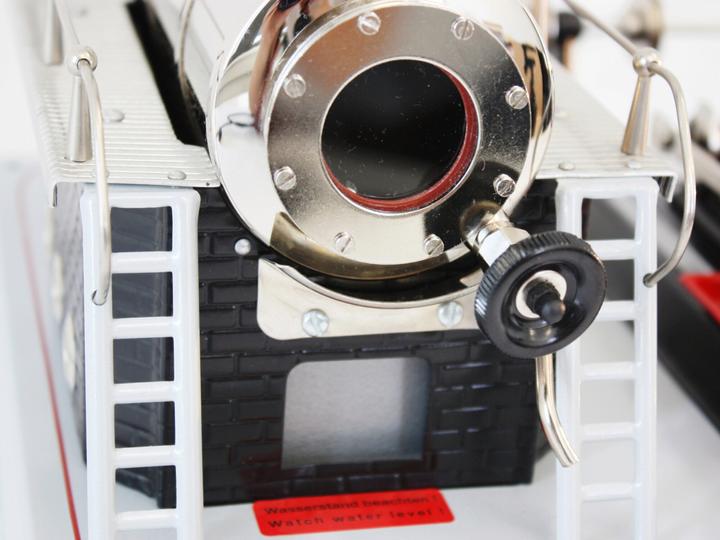

Powerful two-cylinder steam engine, self-starting, with gearbox. A technically sophisticated model that also impresses with its decorative black and silver finish. The brass boiler is highly polished and nickel-plated, with a diameter of 65 mm and a length of 165 mm, as well as a boiler volume of 500 cm³. It features a water level indicator in the form of a sight glass, a water drain valve, a spring safety valve, a steam whistle with chain pull, a pressure gauge, and a steam shut-off handwheel valve. The boiler house is painted black and includes two walkways with a gallery and ladders. The unit is mounted on an elevated metal foundation and has two double-acting, solid brass cylinders, a steam jet oiler, and a flywheel with a diameter of 80 mm, along with a large drive pulley that allows for forward and reverse operation with fixed gearing and multiple drive pulleys.

Base dimensions: 350 x 290 mm
Height: 320 mm
Weight: 2.8 kg.
