Top-rated products in the Control technology accessories category

Here's a ranking of the top rated products in this category. To give you a quick overview, we've also added some key information about the products.

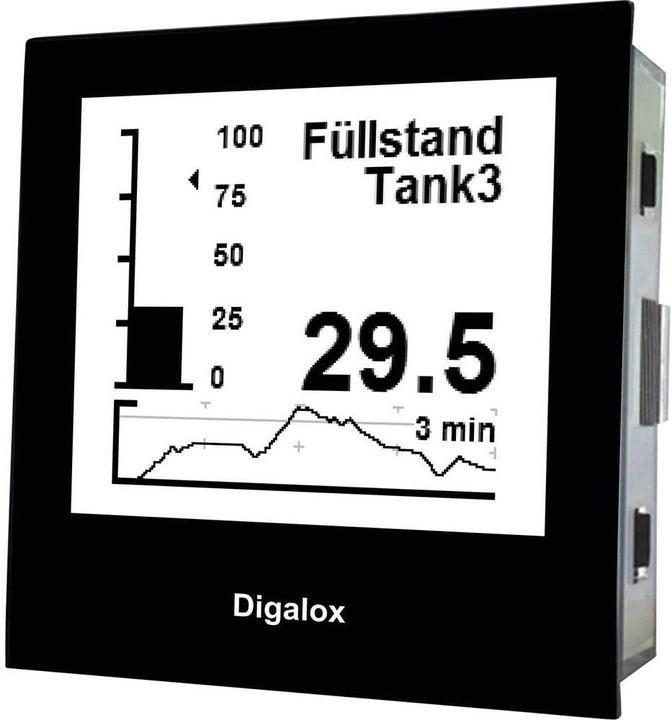

1. TDE Instruments Digalox DPM72-PP Graphic DI

Graphical measuring device that combines the advantages of easy readability of an analog display with the accuracy of a digital measuring instrument. It supports measurement types of analog signal 0/4 to 20 mA as well as DC current measurement via a shunt resistor. Minimum and maximum values are recorded and can be activated and reset via an external switch. The device records measurement values over a duration of 3 minutes to 72 hours. The time range and the display of the trend graph of the measurement values can be switched using an external switch. The associated USB configuration software allows the following parameters to be configured: scale range, scale labeling, display design (pointer, tachometer, bar graph, etc.), start graphic, threshold values for alarm outputs, hysteresis, and more. Through the software, measurement values in the memory can be read out and continuous data transmission can be activated. The measurement values can be graphically evaluated within the software and exported as a CSV file.

2. Aeotec GEN5

Nowadays, everyone is talking about saving energy. We also know that by consuming less energy, not only can you save money, but you can also protect the environment. However, to save electricity and thus money, it is important to know when and how energy is used correctly. Aeotec offers you the opportunity to understand this!

The Aeotec Smart Home Energy Meter allows you to determine the electricity consumption of your entire home affordably. Once the HEM is installed in an electrical panel, the device accurately and quickly monitors the total electricity consumption of your home. It then sends the data back to your smart home gateway via a wireless Z-Wave connection. This way, you receive a comprehensive overview of when and how much electricity you are consuming, almost in real-time.

The device is mounted on the wall or floor with a bracket. It is connected and powered via the AC cable to an outlet or the 230V terminal block. The device has three terminals and reports in watts and kilowatt-hours (up to a maximum of 60 amperes).

Features:

- Clamp ammeter for the electrical panel
- 3-phase meter up to a maximum of 60 A
- Reporting in watts, kilowatt-hours, and real-time
- 90...260VAC, 50/60 Hz
- Voltage measurement range: 220V~...260V~
- Current measurement range: 0...60A
- Operating temperature: 0°C...40°C
- Protection class: IP43
- Wireless technology: Z-Wave Plus
- Dimensions: 96 x 70 x 230 mm.

3. Wago Plug-in socket

WAGO GmbH & Co. KG Plug-in socket w.relay 788-303 Manufacturer: WAGO GmbH & Co. KG Designation: Plug-in socket w.relay 1W, 12V DC/16A Type: 788-303 Design of electrical connection: spring-loaded connection With removable terminals: no Rated current: 16 A Rated control supply voltage Us at DC: 12 V Voltage type for actuation: DC Actuator, polarity: polarized Actuator switching behavior: monostable Number of contacts as changeover contacts: 1 With positively driven contacts: no Type of switching contact: single contact Complete device with base: yes With LED display: yes Protection class (IP): IP20 Width: 15 mm Height: 54 mm Depth: 86 mmWAGO GmbH & Co. KG Plug-in socket w.relay 788-303: more detailsRelay module Rated input voltage DC 12 V 1 changeover contact Continuous current limit 16 A Status display red 15 mm Construction width 2.50 mm² gray , EAN: 4055143184106.

4. Shelly Current transformer 120 A

The Shelly EM 120 A current transformer clamp features an integrated relay output for controlling contactors. You can manage the Shelly EM output via the Shelly app, MQTT, or the REST API. It offers automatic shut-off or notifications when the current consumption limit is reached, as well as automatic on and off switching based on time or sunrise and sunset.

5. Dragino SCT013G-D-100 Current transformer 100A:50mA

The SCT013G-D-100 current transformer from Dragino is a high-precision measuring device specifically designed for monitoring alternating current up to 100A. With an output of 50mA, this transformer provides reliable and accurate measurements, making it ideal for various applications in energy management and monitoring. Its robust and compact design ensures a long lifespan and dependable performance, even under demanding conditions. Thanks to the innovative split-core design, the transformer can be easily installed without the need to cut any cables, significantly simplifying retrofitting in existing systems. With an aperture diameter of 16 mm, the SCT013G-D-100 is compatible with standard cables, allowing for seamless integration into existing setups. This device is an excellent choice for professionals requiring precise current measurements in industrial and commercial applications.

- Accurate current measurements with a ratio of 100A:50mA
- Easy retrofitting through split-core design without cable cutting
- Compatible with standard cables due to 16 mm aperture diameter
- Robust construction made of high-quality plastic and metal core.

6. Wago 750-513/000-001

The WAGO 750-513/000-001 relay output terminal is a high-quality accessory for control technology that enables reliable signal transmission and processing. With two channels, this product offers a flexible solution for various applications in automation technology. The terminal is equipped with a decoupling of 1.5 kV, ensuring safe separation of signals. Its compact design, with dimensions of 12 x 100 x 69.8 mm, allows for easy integration into existing systems. The WAGO 750-513/000-001 is designed for use in environments with a relative humidity of up to 95%, providing high reliability under various conditions. This relay output terminal is ideal for applications that require potential-free signal transmission.

- Two channels for flexible signal processing
- 1.5 kV decoupling for safe signal separation
- Potential-free operation without power contacts
- Suitable for high relative humidity up to 95%.

7. Phoenix Contact Relay socket PLC-BPT- 2

6.2 mm PLC basic terminals with push-in connection, input voltage 24 V DC (without relay or optocoupler equipment).

8. Omron Industrial Automation Relay socket 14pin, 12A, 250V, screw terminal

Relay socket 14pin, type=PYF14-ESS-B, width=27 mm, height=83 mm, length=82 mm, pins=14, poles=4, voltage max.=250 V, current max.=12 A, connection type=screw terminal, suitable for=MY series relays, mounting type=DIN rail mounting.

9. Jumo 701590/0-01-25-02 Temperature controller -200 to +600°C Relay 16A

The smart digital indicator is used to electronically display a process temperature. The device records this via an analogue input for a resistance thermometer. Other functions include limit value monitoring, min/max value storage, hold function and tare function. The device is equipped with 1 relay (NO contact AC 250 V, 16 A) and 1 digital input. The round housing design allows the device to be used wherever round pointer instruments were previously used. The device is characterised by simple, clearly structured operation supported by texts in the national languages German, English, French and Spanish. Process values, texts and parameters are displayed on two 18-segment LCD displays. Additional display elements provide information on the switching position of the output, the timer status and the temperature unit. Plug-in terminal strips with push-in technology enable quick electrical installation. Operation, parameterisation and configuration are carried out via a membrane keypad with four buttons. The device can be conveniently configured with a PC using the setup programme. No separate power supply is required during configuration via the USB interface (USB-powered).

10. Finder Push-in socket Type 55.34 relays

For use with = Relay 55.32, Relay 55.34
Accessories Type = Plug-in terminal sockets
Series = 94 Series
Connection type = plug-in mounting

Relay Sockets, 90 Series Suitable for use with a wide variety of relays, timers and process controllers, Finder 90 Series relay sockets.
