Best selling Water pumps from RS PRO
This page always stays fresh and updates automatically.
1. RS PRO High Flow Micropump with EQi Driver
Maximum flow rate = 2.4 l/min
Supply voltage = 6 to 24 V
Maximum operating pressure = 8 bar
Housing material = anodized aluminum
Power consumption = 15 to 99 W
IP protection = IP68
Self-priming miniature pumps are equipped with a switchable flow direction. Simple connections and compact dimensions ensure quick and easy installation. The powerful brushless motor provides a smooth and constant flow at impressive pressures for a compact liquid pump. These pumps are available with standard connections or for mounting on a manifold and are suitable for a variety of applications, including medical, cooling, fuel cells, lubrication, and precise flow systems. They feature a self-priming, CNC-machined alloy construction. Maximum weight: 340 g (see datasheet for variations). Maximum size: 90 x 53 x 50 mm (see datasheet for variations). Numerous mounting options are available for different designs and requirements.

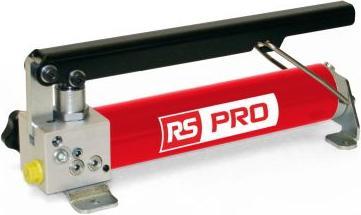

2. RS PRO Two Speed, Hydraulic Hand Pump, 9L, 700bar
The RS PRO double hydraulic hand pump is a powerful and reliable solution for various hydraulic applications. With a maximum operating pressure of 700 bar and a usable oil capacity of 9 liters, this hand pump provides the necessary power and efficiency for demanding tasks. The pump features two speed settings that allow for flexible handling and increase efficiency during work. Its robust design and weight of 24.6 kg make it ideal for use in workshops and garages, where it supports a variety of hydraulic applications. The compact construction also ensures easy transportability, while the manual power supply guarantees reliable performance.
- Maximum operating pressure of 700 bar for high performance
- Two speed settings for flexible application
- Usable oil capacity of 9 liters for longer operations
- Robust construction for use in workshops.
3. RS PRO Brushless Driver for MG1000 - 0 to 24v
The brushless driver for the MG1000 water pump from RS PRO is a state-of-the-art control unit specifically designed for brushless micropumps. With an operating voltage range of 6 to 28 volts and a maximum operating temperature of +80 °C, this product offers a reliable and efficient solution for various applications. Its compact design, measuring 65 mm in width, 53 mm in height, and 74 mm in length, allows for easy integration into existing systems. This control unit is designed for mains operation and meets the requirements for precise process pump control. It is ideal for applications where precise control and high temperature resistance are required.
- Operating voltage of 6 to 28 V for flexible applications
- Maximum operating temperature of +80 °C for demanding environments
- Compact dimensions for easy integration into systems
- Designed for brushless micropumps for high efficiency.
4. RS PRO S/steel Y strainer valve,1in BSPP F-F
Sieves or Filters: Screen
Suitable Media: Liquid
Connection: BSP1
Housing Material: Stainless Steel
Connection Size: 1 Inch
Max. Operating Pressure: 40 bar
Thread Connection Type: BSP
Y-Screen, stainless steel, class 800. This stainless steel screen with a threaded connection can be used when the amount of solids to be removed is low. It can be installed horizontally or vertically and is available in various sizes. Performance features include sizes from 1/4 inch to 3 inches (DN8-DN80), working pressure of 800 WOG (PN50), and a temperature range of -20 °C to 200 °C (-4 °F to 392 °F). The thread type is ASME B1.20.1 (NPT), DIN2999, BS21 ISO 7/1, and EN10226. The material requirements include housing, cover, and drain screw made of ASTM A351-CF8M, screen made of AISI 316, and gasket and sealing ring made of PTFE.
5. RS PRO High Pressure MicroPump with EQi Driver
Maximum flow rate: 400 ml/min
Supply voltage: 6 to 24 V
Maximum operating pressure: 10 bar
Housing material: anodized aluminum
Power consumption: 3 to 30 W
IP protection class: IP68
Self-priming miniature pumps are equipped with a switchable flow direction. Simple connections and compact dimensions ensure quick and easy installation. The powerful brushless motor provides a smooth and constant flow at impressive pressures for a compact liquid pump. These pumps are available with standard connections or for mounting on a manifold and are suitable for a variety of applications, including medical, cooling, fuel cells, lubrication, and precise flow systems. The self-priming CNC-machined alloy construction has a maximum weight of 340 g (see datasheet for variations) and a maximum size of 90 x 53 x 50 mm (see datasheet for variations). Numerous mounting options are available to meet your design and requirement needs.
6. RS PRO 180 Deg port MicroPump + EQi-M Driver
Maximum flow rate: 3.8 l/min
Maximum operating pressure: 1.5 bar
Housing material: Anodized aluminum
IP protection: IP68
High-flow miniature pumps are designed for use with liquids. They are made from CNC-machined alloy material with stainless steel connections. Featuring a brushless centrifugal design and an independent motor controller, these pumps are available in cable connection and submersible versions for various applications. Designed for an 8 mm hose, the flow rate is 10 l/min with a weight of 102 g. They operate quietly and have dimensions of 64 x 32 x 31 mm. The waterproof housing has an IP67 rating.
7. RS PRO Brushless Driver for M500 - 0 to 24v
Suitable pump type: Brushless micro pump
Supply voltage: 12 V
Maximum fluid temperature: +80°C
Brushless micro pump controller. A compact and highly powerful motor controller for RS Pro centrifugal micro pumps. The EQi controller accepts input voltages of up to 30 volts, and the pump speed can be controlled via an integrated potentiometer or an external signal of 0–5 volts. At voltages above 12 V, the controller maintains a constant flow despite increasing back pressure and provides a flatter flow-pressure curve. Installation is straightforward: simply wire the two input terminals, connect the three outputs to the micro pump, and set the jumper position to either the integrated speed control or control via an external 0–5 V signal. Application area: Due to its compact dimensions, easy installation, and lighting efficiency, the EQi controller is ideal for a wide range of applications, such as research and development, laboratory equipment, experimental setups, and manufacturing facilities.
8. RS PRO MicroPump Brushless + EQi Driver
Maximum flow rate = 500 ml/min
Supply voltage = 6 to 24 V
Maximum operating pressure = 8 bar
Housing material = anodized aluminum
Power consumption = 3 to 30 W
IP protection = IP68
Self-priming miniature pumps. These self-priming pumps feature a switchable flow direction. Simple connections and compact dimensions ensure quick and easy installation. The powerful brushless motor guarantees a smooth and constant flow at impressive pressures for a compact liquid pump. Available with standard connections or for mounting on a distributor, these pumps are suitable for a variety of applications, including medical, cooling, fuel cells, lubrication, and precise flow systems. They feature a self-priming design made from CNC-machined alloy material. Maximum weight: 340 g (see datasheet for variations). Maximum size: 90 x 53 x 50 mm (see datasheet for variations). Numerous mounting options are available for different designs and requirements.
9. RS PRO Brushless High Flow Micropump EQi Driver
Maximum flow rate: 850 ml/min
Supply voltage: 6 to 24 V
Maximum operating pressure: 4 bar
Housing material: anodized aluminum
Power consumption: 3 to 30 W
IP protection: IP68
Self-priming miniature pumps are equipped with a switchable flow direction. Simple connections and compact dimensions ensure quick and easy installation. The powerful brushless motor provides a smooth and constant flow at impressive pressures for a compact liquid pump. Available with standard connections or for mounting on a distributor, these pumps are suitable for a variety of applications, including medical, cooling, fuel cells, lubrication, and precise flow systems. The self-priming, CNC-machined alloy construction has a maximum weight of 340 g and maximum dimensions of 90 x 53 x 50 mm. Numerous mounting options are available to meet various design and requirement needs.
10. RS PRO M400K MicroPump 180 Port Waterproof
Max flow rate: 1150 ml/min
Supply voltage: 12 V DC
Input connection size: 3.2 mm hose
Output connection size: 4 mm hose coupling
Max operating pressure: 380 mbar
Housing material: Aluminum alloy
Coupling type: Direct
Power consumption: 5.8 W
Max fluid temperature: +100°C
Input connection: 3.2 mm
Output connection: 4 mm
Input thread: Hose
RS Miniature Centrifugal Pump. A high-quality series of miniature pumps for liquids. Ideal for many general applications, including research and development, medical, aerospace, miniature, and portable devices. These pumps utilize the centrifugal principle for a smooth, pulsation-free flow. They are exceptionally quiet and reliable with a brushless drive motor. A signal output cable can be used to provide optional status and pump performance information. Robust alloy construction, small and lightweight with high performance, brushless drive motor, smooth, pulsation-free flow, exceptionally reliable operation, output signal for performance monitoring, submersible, weatherproof, and with options for connection configuration.
