Best Vents products in the Ventilation fan category
On this page you'll find a ranking of the best Vents products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

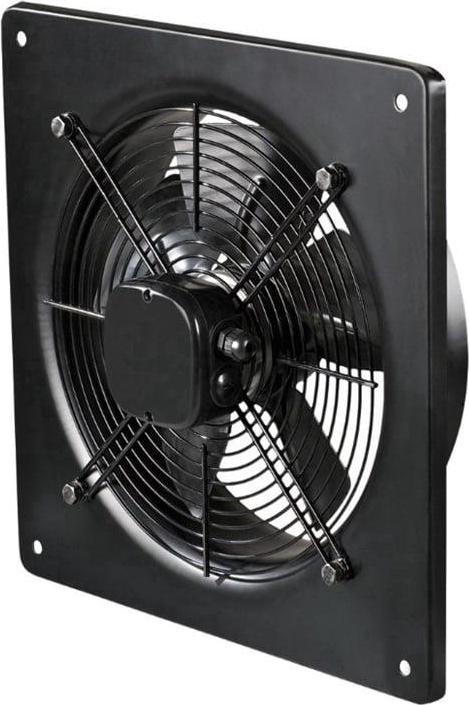

1. Vents Wall fan
Axial industrial wall fans of the OV series are designed for ventilation of various rooms where a high air flow with relatively low resistance of the ventilation system is required. The cover and propeller of the fans are made of steel and coated with a polymer protective layer. The box with the terminal strip is attached to the front grille of the fan. The propeller is driven by a two-, four- or six-pole single- or three-phase asynchronous motor with built-in thermal fuse. Ball bearings guarantee a fan service life of up to 40,000 hours of continuous operation. A speed controller can be used for step-by-step or continuous control. The fans are fastened with screws in a circular hole in the wall.
2. Vents TT 100
This product offers numerous features from the axial fan category as well as high performance from radial fans. It is suitable for ventilation systems that require high pressure, powerful airflow, and low noise levels. Compatible with ventilation ducts with a diameter of 100 to 315 mm. The fan allows for ideal ventilation of humid areas, such as in sanitary facilities or bathrooms, and is also suitable for ventilating apartments, houses, shops, and cafés.

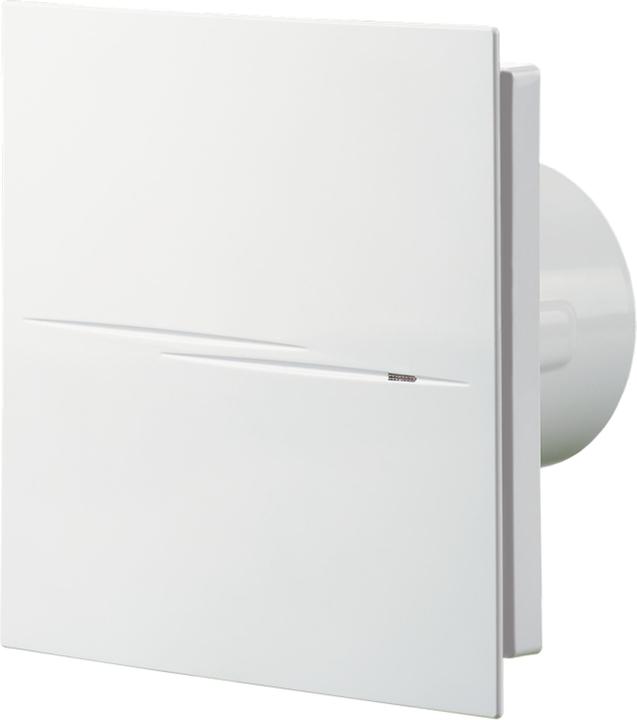

3. Vents Quietline
Dimensions and technical details:
- Voltage: 220-240 V ~ 50 Hz
- Housing colour: white
- Housing material: plastic
- Nominal width: 125 mm
- Speed levels: 1
- Wattage: 13 W
- Current consumption: 0.085 A
- Revolutions per minute: 2250
- Maximum airflow rate: 197 m³/h
- Sound pressure level (Lp-3m): 32 dB(A)
- IP code: IPX4
- Weight: 0.75 kg
- Diameter: 124 mm
- Length: 161.5 mm
- Control: on/off via connection to light switch on-site (switch not included in the delivery)
- Integral protection against thermal overload
- Application: air supply or air extraction depending on the direction of the fan.
4. Vents OV1 150
Dimensions and technical details:
- Voltage: 230 V ~ 50 Hz
- Housing colour: black
- Housing material: powder-coated steel
- Nominal size: 150 mm
- Wattage: 36 W
- Current consumption: 0.26 A
- Revolutions per minute: 1300
- Airflow rate: 200 m³/h
- Sound pressure level (Lp-3m): 33 dB(A)
- Max. temperature of transported air: -30 to +40°C
- IP code: IP24
- Weight: 2.5 kg
- Thermal overload protection
- Application: air supply or extraction depending on the fan position, ventilation systems with low air resistance and demand for high airflow rate
Dimensions in mm:
- Ø D: 162
- Ø: 7
- B: 250
- B1: 210
- L: 120.
5. Vents OV1 200
Dimensions and technical details:
- Voltage: 230 V ~ 50 Hz
- Housing colour: Black
- Housing material: Powder-coated steel
- Nominal size: 200 mm
- Wattage: 43 W
- Current consumption: 0.28 A
- Revolutions per minute: 1300
- Airflow rate: 405 m³/h
- Sound pressure level (Lp-3m): 33 dB(A)
- Maximum temperature of transported air: -30 to +40°C
- IP code: IP24
- Weight: 3 kg
- Thermal overload protection
- Application: Air supply or extraction depending on the fan position, suitable for ventilation systems with low air resistance and a demand for high airflow rate
Dimensions in mm:
- Ø D: 208
- Ø: 7
- B: 312
- B1: 260
- L: 120.
6. Vents TT 150
Dimensions and technical details:
- Voltage: 220-240 V ~ 50 Hz
- Housing colour: white
- Housing material: robust plastic
- Nominal size: 150 mm
- Wattage min./max.: 30 / 60 W
- Power consumption min./max.: 0.17 / 0.27 A
- Revolutions per minute min./max.: 1680 / 2460
- Airflow rate min./max.: 405 / 520 m³/h
- Sound pressure Lp-3m min./max.: 33 / 44 dB(A)
- Max. temperature for continuous operation: 60°C
- IP code: IPX4
- Weight: 3.19 kg
- Ball-bearing motor
- Mounting options: any position
- Motor unit can be removed quickly and easily for cleaning and maintenance
- Application: ventilation systems requiring high pressure and low noise level
- Ideal for air extraction in damp rooms of residential and commercial properties
Model: TT 150
- Ø D: 146 mm
- B: 223 mm
- H: 250 mm
- L: 295 mm.

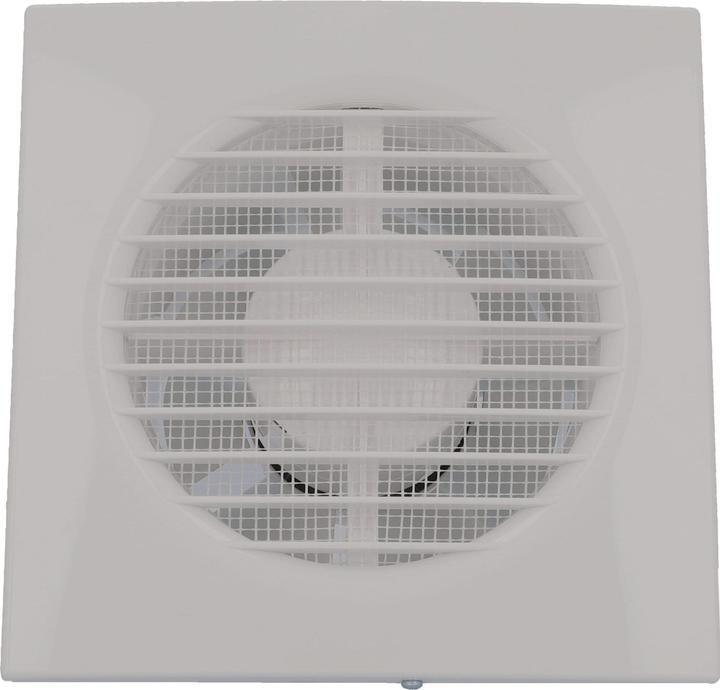

7. Vents Wall fan SIMPLE 120
Quiet and powerful wall fan from VENTS. Ideal for rooms that cannot be ventilated.
8. Vents Silent Fan / Timer&Humid Quiet100th Prof
Dimensions and technical details:
- Voltage: 220-240 V ~ 50 Hz
- Housing colour: white
- Housing material: UV-resistant ABS
- Nominal size: 100 mm
- Wattage: 7.5 W
- Current consumption: 0.05 A
- Speed levels: 1
- Maximum airflow rate: 90 m³/h
- Sound pressure level (Lp-3m): 26 dB(A)
- IP rating: IP45
- Diameter of pipe connection: 99 mm
- Front cover dimensions: 200 x 200 mm x 49 mm
- Total depth: 130 mm
- Weight: 0.7 kg
- Adjustable shut-off timer (2 - 30 min) and humidity sensor (60 - 90%): the fan turns off after the pre-set time once the humidity level falls below the pre-set value
- Thermal overload protection
- Integral backdraught shutter prevents cold air from infiltrating
- Mounting options: wall or ceiling
- Application: direct connection to the ventilation shaft.

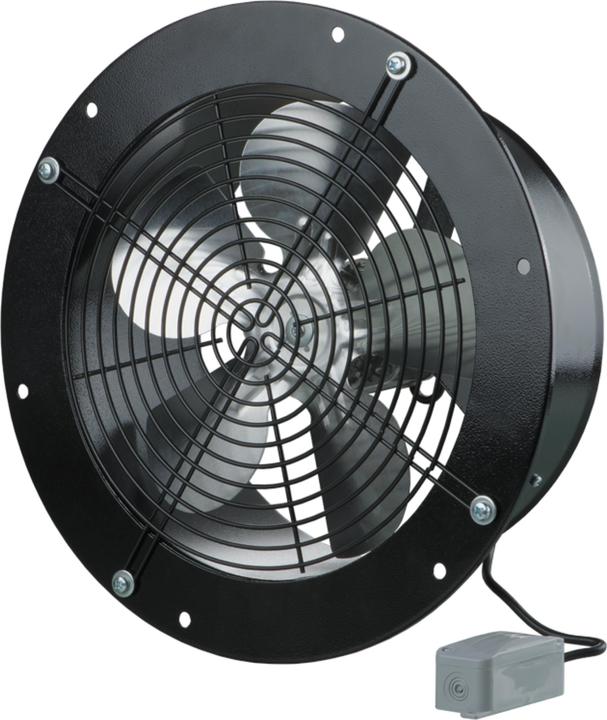

9. Vents OVK1 315
Dimensions and technical details:
- Voltage: 230 V ~ 50 Hz
- Housing colour: black
- Housing material: powder-coated steel
- Nominal size: 315 mm
- Wattage: 110 W
- Current consumption: 0.75 A
- Revolutions per minute: 1300
- Airflow rate: 1700 m³/h
- Sound pressure level (Lp-3m): 42 dB(A)
- Maximum temperature of transported air: -30 to +40°C
- IP code: IP24
- Weight: 5.1 kg
- Thermal overload protection
- Application: air supply or extraction depending on the fan position, ventilation systems with low air resistance and demand for high airflow rate
Dimensions in mm:
- Ø D: 312
- Ø D1: 390
- Ø D2: 420
- Ø d: 9
- L: 170.

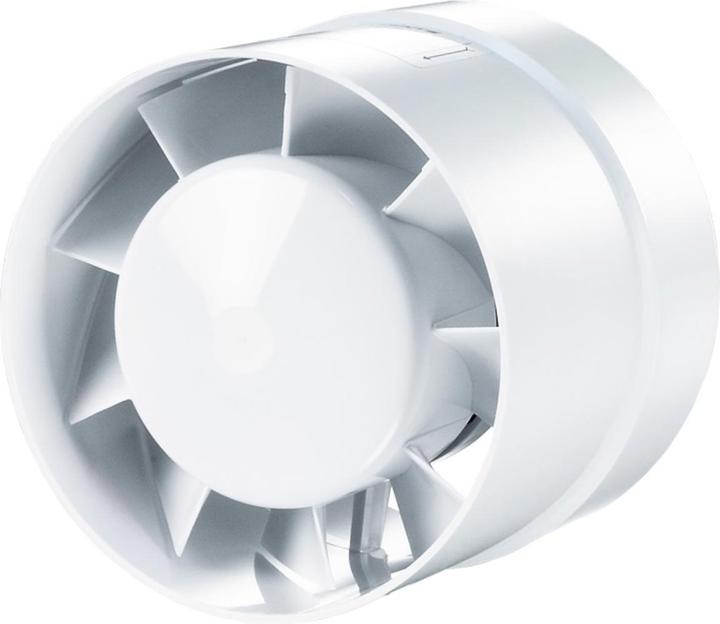

10. Vents VKO L 150
Dimensions and technical details 220-240 Volt ~ 50 Hertz Various options available: VKO L, VKO L Turbo Colour: white Material: robust UV-resistant ABS material Nominal diameter: 150 mm IP rating: IPX4 Thermal overload protection Ball-bearing motor Control: on / off via light switch (to be provided on-site, not included in the delivery) Mounting options: inserted directly into the pipe, compatible with PVC and flexible pipes Transport of small to medium-rated air volumes over short distances in systems with low air resistance Application: supply or extraction of air (depending on the mounting position) in residential and commercial properties (utility rooms, kitchens, bathrooms) Model Wattage (W) Current consumption (A) Airflow (m³/h) Sound pressure Lp-3m (dB(A)) Speed (rpm) Weight (kg) 150 VKO L 24 0.13 298 40 2400 0.8 kg 1.
