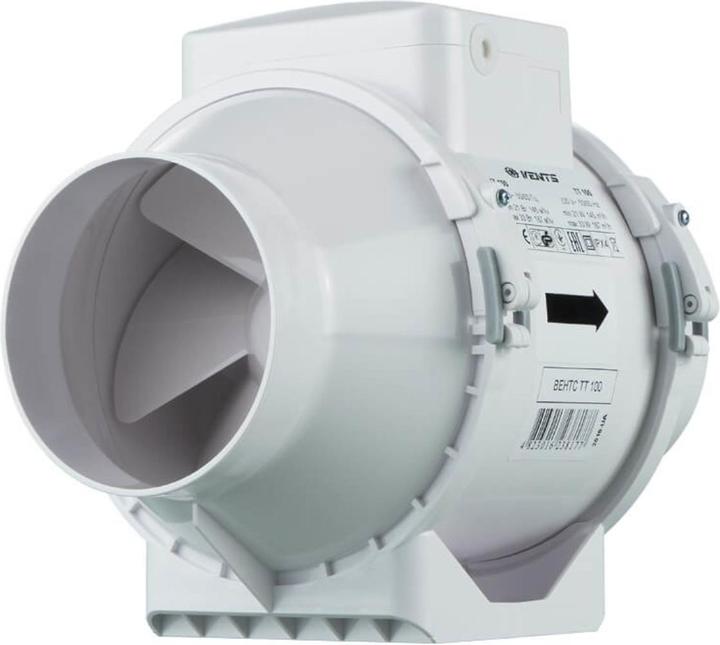

Vents TT 150

Dimensions and technical details:

• Voltage: 220-240 V ~ 50 Hz
• Housing colour: white
• Housing material: robust plastic
• Nominal size: 150 mm
• Wattage min./max.: 30 / 60 W
• Power consumption min./max.: 0.17 / 0.27 A
• Revolutions per minute min./max.: 1680 / 2460

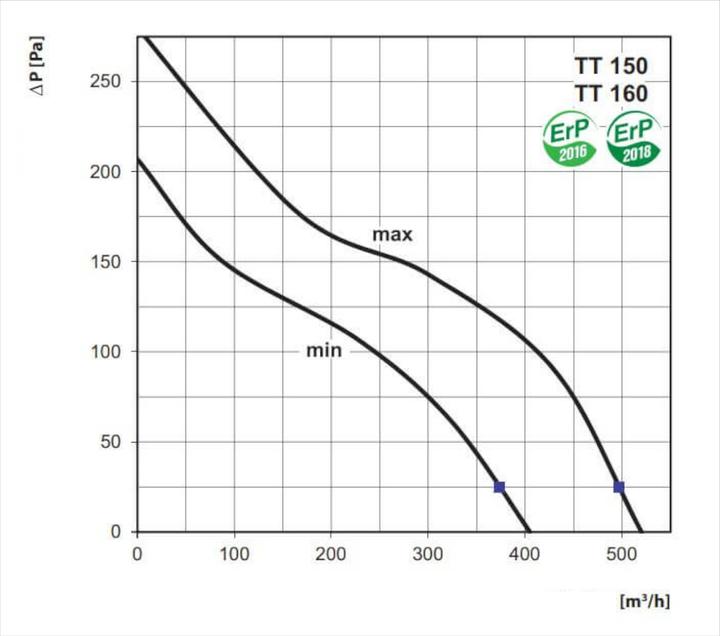

• Airflow rate min./max.: 405 / 520 m³/h
• Sound pressure Lp-3m min./max.: 33 / 44 dB(A)
• Max. temperature for continuous operation: 60°C
• IP code: IPX4
• Weight: 3.19 kg
• Ball-bearing motor
• Mounting options: any position
• Motor unit can be removed quickly and easily for cleaning and maintenance
• Application: ventilation systems requiring high pressure and low noise level
• Ideal for air extraction in damp rooms of residential and commercial properties

Model: TT 150

• Ø D: 146 mm
• B: 223 mm
• H: 250 mm
• L: 295 mm.
