Best Peaktech products in the Multimeter category
On this page you'll find a ranking of the best Peaktech products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

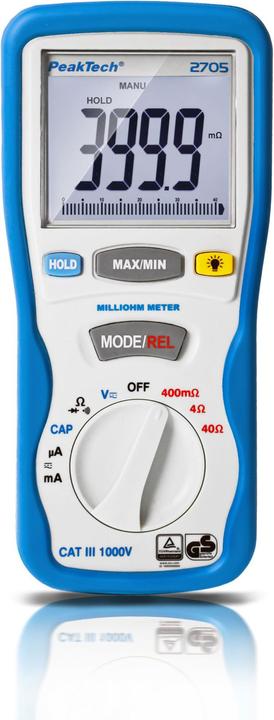

1. Peaktech P 2705 Milliohmmeter
The PeakTech 2705 is a digital milliohm meter that allows for resistance measurements across a total range from 1 mΩ to 40 Ω. Its high accuracy enables the detection of even the smallest differences in resistance values, such as those found in motor coils, generators, transformers, and much more. During the resistance measurement, a constant current is applied to the object being measured, and the measurement value is determined by the voltage drop that occurs due to the resistance. Due to its versatile applications for conducting resistance measurements, the PeakTech 2705 is suitable for professional use, education, as well as hobbyists.
2. Peaktech P 1650 Current clamp meter
The PeakTech 1650 is a measuring instrument for AC and DC currents up to 400 A via a current clamp for conductor diameters up to 30mm. Current and voltage measurements are made as True RMS (true effective value) measurements, which means that the measured values are displayed correctly even if the waveform deviates from a sine wave. Current clamps of this type are ideal for current measurement in electrical systems and control cabinets, since only individual wires are passed through the clamp jaws for non-contact current measurement and no electrical connections need to be cut. In addition, this model has extensive multimeter functions for voltage, resistance, frequency, capacitance and temperature measurement. Continuity tests with audible signal and diode tests can also be performed. Due to its high functionality and easy handling, this current clamp is suitable for the electronics specialist as well as for the service technician or hobby user.

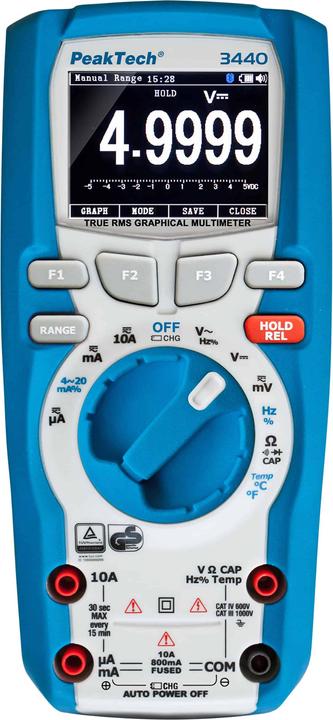

3. Peaktech P 3440 Graphical digital multimeter
The PeakTech 3440 is an innovative graphic multimeter featuring a 50,000-count color TFT display for particularly precise measurements with a high DC basic accuracy of 0.05%. The internal data logger allows for data recording over several hours, which can later be transferred to a Windows PC. Internally stored measurement recordings can also be accessed on the multimeter itself or on a PC as a trend curve and displayed graphically. Via Bluetooth, measurements can be displayed live through an app for Android and iOS devices, recorded in tabular form, and sent via email for further processing. This multimeter offers a wide range of measurement functions for DC and AC voltage measurements (including ACV + DCV), DC and AC current measurements, resistance, capacitance, frequency, and temperature, with AC voltage and current being captured as true RMS values. With its extensive measurement functions and intuitive operation, this device is ideal for any electronics technician, engineer, or technician who values a precise, robust, and technically advanced multimeter.

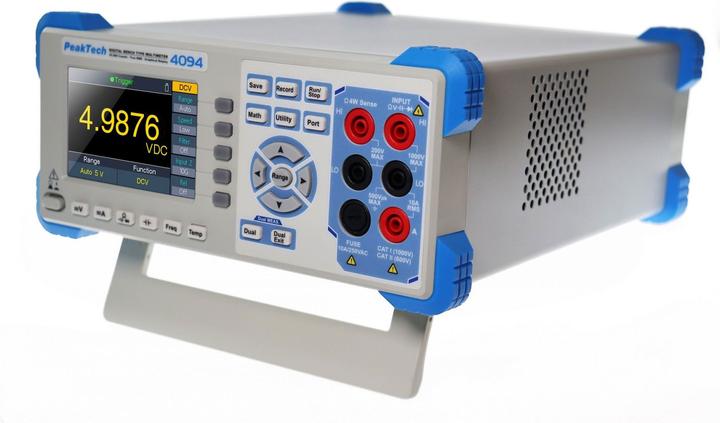

4. Peaktech P 4094 Graphical desktop multimeter
Graphical bench multimeter, 55,000 counts with TFT. This precision bench multimeter with a TFT graphical display for high-resolution representation of measurement values offers an excellent performance-to-price ratio. This model is equipped according to technical standards and features a variety of special functions, such as dual measurement of two different measurement functions, a measurement rate of up to 65 measurements per second, and many other graphical representations or mathematical functions. The versatile functions are complemented by true RMS measurements up to 1 kHz. For software control or via SCPI protocol, the model is equipped with an RS-232 interface.

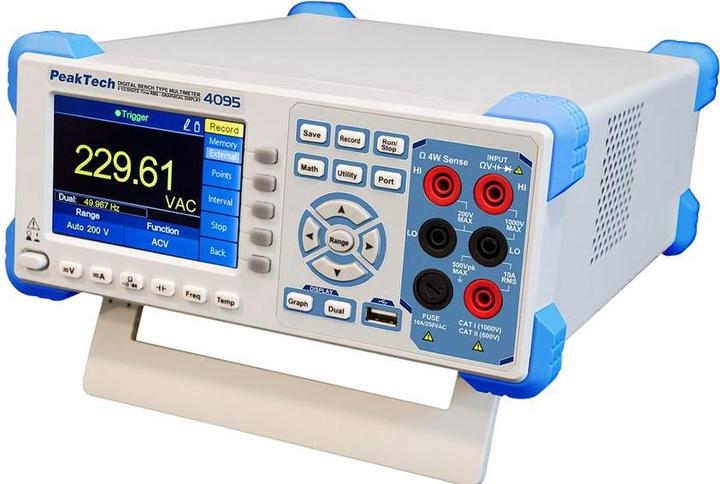

5. Peaktech 4095 Desktop multimeter, digital, 60000 counts, USB, LAN
The Peaktech 4095 bench multimeter is a state-of-the-art digital measuring device designed for precise and versatile measurements in various applications. With an impressive resolution of 60,000 counts, this multimeter provides accurate readings of electrical quantities. It supports a wide range of measurement functions, including AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature. The TFT display allows for a clear and organized presentation of measurement values, while TRMS technology ensures accurate measurements with varying current types. The device is calibrated and offers additional features such as continuity testing and an integrated data logger that facilitates easy recording and analysis of measurement data. Equipped with USB and LAN interfaces, the multimeter can be seamlessly integrated into existing systems, enabling straightforward data transfer.
- Maximum resistance measurement range of 100 MΩ and minimum resistance measurement range of 600 Ω
- Temperature measurement range from -200 to 1372 °C
- Frequency measurement range from 20 Hz to 1 MHz
- Safety category CAT I 1 kV and CAT II 600 V
- Integrated data logger for recording measurement data.
6. Peaktech P 1635 Current clamp meter
The PeakTech 1635 is an affordable and practical clamp meter for measuring small direct and alternating currents up to 2 A with a resolution of 1 mA. With clamp measurement, electrical conductors do not need to be disconnected to perform a current measurement. The device measures current indirectly through the surrounding magnetic field, meaning it measures contactlessly when the jaws of the clamp encircle the live conductor (single wire). Since the sum of all incoming and outgoing currents neutralizes the magnetic field, leakage current can be measured by encircling all wires of a cable. In the automotive sector, this measuring device is ideal for capturing discharge currents of the car battery when the ignition is off, allowing for quick and reliable identification of faults. In addition to measuring small currents, the PeakTech 1635 can also measure larger direct and alternating currents up to 80 A with a resolution of 0.1 A, making it suitable for use in hobbies, crafts, and industry.

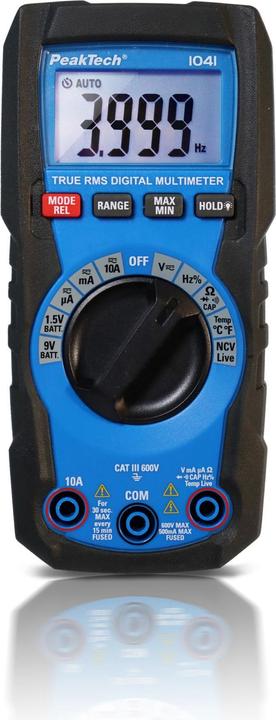

7. Peaktech P 1041 TrueRMS Digital Multimeter
The new PeakTech 1041 is a compact TrueRMS multimeter housed in a sturdy casing, designed for use in electrical work. Despite its small size, this new development offers all the essential measurement functions. Notably, it features the ability to check batteries with the built-in battery tester. Additionally, this model provides frequency measurement, capacitance measurement, and a non-contact voltage detector. The measurement range selection is automatic, allowing for quick and effective determination of the quantities to be measured. With the live function, single-pole phase tests can be conducted. User safety is ensured by the overvoltage category III up to 600 V and the double-insulated housing, while batteries and high-quality ceramic fuses are easily accessible for quick replacement through the battery compartment on the back of the device.

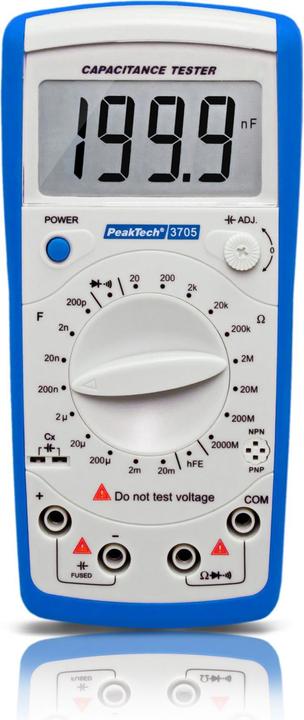

8. Peaktech P 3705 Resistance and capacitance tester
This digital capacitance meter is a reliable handheld measuring device with a 3 1/2-digit display. The two main functions of the PeakTech 3705 are performing capacitance and resistance measurements. Due to the high accuracy of the respective measurement values, this capacitance meter can determine any capacitance and resistance values with high precision. Furthermore, it is capable of conducting diode, continuity, and transistor tests. The integrated adjustment knob on the front allows for setting the zero point before capacitance testing to ensure precise measurement results. The PeakTech 3705 is the optimal companion for any measurements in areas where the determination of resistance values and capacitors is required.

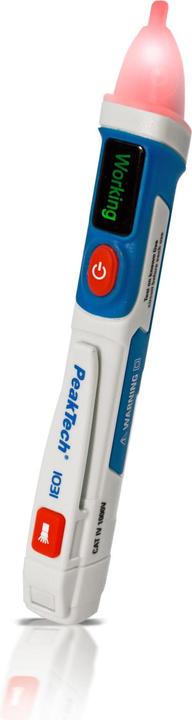

9. Peaktech P 1031
The new voltage tester P 1031 is used for non-contact detection of alternating voltages on live wires and devices. By switching the measurement range, it is possible to detect even low voltages down to a minimum of 50V AC with the P 1031. Its "Working" indicator quickly shows that the voltage tester is turned on and can perform the respective measurement. If there is an alternating voltage present at the measurement point, it is visually indicated by a red flashing LED, and the built-in buzzer sounds. Additionally, a vibration motor ensures that detected voltages are noticed even in loud and chaotic work environments. The integrated LED flashlight can be turned on at any time, even when the actual voltage tester is switched off. Furthermore, the device can be conveniently and securely transported with the pocket clip. The ergonomic and modern design, along with many practical features and high user safety with overvoltage category IV 1000 V, perfectly rounds out the profile of the PeakTech 1031 voltage tester.
10. Peaktech P 1010 Contactless magnetic field tester
The PeakTech 1010 is a practical testing device in pen form, ideally suited for checking magnetic fields as well as the proper functioning of coils, such as relays and solenoid valves. The magnetic field detector operates contactlessly, so opening the housing is usually not necessary. When a magnetic field is detected, the testing tip lights up permanently in blue, and for pulsed relays, it flashes in sync with the control signal. With the included test permanent magnet, the functionality of the magnetic field detector can be checked before each measurement.
