Best Monacor products in the Multimeter category
On this page you'll find a ranking of the best Monacor products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

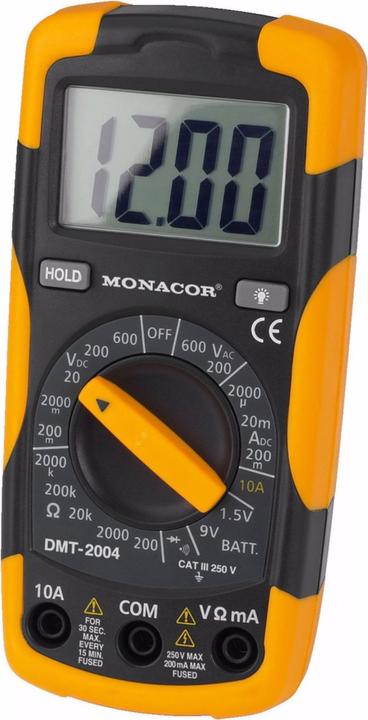

1. Monacor Digital Multimeter
Digital multimeter for universal use
- 2000-digit resolution
- Voltage measurement up to DC/∼ 250 V
- Current measurement up to DC 10 A
- Resistance measurement up to 2 MΩ
- Battery test for 9 V block and 1.5 V cells
- Acoustic continuity test
- Diode test
- Data hold (measurement storage)
- LC display with switchable backlight
- Overload protection
- Supplied with test leads
Safety and warning notices
This device can measure potentially lethal voltages. Special caution is required when measuring voltages above 42 V. Wear safety gloves to protect against electric shocks. When applying the test probes, ensure that your fingers are behind the slip guard. Do not take measurements if the device or test leads are damaged. Damaged test leads must be replaced with original test leads. Use the device only indoors and protect it from dripping and splashing water, high humidity, and heat (permissible operating temperature range 0 - 40 °C). If not used for an extended period, remove the batteries. This will prevent damage to the device in case of battery leakage. If the device is to be permanently taken out of service, hand it over to a local recycling facility for environmentally friendly disposal. Batteries and accumulators must not be disposed of in household waste. Dispose of them according to local regulations in special waste.

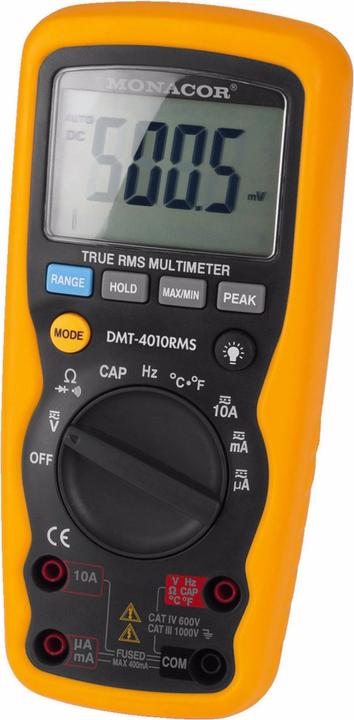

2. Monacor Digital Multimeter, IP67
Digital multimeter for professional use
- True RMS measurement method
- Dust and water protection according to IP class 67 with covered measurement sockets
- Range auto-selection for faster measurements
- 4000-digit resolution
- Additional bar graph display
- Voltage measurement up to DC/∼ 1000 V
- Current measurement up to DC/∼ 10 A
- Frequency measurement up to 10 MHz
- Resistance measurement up to 40 MΩ
- Capacitance measurement up to 40 mF
- Temperature measurement from -20 °C to +760 °C
- Acoustic continuity test
- Diode test
- Data hold (measurement storage)
- Peak hold
- Maximum and minimum value recording
- LC display with switchable backlight
- Automatic shutdown
- Overload protection
- Supplied with test leads and protective case
Safety and warning notices
This device can measure potentially lethal voltages. Special caution is required when measuring voltages above 42 V. Wear safety gloves to protect against electric shocks. When connecting the test probes, ensure that your fingers are behind the slip guard. Do not take measurements if the device or test leads are damaged. Damaged test leads must be replaced with original test leads. Use the device only indoors and protect it from dripping and splashing water, high humidity, and heat (permissible operating temperature range 0 - 40 °C). Remove batteries or accumulators if the device will not be used for an extended period. This will protect the device from damage in the event of battery leakage.

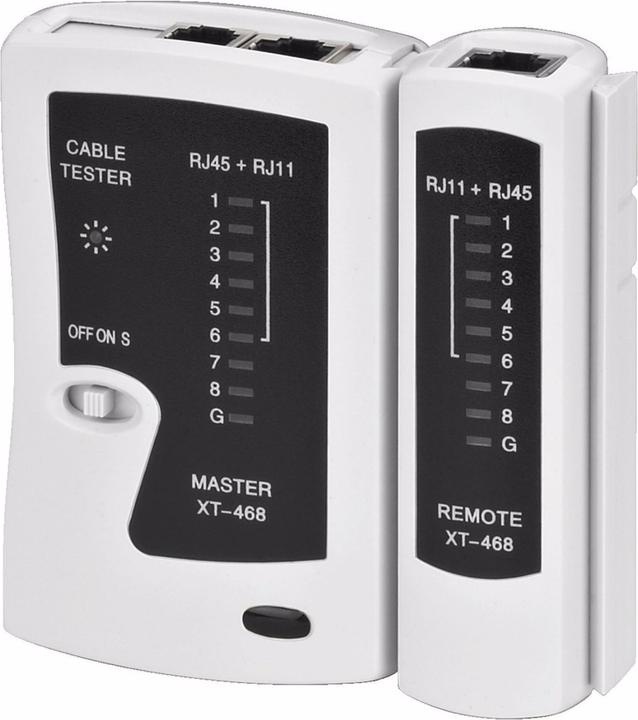

3. Monacor Line tester for Cat-5/Cat-6 and ISDN
Line tester for continuity testing of Cat-5, Cat-6 and ISDN network lines
- Connection test with LED display for 8 single wires and shielding
- Detection of continuity, false connection, open circuit, short circuit, crossover cable and grounding
- Connection compatibility with the following modular plugs: RJ45 (8P8C), RJ12 (6P6C), RJ11(6P4C, 6P2C)
- Supported network standards: Token Ring, 10Base-T, 10Base-T2, 285A, TIA568A/568B
- Separate receiver for particularly long and complex cables
- Main unit and separate receiver can be attached to each other via a side guide rail
- Power supply via 9 V block battery (not included)
- Supplied with protective bag.
