Best ABB products in the Control technology accessories category

On this page you'll find a ranking of the best ABB products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

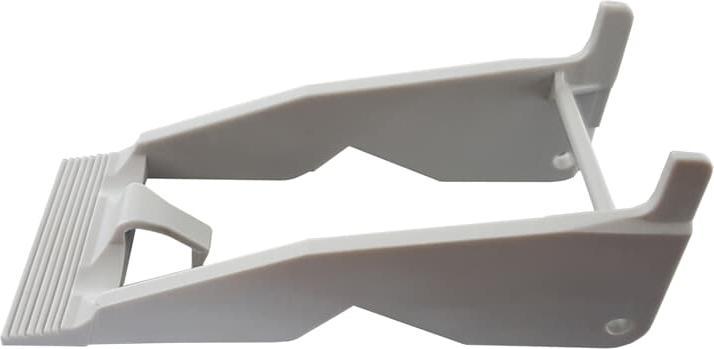

1. ABB Mounting adapter Holder, for use with CR-M socket

As an interface, interface relays connect the electronic control level, such as PLCs, with the level of sensors and actuators. They perform various functions: switching DC or AC loads with different resistive, inductive, and capacitive components, switching in the voltage range from a few mV to 250 V, switching in the current range from a few mA to 12 A, amplifying weak control signals, providing potential separation between control and load circuits, and signal multiplication. The CR-M series offers 13 different coil voltages with 2-4 changeover contacts. A built-in test button for manual operation and locking of the output contacts, as well as relay variants with or without built-in LEDs, can be selected. Two socket variants are available: standard socket and logical socket. Plug-in functional modules such as reverse polarity protection, freewheeling diodes, RC circuits, or surge protection expand the application areas of the plug-in miniature relays.

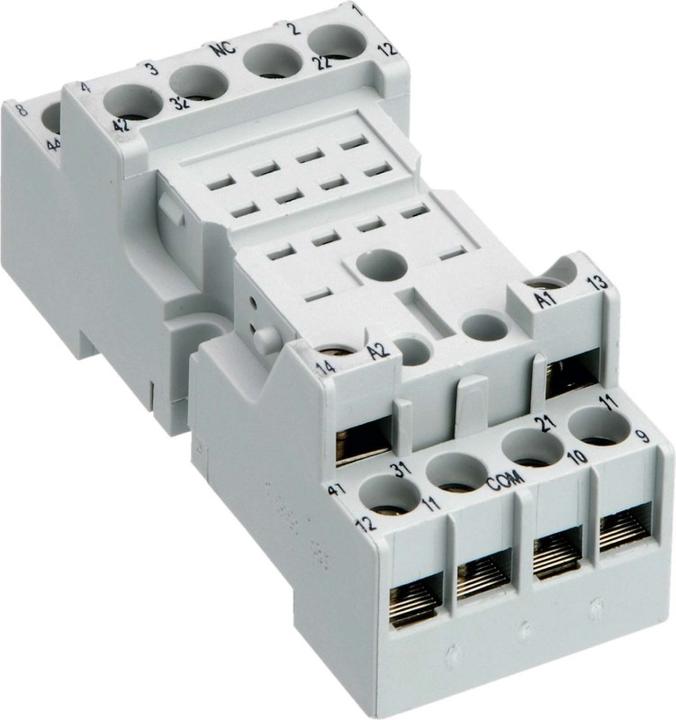

2. ABB Relay socket CR-M series

ABB Relay Socket CR-M Series (1SVR405651R1100).

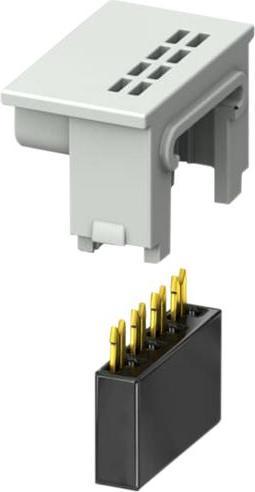

3. ABB 35 pieces Stotz S&J connector set CMS-820 / 484419

Connector set CMS-820 for connecting the CMS flat ribbon cable with the CMS sensors and the control units CMS-600 and CMS-770. The cable assembly is incredibly easy. The cutting clamp connectors can be connected to the flat ribbon cable with a light push. Fast, simple, reliable.

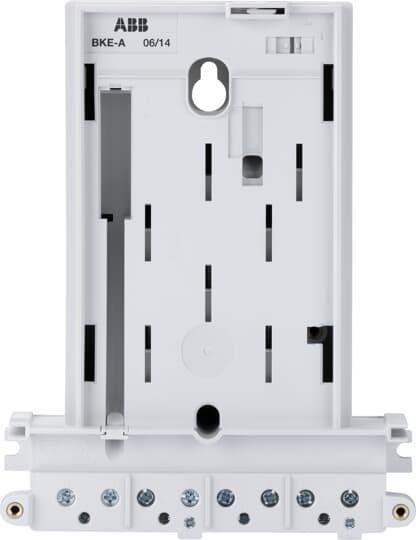

4. ABB Bke-A Kld

ABB Stotz S&J Adapter with Terminal Cover BKE-A KLD

Manufacturer: ABB Stotz S&J
Description: Adapter with Terminal Cover
Type: BKE-A KLD
Accessory/Spare Part Type: Adapter Plate
Accessory: No
Spare Part: No

Further Details: Adapter plate according to DIN VDE 0603-3-2 for single-phase or three-phase connection for the installation of an electronic household meter (eHZ). It is designed for mounting on a meter location with a meter cross. The adapter plate features a terminal connection block and a sealable terminal cover according to DIN 43857-4.
EAN: 4016779876674.

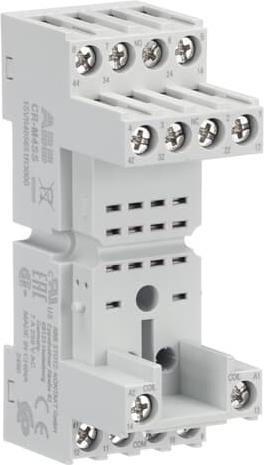

5. ABB Relay socket for use with CR-M interface relay CR-M, DIN rail

ABB Stotz S&J standard socket CR-M4SS

Manufacturer: ABB Stotz S&J
Designation: Standard socket
Type: CR-M4SS
Electrical connection type: Screw connection
Mounting type: Top-hat rail TH35
With removable terminals: No
Functional supplement possible: No
Width: 27 mm
Height: 42.5 mm
Depth: 82 mm

As an interface, interface relays connect the electronic control level, for example, PLC, with the level of the sensors/actuators. They perform various functions including switching of DC or AC loads with different resistive, inductive, and capacitive components, switching in the voltage range from a few mV to 250 V, switching in the current range from a few mA to 12 A, amplification of weak control signals, potential separation of control and load circuits, and signal multiplication. The CR-M series has 13 different coil voltages with 2-4 change-over contacts. A built-in test button for manual operation and interlocking of the output contacts, as well as relay variants with or without built-in LED, can be selected. Two base variants are offered: standard socket and logical socket. Pluggable function modules such as reverse polarity protection, free-wheeling diode, RC elements, or overvoltage protection extend the areas of application of the pluggable miniature relays.

6. ABB CMS-120PS

ABB Stotz S&J Open-Core Sensors 80A CMS-120PS

Manufacturer: ABB Stotz S&J
Designation: Open-Core Sensors 80A
Type: CMS-120PS
Starting value measurement range current: 0.1 A
Ending value measurement range current: 80 A
Frequency of rated current: 50 Hz
Type of analog output: other
Mounting type: other
Integrated configuration function: yes
With switching output: no

The CMS current measurement sensors are suitable for use with the ABB Energy Monitoring InSite SCU100 and CMS-700. These universally applicable sensors for cable mounting ensure precise and effective measurement with a mounting width of 18 mm. Due to their unique compactness, the CMS sensors are also ideal for retrofitting in existing installations. The sensors measure TRMS, AC and DC currents (current, min/max, and hold values) and transmit these values via a 4-pin flat ribbon cable to the Control Unit. They comply with DIN EN 61010-1.
EAN: 7612271452957.

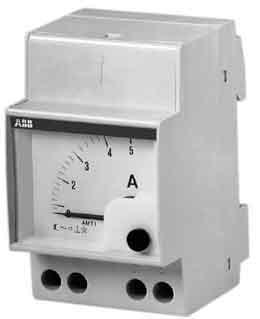

7. ABB AMT1-A1 Ammeter analogue 2CSM320250R1001

8. ABB 1SFA616920R8030

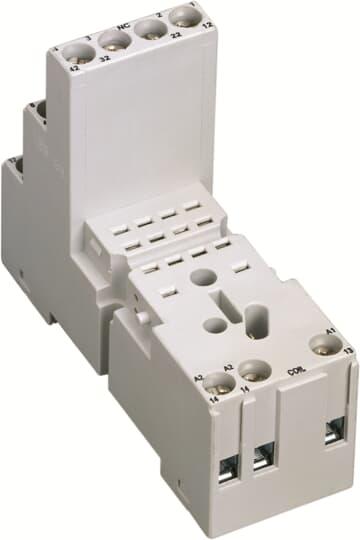

9. ABB Standard socket

ABB Stotz S&J standard socket CR-M3SS

Manufacturer: ABB Stotz S&J
Designation: Standard socket
Type: CR-M3SS
Electrical connection type: Screw connection
Mounting type: Top-hat rail TH35
With removable terminals: No
Functional supplement possible: No
Width: 27 mm
Height: 42.5 mm
Depth: 82 mm

ABB Stotz S&J standard socket CR-M3SS: further details

As an interface, interface relays connect the electronic control level, for example, PLC, with the level of the sensors/actuators. In doing so, they take over various functions: switching of DC or AC loads with different resistive, inductive as well as capacitive components, switching in the voltage range from a few mV to 250 V, switching in the current range from a few mA to 12 A, amplification of weak control signals, potential separation of control and load circuits as well as signal multiplication. The CR-M series has 13 different coil voltages with 2-4 change-over contacts. A built-in test button for manual operation and interlocking of the output contacts, as well as relay variants with or without built-in LED, can be selected. Two base variants are offered: standard socket and logical socket. Pluggable function modules such as reverse polarity protection, free-wheeling diode, RC elements, or overvoltage protection extend the areas of application of the pluggable miniature relays.

10. ABB Interchangeable scale for AMT 1 ammeter SCL1- 2CSM110189R1041

ABB Stotz S&J Changeover Scale SCL 1/100

Manufacturer: ABB Stotz S&J
Designation: Changeover Scale
Type: SCL 1/100
Unit of Measurement: Other
Nominal End Value of the Scale: 100
Overcurrent Scale: No
Width of the Measuring Scale: 52.5 mm
Height of the Measuring Scale: 85 mm
Max. Pointer Deflection: 90 °
Mounting Type: DIN Rail

Changeover scale SCL suitable for use with analog ammeters and voltmeters.
