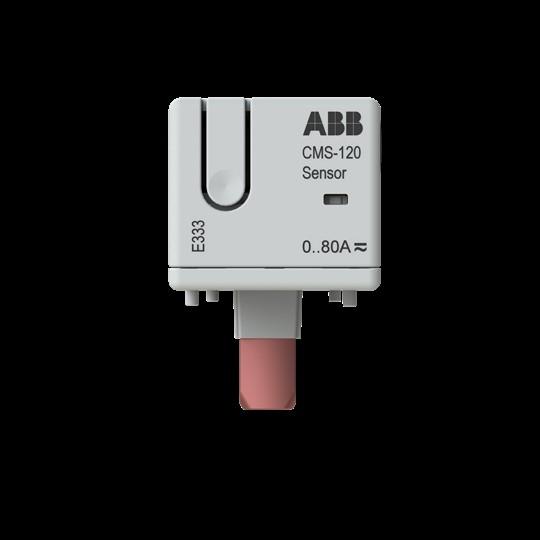

ABB CMS-120PS

ABB Stotz S&J Open-Core Sensors 80A CMS-120PS

Manufacturer: ABB Stotz S&J
Designation: Open-Core Sensors 80A
Type: CMS-120PS
Starting value measurement range current: 0.1 A
Ending value measurement range current: 80 A
Frequency of rated current: 50 Hz
Type of analog output: other
Mounting type: other
Integrated configuration function: yes
With switching output: no

The CMS current measurement sensors are suitable for use with the ABB Energy Monitoring InSite SCU100 and CMS-700. These universally applicable sensors for cable mounting ensure precise and effective measurement with a mounting width of 18 mm. Due to their unique compactness, the CMS sensors are also ideal for retrofitting in existing installations. The sensors measure TRMS, AC and DC currents (current, min/max, and hold values) and transmit these values via a 4-pin flat ribbon cable to the Control Unit. They comply with DIN EN 61010-1.
EAN: 7612271452957.
