Wiltec Pressure Switch EPC-5 230V with 2 Cables for Domestic Waterworks & Pumps with Dry-Run Protection

With this EPC-5 pressure switch and two cables, you ensure a constant water pressure when using domestic waterworks, garden pumps, and other water pumps. The switch monitors the water pressure and turns off the pump as soon as the defined pressure is reached. If the pressure drops, the pressure switch ensures that the pump is turned back on.

Thanks to the pump control, you can automatically start and stop the water pump depending on the opening and closing of the respective consumer. In case of water shortage, the pump stops, and the dry run protection is activated.

The pump control consists of a hydraulic part and a replaceable electronic part:

The hydraulic part includes:
• a shut-off valve
• a valve that responds to flow changes
• a molded and reinforced plastic body
• a membrane and spring that respond to pressure changes
• a safety valve to prevent water leakage in case of membrane damage

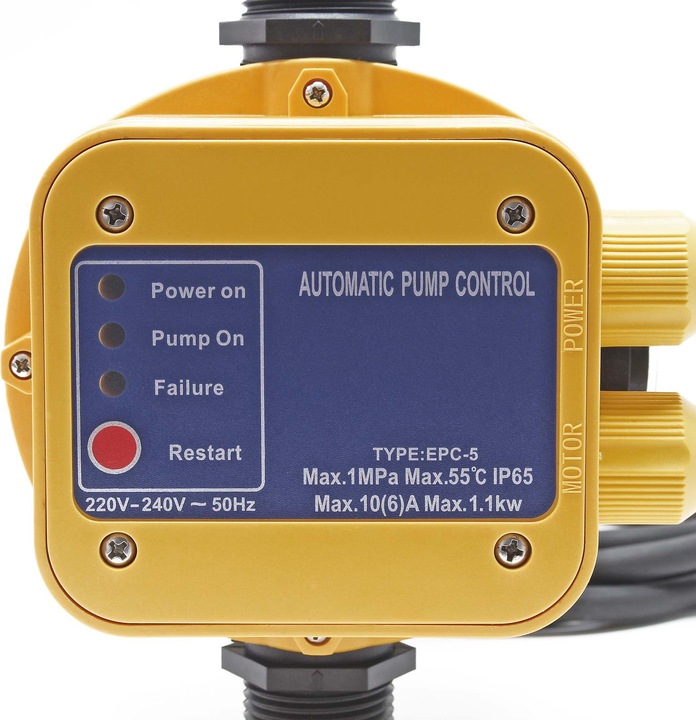

The electronic part includes:
• a sealed housing made of self-extinguishing, molded plastic
• a single, tested, and certified electronic board with insulated tracks
• a relay with a switching capacity of approximately 100,000 cycles under continuous operation with a maximum load of 1.1 kW
• a varistor for surge protection

If your pump has a power output greater than 1.1 kW, you should use a commercially available contactor or a corresponding power relay. A 380-V contactor can also control 380/400-V three-phase pumps.

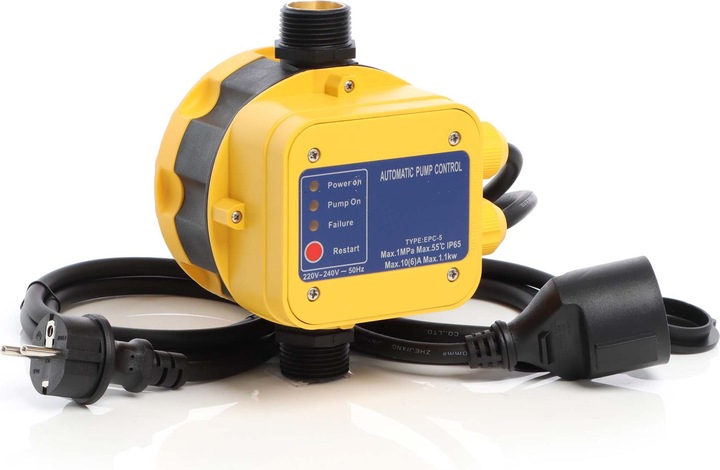

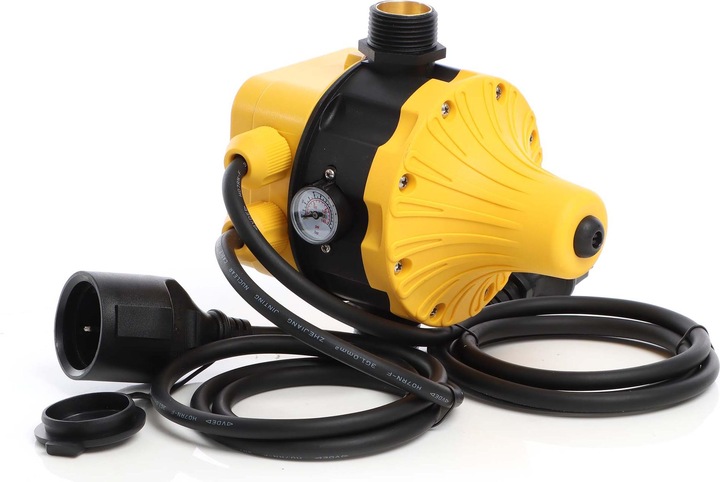

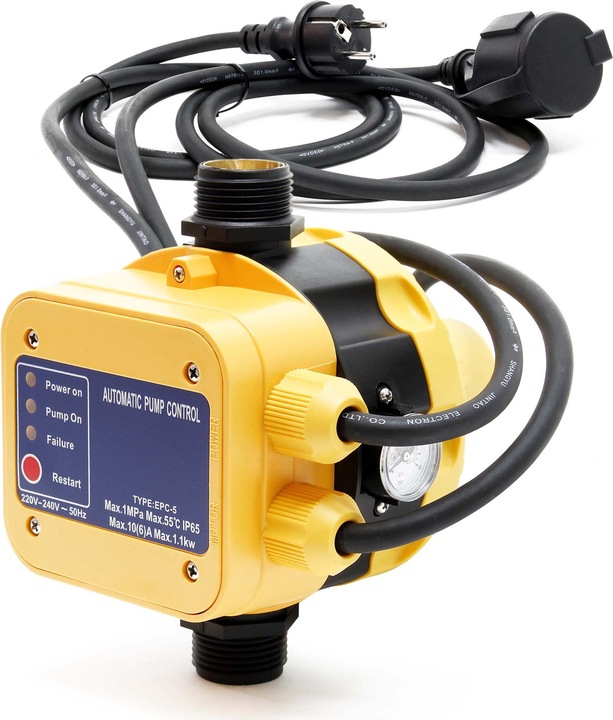

The pressure switch comes with two cables (protective contact coupling/plug).
