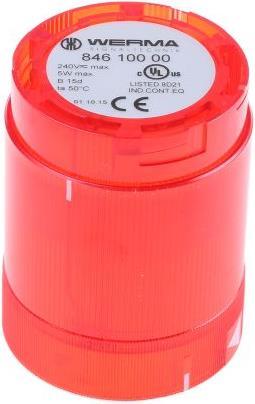

Name: Permanent filament beacon,red,50mm
Brand: Werma
SKU: 9898110
Price: 24.16 CHF
Availability: InStock

productDetailPageQuery

Werma

Area: KombiSIGN 50
Series: 846
Module Type: Signal light
Power Type: AC, DC
Light Type: Continuous
Lens Color: Red
Lamp Type: Incandescent
Supply Voltage: 230 V AC, 24 V AC/DC

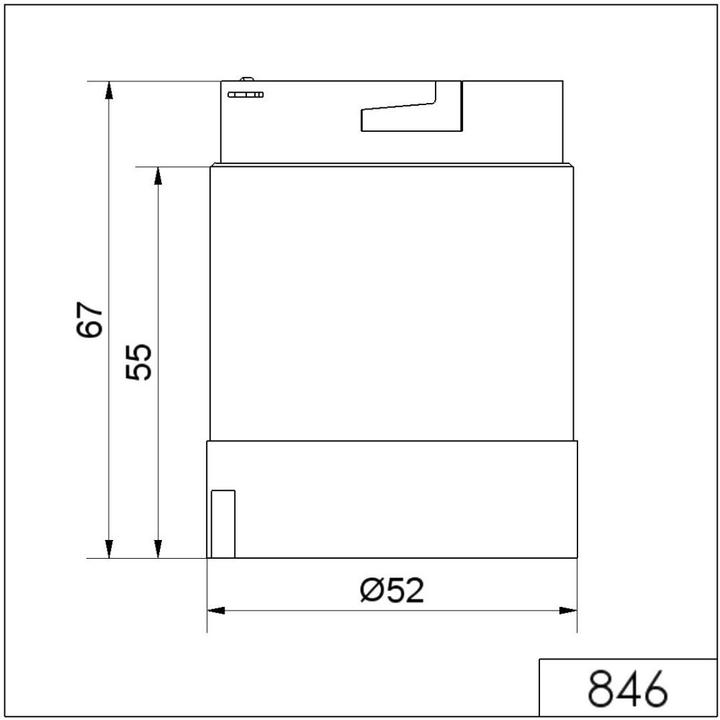

Height: 67 mm
Base Diameter: 50 mm
Max Temperature: +50 °C

Meets the LVD Directive 73/23/EEC and the EMC Directive 89/336/EEC. Listed in UL, CSA, VDE. Lamps are not included and must be ordered separately. Not compatible with KombiSIGN 70/71. Stackable signal tower – KombiSIGN 50, 50 mm, IP54. The modular stackable signal tower WERMA KombiSIGN 50 is the ideal solution for the increased demands of safety, machine productivity, and reduced downtime. Each KombiSIGN module is equipped with a bayonet lock with an integrated contact system. The modular design of these stackable towers allows for quick and easy installation. Simply align the white markings and turn them slightly to lock into place.

Features and benefits:
- Suitable for machines and manual Andon display
- Modular system allows for completely free combination of optical and acoustic signal elements
- Seconds-fast mechanical and electrical connection of the elements via a bayonet connection system
- Absolutely safe replacement of elements (contact voltage safe) without tools
- Protection class IP54 for use under normal conditions
- Up to 4 elements can be mounted on a connection base
- Flexible combination of optical and acoustic elements
- Optical isolation, as the O-ring seal prevents the illumination of adjacent elements
- The operating voltage of the permanently white-light emitting element depends on the installed bulb
- Buzzer, 80 dB, continuous or pulsing tone, adjustable via a connection joint in the unit
- Operating temperature range: -20 to +50 °C
- Polyamide housing with polycarbonate lenses, Ø 50 mm.
