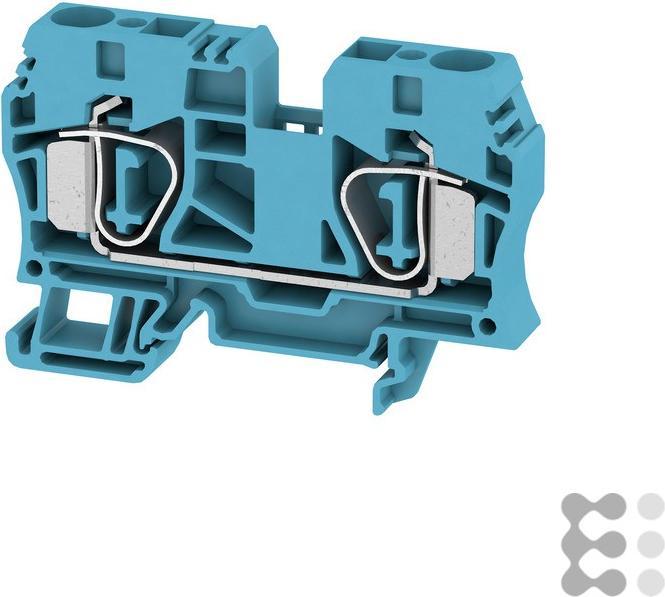

Weidmüller Terminal Block ZDU 10 BL
Manufacturer: Weidmüller
Designation: Terminal block blue 10 mm²
Type: ZDU 10 BL
Connectable conductor cross-section fine-stranded without ferrule: 1.5..10 mm²
Connectable conductor cross-section fine-stranded with ferrule: 1.5..10 mm²
Connectable conductor cross-section solid: 1.5..16 mm²
Connectable conductor cross-section multi-stranded: 1.5..16 mm²
Rated current In: 57 A
Rated voltage: 1000 V
Type of electrical connection 1: Spring clamp connection
Type of electrical connection 2: Spring clamp connection
Number of levels: 1
Number of connection points per level: 2
Suitable for conductor material: Copper
Mounting type: TH35 rail
Material of insulating body: Thermoplastic
Operating temperature: -50..120 °C
Flammability class of insulating material according to UL 94: V0
Width: 10 mm
Height: 73.5 mm
Depth: 49.5 mm
Explosion-proof version "Ex e": yes
End plate required: yes
Color: blue
Internally bridged levels: no
Weidmüller Terminal Block ZDU 10 BL: additional details
Rail-mounted terminal for connecting or joining conductors with permanently secure contact. Hardened steel withstands mechanical forces, tin-plated copper ensures optimal conductivity.
EAN: 4008190996727.
Item number | 17994842 |
Manufacturer | Weidmüller |
Category | Cable joints |
Manufacturer no. | 1746760000 |
Release date | 20.12.2021 |
Minimum order | 10 |
Order quantity steps | 10 |
Exact colour description | Blue |
Colour | Blue |
Material | Wemid |
Material group | Plastic |
Cable connection type | Terminal blocks |
Suitable for cable cross-section | 10 mm² |
Country of origin | Czech Republic |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Feed-through terminal ZDU 10 BL |
Items per sales unit | 25 x |
Length | 73.50 mm |
Width | 10.10 mm |
Height | 73.50 mm |
Weight | 25.30 g |
