Product details

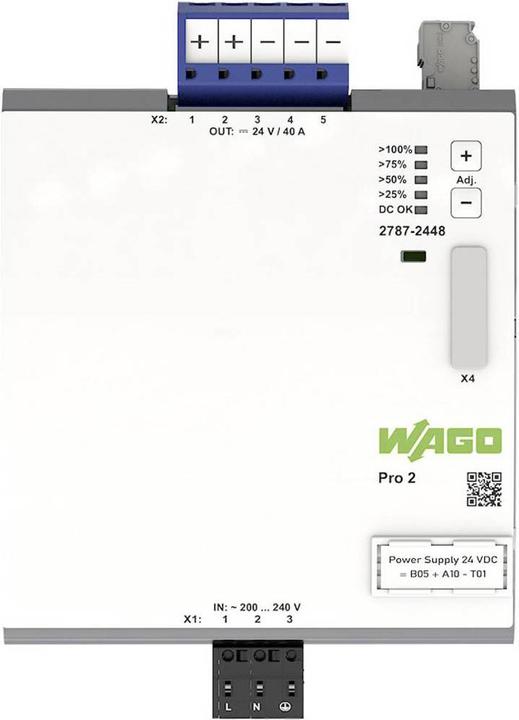

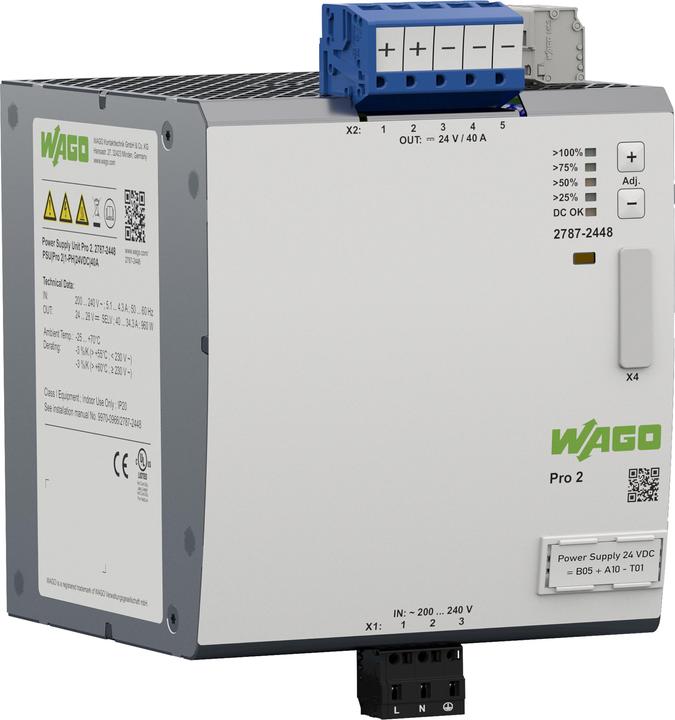

The Wago Pro 2 DIN rail power supply is a powerful system power supply designed for use in industrial applications. With an output voltage of 24 V and a maximum output current of 40 A, this power supply provides a reliable energy source for various devices and systems. It is single-phase and supports an input voltage of 200 to 240 V. Integrated features such as TopBoost and PowerBoost allow for flexible adaptation to different load conditions, while the configurable overload behavior ensures safe usage. The device's communication capabilities enable easy integration into existing systems and monitoring of operational status.
- TopBoost and PowerBoost for flexible load adaptation
- Configurable digital input and output signals
- Optical status display and function buttons for easy operation
- Communication interfaces for IO-Link, EtherNet/IP, Modbus TCP, and Modbus RTU
- Self-cooling through natural convection in horizontal installation position.
Nominal current | 40 A |
Nominal voltage | 373 V |
Protection type (IP code) | IP20 |
Item number | 20644071 |
Manufacturer | Wago |
Category | Mobile power distributors |
Manufacturer no. | 2787-2448 |
Release date | 5.5.2021 |
Nominal current | 40 A |
Nominal voltage | 373 V |
Area of use | Inside |
mounting type | DIN top-hat rail |
Number of poles | 1 x |
Power | 0.96 kW |
input voltage | 180 - 264 V |
output voltage | 24V |
number of poles | 1 |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Scope of delivery | 1 pc. |

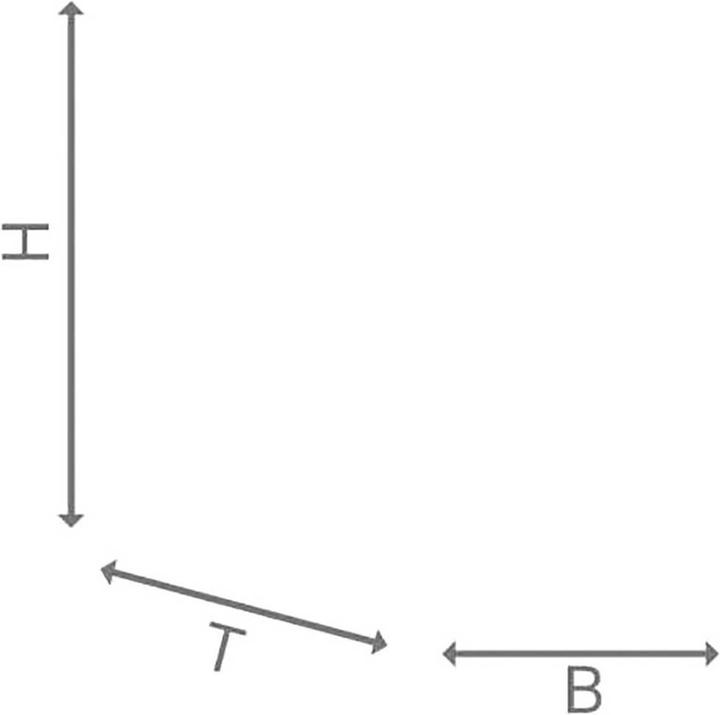

Width | 120 mm |
Length | 130 mm |
Height | 130 mm |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
