Wago PCB terminal

Minimum order 2
was CHF18.70
Ratings
BrandMore from Wago
Delivered between Wed, 8.4. and Mon, 13.4.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Number3

Product details

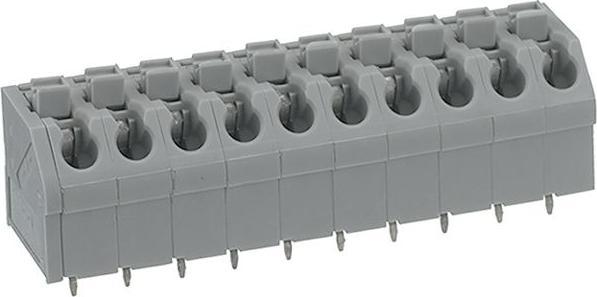

The Wago printed circuit board terminal is a highly developed wire-to-board connector designed for a variety of applications in electronics and electrical engineering. This terminal provides a reliable and secure connection for wires with a diameter of 0.52 mm² to 1.5 mm² and is suitable for operating temperatures ranging from -60 °C to 105 °C. With a rated voltage of 320 V and a rated current of 17.5 A, it is ideal for demanding environments. The 10-pole version with a pitch of 5 mm allows for flexible and space-saving mounting on printed circuit boards. The spring clamp technology ensures easy and quick installation, while the UL 94 V-0 flammability rating offers additional safety. This terminal is UL recognized and complies with VDE standards, underscoring its quality and reliability.

  • Operating temperature range from -60 °C to 105 °C
  • Suitable for wire diameters of 0.52 mm² to 1.5 mm²
  • Rated voltage of 320 V and rated current of 17.5 A
  • 10-pole version with a 5 mm pitch
  • Spring clamp technology for easy installation.

Key specifications

Colour
Grey
Suitable for cable cross-section
1.50 mm²
number of poles
10
Items per sales unit
20x

General information

Item number
31064992
Manufacturer
Wago
Category
Cable joints
Manufacturer no.
250-510
Release date
23.12.2021
External links
Manufacturer's site (de)
Minimum order
2

Colour

Exact colour description
Grey
Colour
Grey

Material

Material
Pushers

Cable connection Properties

Suitable for cable cross-section
1.50 mm²
number of poles
10

Voluntary climate contribution

CO₂ emissions
0.25 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
20x

Product dimensions

Length
165 mm
Width
115 mm
Height
15 mm
