Wago LED terminal 5 mm tension clamp Assignment: L Grey 280-658/281-413 100 pcs (280-658/281-413)

Ratings
Delivered between Tue, 26.8. and Tue, 2.9.
Supplied by
Conrad CH
free shipping

Product details

WAGO GmbH & Co. KG 4-wire LED terminal block 280-658/281-413

Manufacturer: WAGO GmbH & Co. KG
Designation: 4-wire LED terminal block
Type: 280-658/281-413
Explosion-tested version "Ex e": No
Connectable conductor cross-section finely stranded without ferrule: 0.08 to 2.5 mm²
Connectable conductor cross-section solid: 0.08 to 2.5 mm²
Connectable conductor cross-section stranded: 0.08 to 2.5 mm²
Rated current In: 0.025 A
Rated voltage: 24 V
Electrical connection version 1: Spring-cage connection
Electrical connection version 2: Spring-cage connection
Number of levels: 1
Number of terminals per level: 4
Levels internally bridged: No
Mounting type: Top-hat rail TH35
Insulator material: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0

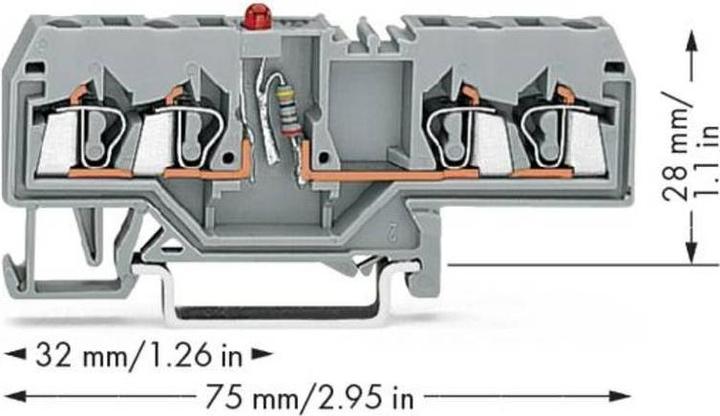

Width: 5 mm
Height: 75 mm
Depth: 28 mm
End plate required: Yes
Colour: Grey
Component type: LED

WAGO GmbH & Co. KG 4-wire LED terminal block 280-658/281-413: More details

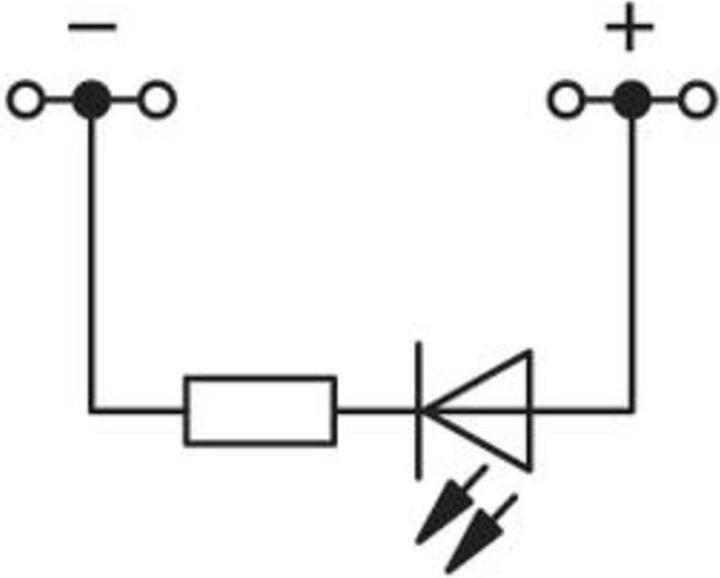

Component terminal block 4-wire LED red DC 24 V for mounting rail 35 x 15 and 35 x 7.5 2.5 mm² CAGE CLAMP® 2.50 mm² grey.

Key specifications

Item number
34030435

General information

Manufacturer
Wago
Category
Cable joints
Manufacturer no.
280-658/281-413
Release date
17.5.2023

Colour

Exact colour description
Grey
Colour
Grey

Material

Material
Thermoplastic resin
Material group
Plastic

Cable connection Properties

Cable connection type
Luminaire terminal
Suitable for cable cross-section
2.50 mm²

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
4-wire LED terminal block
Items per sales unit
100 x

Product dimensions

Length
28 mm
Width
5 mm
Height
28 mm
