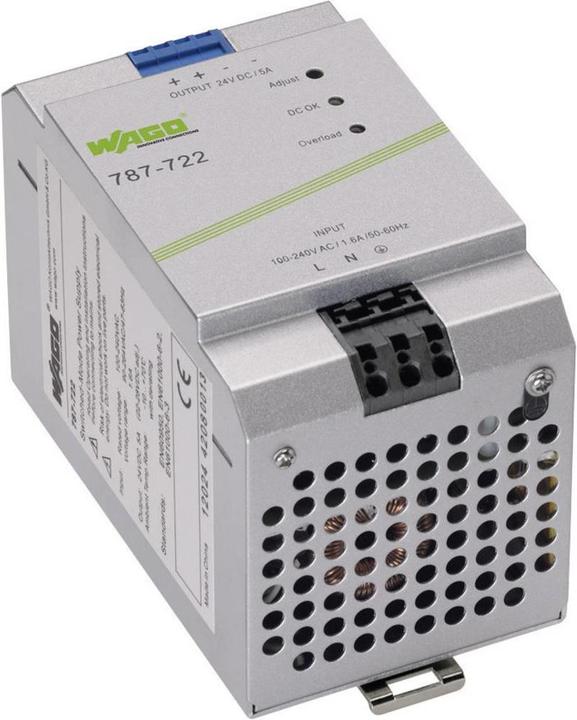

Wago DIN-rail power supply unit (DIN-rail

Ratings
Delivered between Thu, 25.6. and Thu, 2.7.
More than 10 pieces in stock at supplier
free shipping

Nominal voltage3

Product details

WAGO GmbH & Co. KG Power Supply 787-722

Manufacturer: WAGO GmbH & Co. KG
Designation: Power Supply 24VDC 5A
Type: 787-722
Voltage Type of Supply Voltage: AC/DC
1st Output Voltage: 22..28 V
Max. Output Current 1: 5 A
Adjustable Output Voltage: yes
Nominal Output Voltage 1: 24 V
Nominal Output Current 1: 5 A
Short-Circuit Proof: yes
Rated Supply Voltage at AC 50 Hz: 90..264 V
Rated Supply Voltage at AC 60 Hz: 90..264 V
Rated Supply Voltage at DC: 90..373 V
Regulated Output Voltage: yes
Power Output: 120 W
Stabilized: yes
Type of Electrical Connection: Spring Clamp Connection
DIN Rail Mounting Possible: yes
Wall Mounting Possible: no
Suitable for Series Installation: yes
Width in Division Units: 4
Direct Mounting Possible: no
Width: 75 mm
Height: 92 mm
Depth: 136 mm
Suitable for Safety Functions: no
Protection Class (IP): IP20

WAGO GmbH & Co. KG Power Supply 787-722: Additional Details
Eco Power Supply 1-phase
Output Voltage DC 24 V
Output Current 5 A
DC-OK LED 4.00 mm²

Features: Primary switched power supply. Self-cooling through natural convection in horizontal installation position. Encapsulated, for cabinet installation. Can be connected in parallel and in series. Galvanically isolated output voltage (SELV) according to UL 61010-1 PELV according to EN 60204.
EAN: 4045454908188.

Key specifications

Nominal current
5 A
Nominal voltage
373 V
Number of outlets
1x
Protection type (IP code)
IP20

General information

Item number
8424011
Manufacturer
Wago
Category
Mobile power distributors
Manufacturer No.
787-722
Release date
20.4.2018

Colour

Colour
Grey
Exact colour description
Grey

Mobile power distributor features

Nominal current
5 A
Nominal voltage
373 V
Number of outlets
1x
Area of use
Inside
mounting type
Fastening rail
Power
120 W
Input voltage
264 V
output voltage
24V
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
44.85 kg
Climate contribution
CHF 1.07

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
Power supply 24VDC 5A

Product dimensions

Width
75 mm
Length
136 mm
Height
92 mm
Diameter
136 mm

Package dimensions

Length
15.50 cm
Width
10.30 cm
Height
19.50 cm
Weight
856 g
