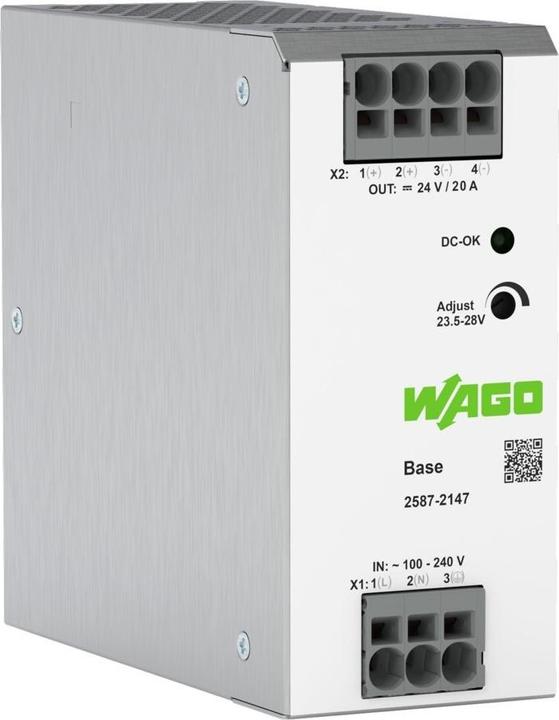

Wago 2587-2147 Primär getaktete Stromversorgung Base 1ph

WAGO GmbH & Co. KG Primary Switched Power Supply 2587-2147

Manufacturer: WAGO GmbH & Co. KG
Description: Primary switched power supply Base, single-phase
Type: 2587-2147
Voltage type of supply voltage: AC
Output voltage: 23..28 V
Max. output current: 5 A
Adjustable output voltage: yes
Nominal output voltage: 24 V
Nominal output current: 5 A
Short-circuit proof: yes
Rated supply voltage at AC 50 Hz: 90..264 V
Rated supply voltage at AC 60 Hz: 90..264 V
Regulated output voltage: yes
Power output: 120 W
Stabilized: yes
DIN rail mounting possible: yes
Wall mounting possible: no
Suitable for series installation: no
Width in pitch units: 2
Direct mounting possible: no
Width: 38 mm
Height: 130 mm
Depth: 130 mm
Suitable for safety functions: no

Additional details:
Primary switched power supply Base single-phase
Output voltage DC 24 V
Output current 20 A
DC-OK LED
Features: Optical status indicator. Can be connected in parallel or in series. Self-cooling through natural convection in horizontal installation position. Connection technology with direct plug-in technology. Galvanically isolated output voltage (SELV) according to EN 62368-1/UL 61010-1.
EAN: 4066966626698.
