Vortice CA 100 MD E RF

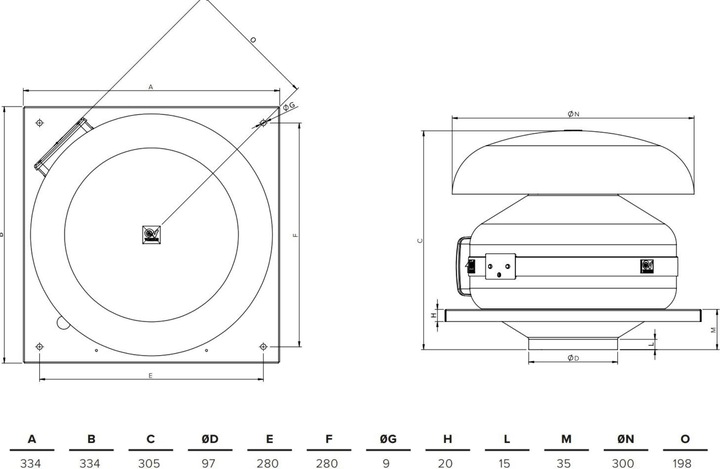

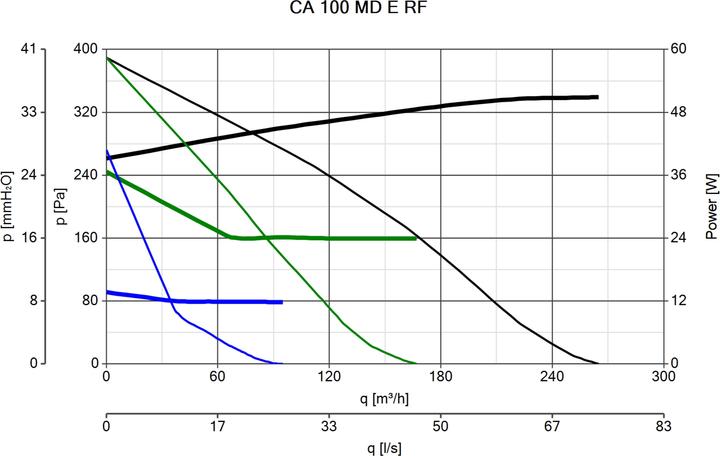

Dimensions and technical details 220-240 V ~ 50 Hz Centrifugal roof fan with mounting plate Housing colour: hammered grey Housing material: phosphated steel, polyester powder coating Nominal width: 100 mm Speeds: 3 Motor wattage: 12 / 24 / 50 W Current consumption: 0.13 / 0.18 / 0.23 A Revolutions per minute: 900 / 1555 / 2405 Airflow rate: 95 / 167 / 265 m3/h Total pressure Pmax: 272.2 / 389.3 / 389.3 Pa Max. sound pressure level Lp-3m: 37.5 dB(A) Max. temperature for continuous operation: 50°C Protection code: IPX4 Insulation class: II Dimensions mounting plate: 334 x 334 x 20 mm Total depth: 305 mm Diameter duct connection: 97 mm Weight: 4.6 kg Thermal overload protection.
