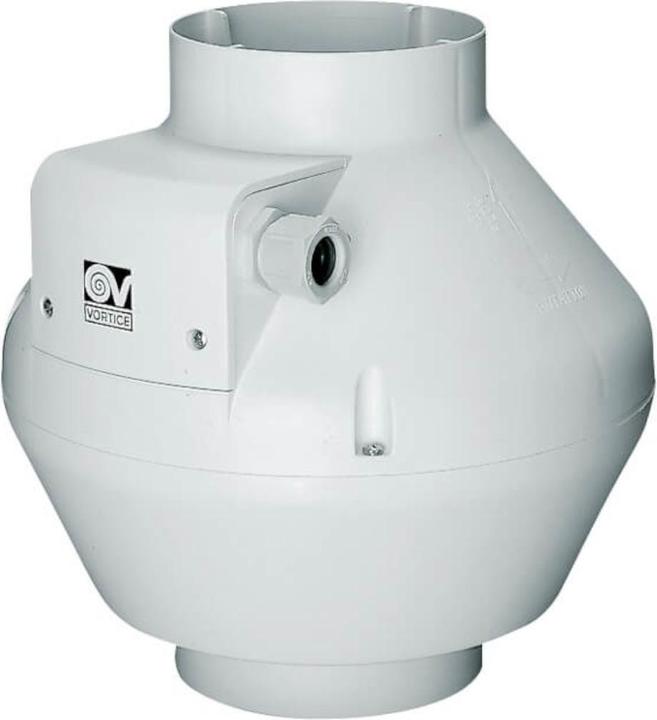

Vortice CA 200 V0 Q

Dimensions and technical details:

• Voltage: 220-240 Volt ~ 50/60 Hertz
• Type: Centrifugal inline fan
• Housing color: White
• Housing material: Self-extinguishing plastic, non-yellowing
• Nominal width: 200 mm
• Max wattage: 104 W
• Max current consumption: 0.45 A
• Max revolutions per minute: 2355
• Max airflow rate: 805 m³/h
• Total pressure Pmax: 438 Pa
• Sound pressure level Lp-3m: 59 dB(A)
• Max temperature: 50°C
• Protection code: IPX4
• Insulation class: II
• Weight: 3.1 kg
• Thermal overload protection
• Integrated protection grille on the air intake side
• Optional speed controllers and sensors sold separately
• Mounting options: In walls, ceilings, suspended ceilings (steel sheet mounting brackets included in the delivery)
• Ideal for subtle extraction of air at home, in commercial or industrial buildings

Model specifications:

• Model: CA 200 V0 Q
• Ø A: 340 mm
• B: 280 mm
• Ø C: 340 mm
• Ø D: 197 mm
• E: 40 mm.
