Vaillant Package

Vaillant package 6.206/2 atmoTEC plus 0010046388

Manufacturer: Vaillant
Designation: Package 6.206/2 atmoTEC plus
Type: 0010046388

The Vaillant package 6.206/2 atmoTEC plus includes the following components:

• Vaillant atmoTEC plus VCW gas wall-mounted heater with chimney connection
• SensoHOME 380/2
• Accessories

Product benefits:

• Modulating controlled output
• System Pro E Aqua-Comfort-System
• Horizontal hydraulic connections for installation
• Accessories that can be installed in the appliance housing
• Flexible use in modernization

Equipment:

• High-efficiency pump
• Water pressure sensor and pressure gauge
• 12 l expansion vessel
• Automatic quick air vent and heating safety valve
• Vario frame
• Water-cooled, atmospheric premix burner
• Electronic pre-mix burner
• Electronic partial load adjustment
• Secondary heat exchanger made of stainless steel
• Hydraulic and gas pre-installation possible
• DIA system with symbol display, illuminated service panel

Gas type: Natural gas E
Nominal output range (80/60 °C): 9.6-24.0 kW
Output for hot water: 24.0 kW
Max. heat load (heating): 26.6 kW
Max. heat load (hot water): 26.6 kW
Min. heat load: 10.7 kW
Standard efficiency: 84% (Hs) / 93% (Hi)
Residual head of pump: 250 mbar
Max. flow temperature: 85 °C
Electrical connection: 230/50 V/Hz
Flow/return connection: G 3/4
Cold/hot water connection: G 3/4
Gas connection: G 1/2
Flue gas connection: 130 mm

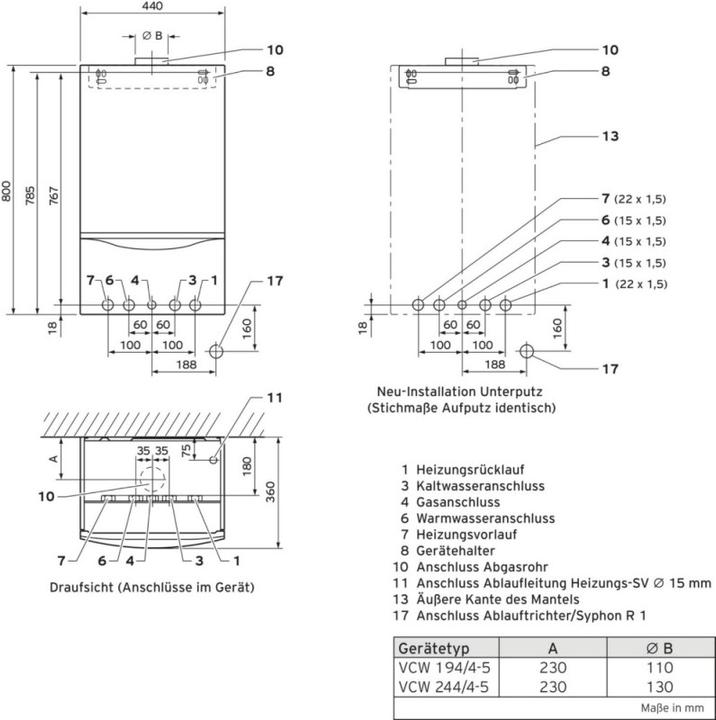

Dimensions (height/width/depth): 800/440/360 mm
Weight: 44 kg

DVGW product ID no.: CE-0085BS0339
Package energy efficiency class (heating): C (spectrum A+++ to G)
Package energy efficiency class (hot water): B (spectrum A+++ to G).
