TracoPower AC/DC-Einbaunetzteile geschlossen

Ratings
Delivered Tue, 17.6.
Only 2 items in stock at third-party supplier
Supplied by
Conrad CH

Product details

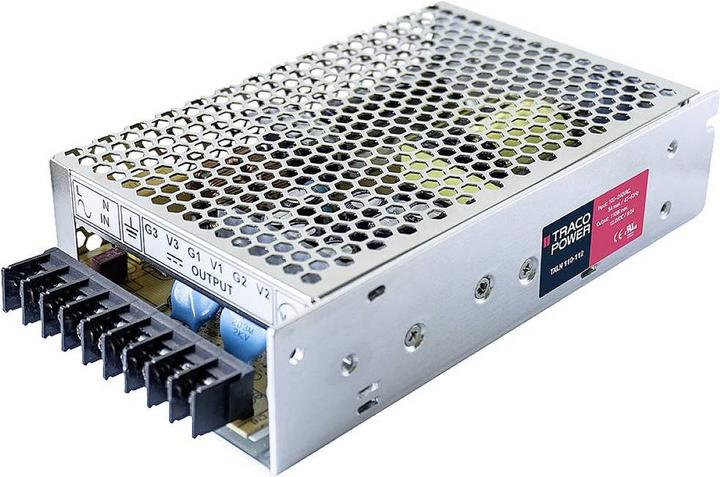

AC/DC built-in power supplies closed. Compact metal housing with screw terminals. Universal mains input 88-264 VAC. Compliance with EN 61000-3-2. Convection cooling. Protection against short circuit, overvoltage, and overload. Safety approvals according to IEC/EN/UL 62368-1.

Technical data:

  • Connection (components): screw terminals
  • Number of outputs: 1
  • Output voltage (max.): 5.0 V/DC
  • Output voltage (min.): 5.0 V/DC
  • Output current (max.): 20000 mA
  • Output current (min.): 0 mA
  • Operating temperature (max.) (derating): 50 °C
  • Operating temperature (max.): 70 °C
  • Operating temperature (min.): -20 °C
  • Input voltage (max.): 264 V/AC
  • Input voltage (min.): 88 V/AC
  • Weight: 460 g
  • Power: 100 W
  • MTBF: 284000 h
  • PFC: Yes
  • Product type: AC/DC power supply module, closed
  • Product dimension, width: 95.0 mm
  • Product dimension, height: 38.0 mm
  • Product dimension, length: 159.0 mm
  • Type (manufacturer type): TXLN 110-105.

Key specifications

input voltage
264 V
Output voltage
5 V
Power output
100 W
Voltage transformer type
Vehicle voltage transformer
Length
15.90 cm
Width
9.50 cm
Height
3.80 cm
Item number
19655667

General information

Manufacturer
TracoPower
Category
Power inverters
Manufacturer no.
TXLN 110-105
Release date
4.3.2022
External links
Manufacturer's site (de)

Voltage Transformer Properties

Voltage transformer type
Vehicle voltage transformer
input voltage
264 V
Output voltage
5 V
Power output
100 W
Electric current output
20 A

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
15.90 cm
Width
9.50 cm
Height
3.80 cm
Weight
460 g
