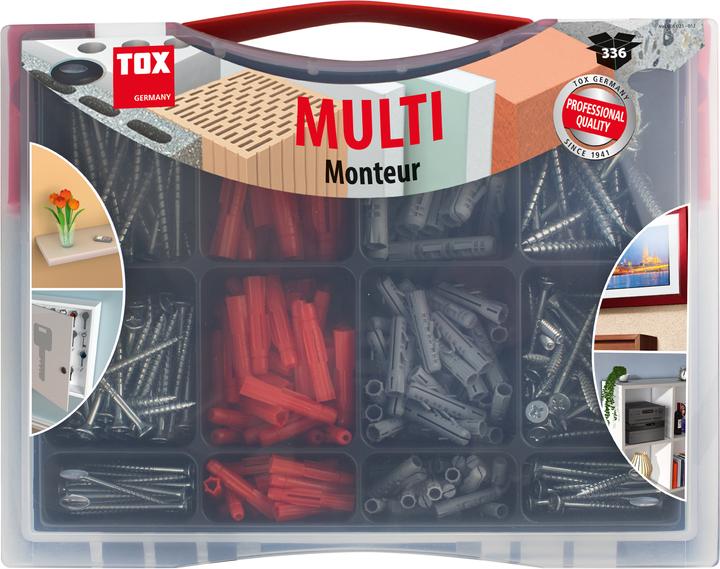

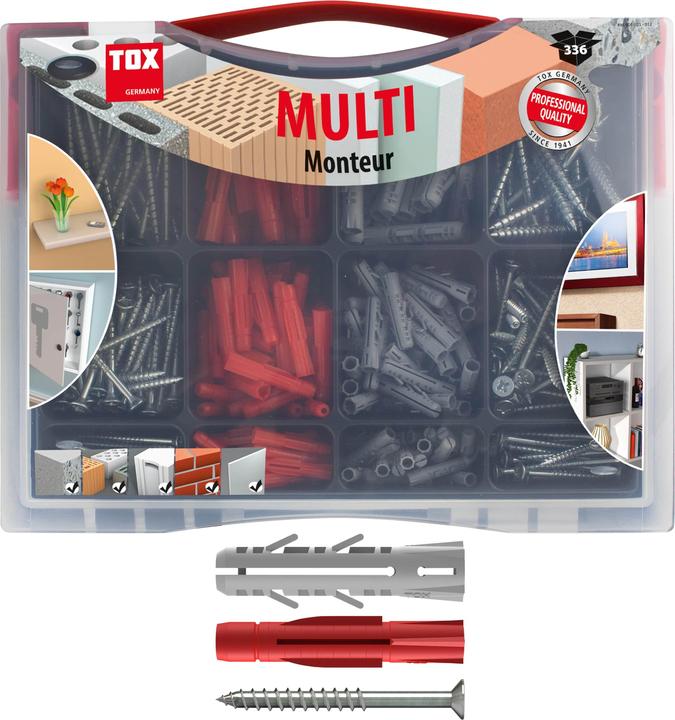

Tox Standard-Sortiment Monteur Multi

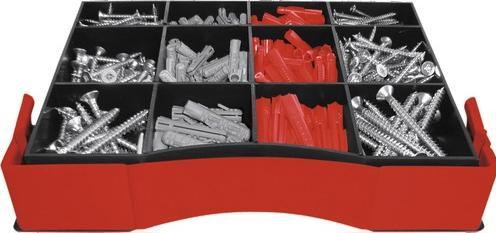

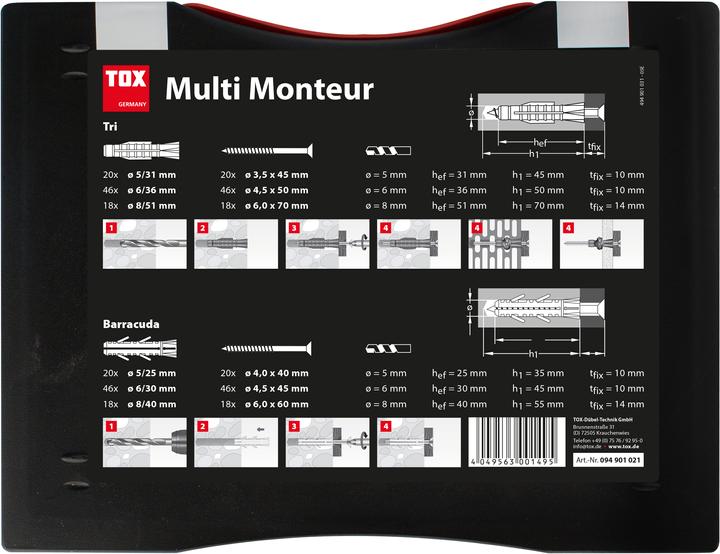

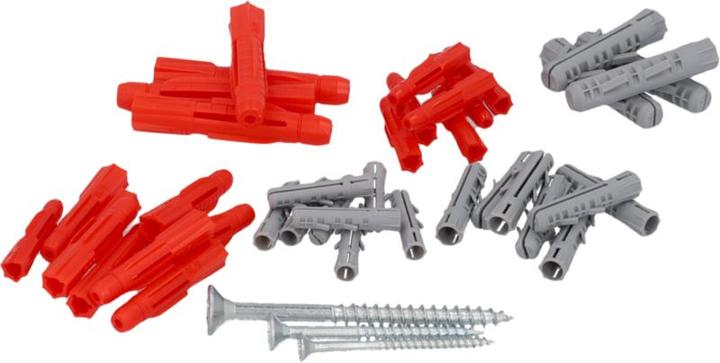

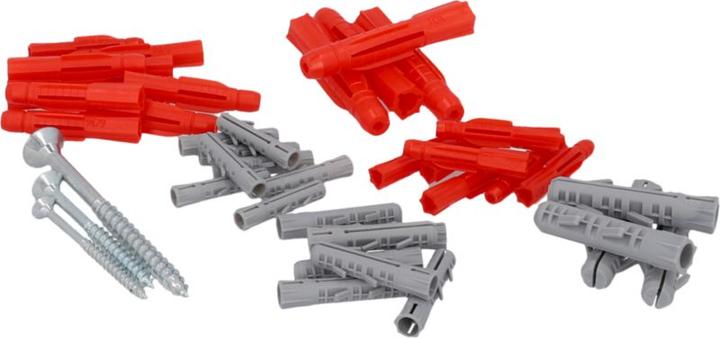

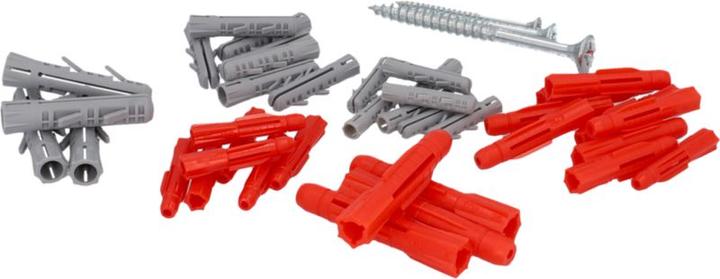

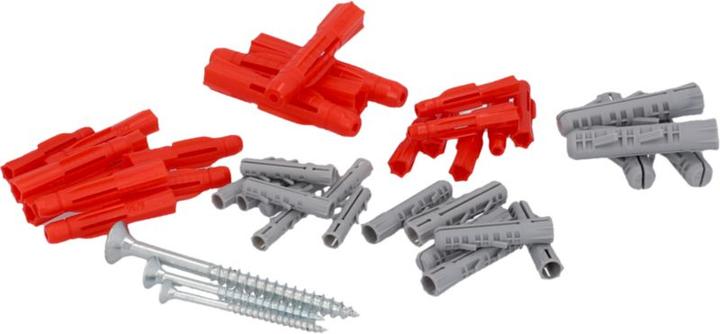

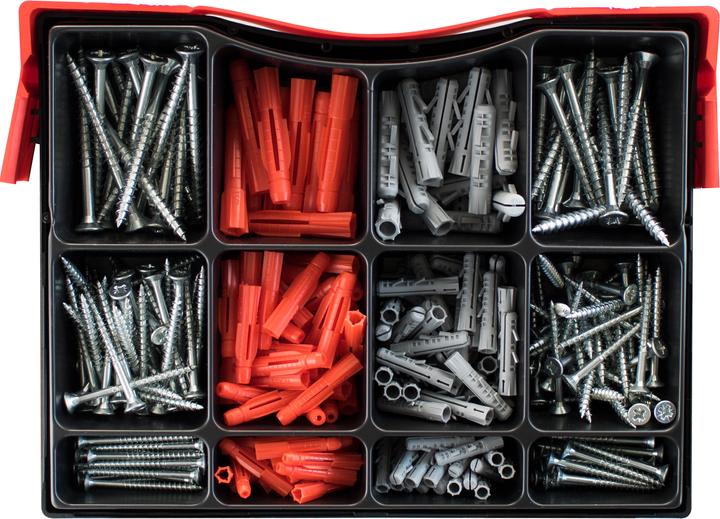

Contents: 20x all-purpose dowel Tri 5/31 + screw 3.5 x 45 mm. 46x all-purpose anchor Tri 6/36 + screw 4.5 x 50 mm. 18x all-purpose anchor Tri 8/51 + screw 6.0 x 70 mm. 20x expansion plug Barracuda 5/25 + screw 4.0 x 40 mm. 46x expansion plug Barracuda 6/30 + screw 4.5 x 45 mm. 18x expansion plug Barracuda 8/40 + screw 6.0 x 60 mm.

Description and application Tri: 3-fold split anchor body without anchor cap. Anti-rotation devices on the neck and body of the plug prevent it from turning in the building material. Countersunk screw with PZ drive.

Description and application Barracuda: Expansion plug for solid building materials. 2-part expansion body with anti-rotation device and flexible neck. Halogen-free. Can be used with wood, chipboard, and hanger bolts. Screw with PZ drive.

Processing and installation: Drill hole in the size of the plug diameter. Drill into perforated brick and plasterboard without hammering in the rotary motion so that the drill hole does not become too large or the webs in the perforated brick do not break out. Drill the hole in plasterboards with a wood or metal drill. Drill in concrete and solid brick with impact. Minimum screw length = dowel length + thickness of add-on part + 5 mm. Pre- and through-hole installation possible.
