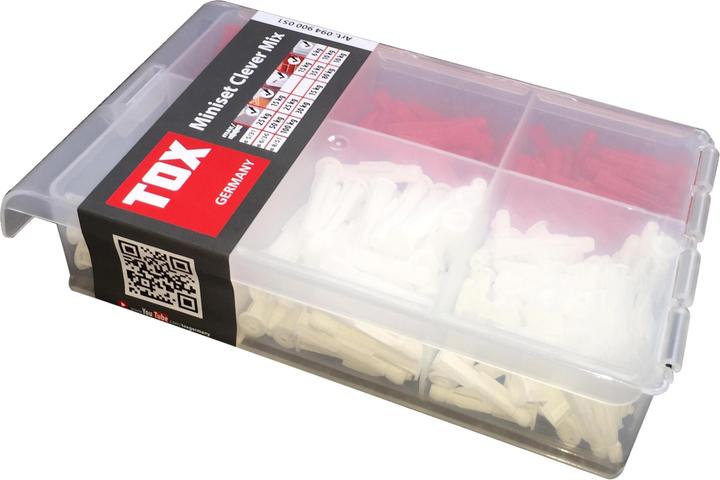

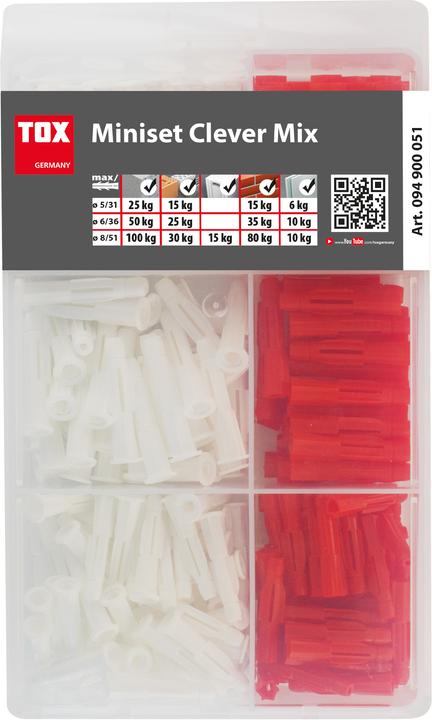

Tox Standard-Sortiment Miniset Clever Mix

Contents
50x all-purpose dowel Tri 5/31
25x all-purpose dowel Tri 6/36
15x all-purpose dowel Tri 8/51
60x all-purpose dowel Trika 5/31
45x all-purpose dowel Trika 6/36
20x all-purpose dowel Trika 8/51

Properties

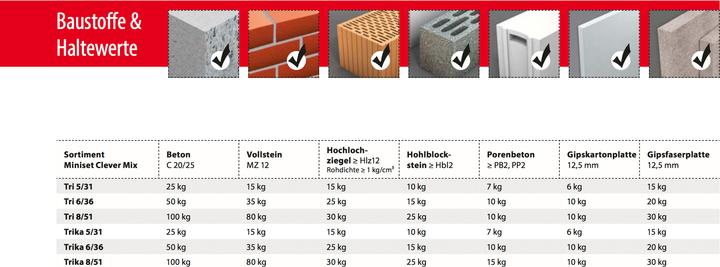

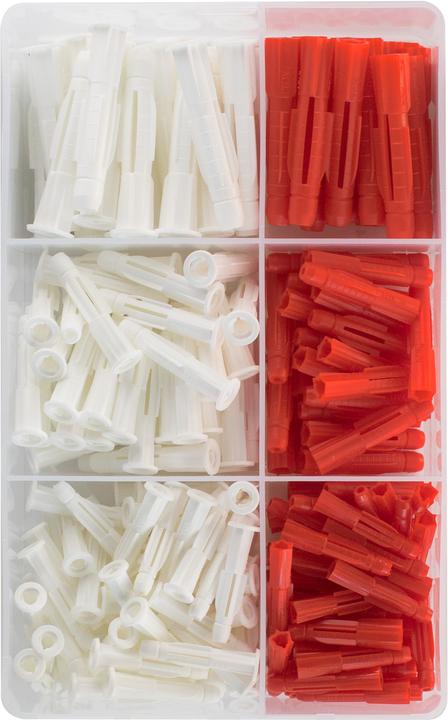

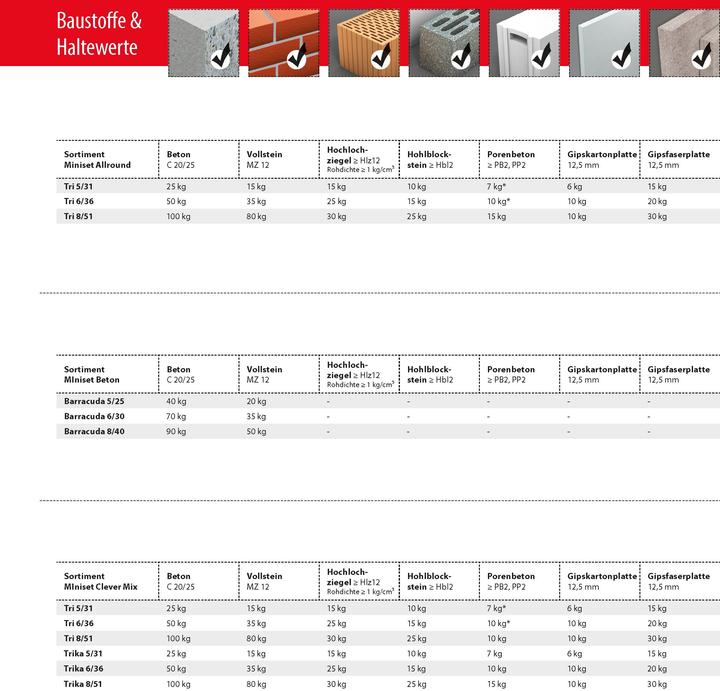

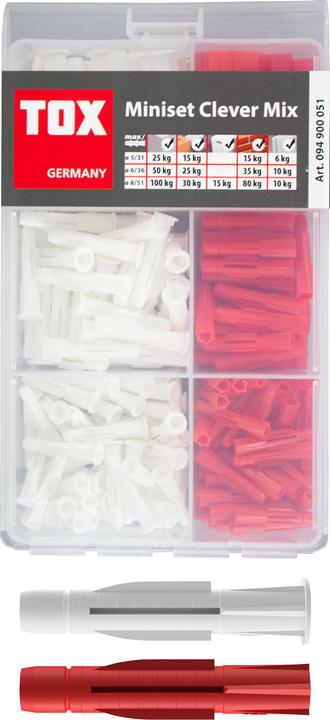

The assortment Miniset Clever Mix contains three dowel sizes each (Ø 5, 6, and 8 mm) of the Tri and Trika. The all-purpose dowel Tri and Trika holds in almost all building materials. The anchor cap of the Trika protects the surface of attachments and prevents them from slipping deeper into the hole.

Description & application range Tri + Trika
3-split anchor body without anchor cap. An anti-rotation device on the anchor neck and a rotating wing on the anchor body prevent rotation in the building material.

Processing & assembly

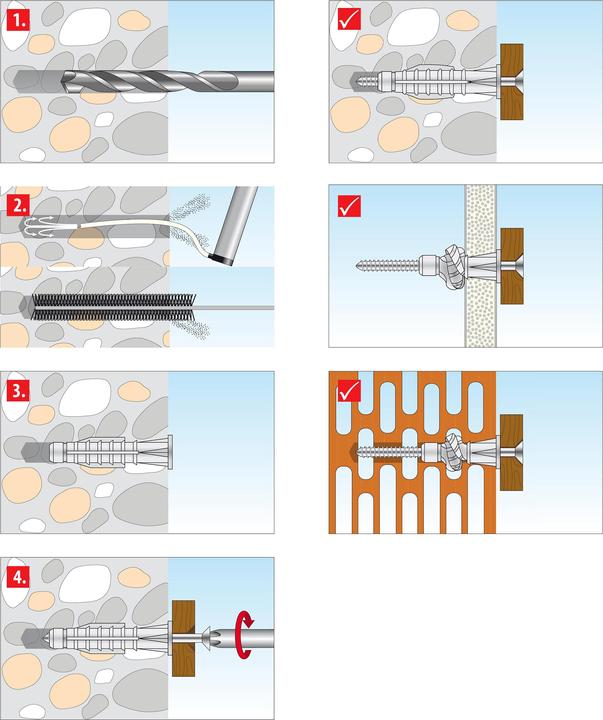

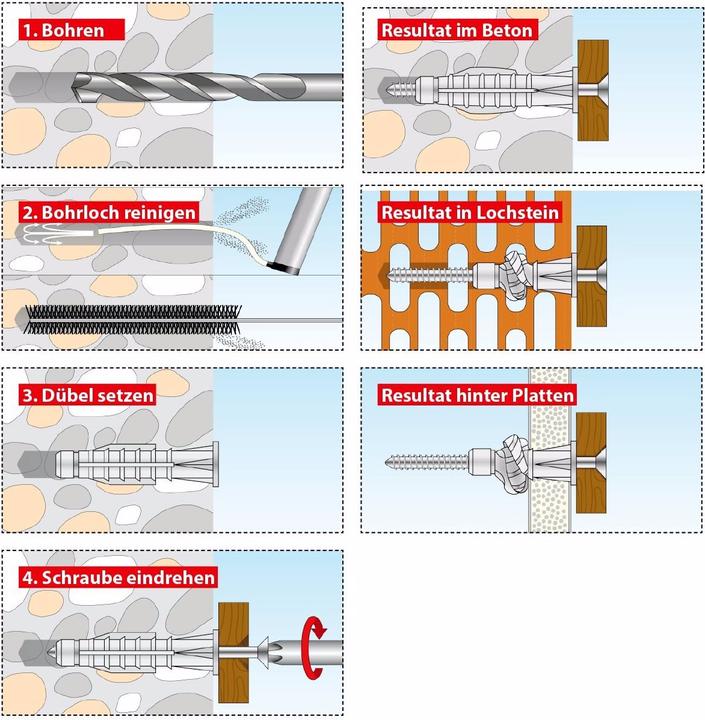

Drill a hole to the size of the anchor diameter. Drill into perforated brick and gypsum plasterboard without percussion in a rotary motion to ensure the drill hole does not become too large and the webs in the perforated brick do not break out. The drill hole in plasterboard should be made with a wood or metal drill bit. Drill concrete and solid stone with percussion. Minimum screw length equals anchor length plus attachment thickness plus 5 mm. Pre- and through-assembly is possible.
