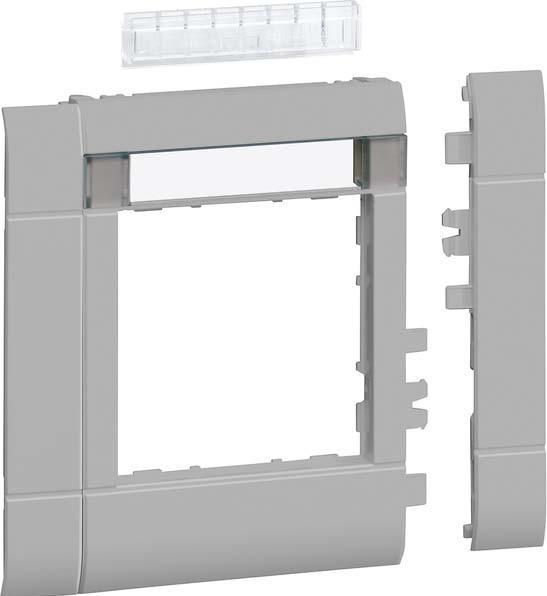

Tehalit Frame cover

Tehalit frame cover modular BRH GR1002ALAN

Manufacturer: Tehalit
Designation: Frame cover modular BRH OT100, hfr, BS, aluminium
Type: GR1002ALAN
Top part width: 100 mm
Length: 103 mm
Opening width: 55 mm
Opening height: 55 mm
Opening diameter: 0 mm
Number of units: 1
Device type: Devices with centre plate
Design: Smooth
Material: Plastic
Material quality: Other
Halogen-free: Yes
Surface protection: Wet lacquered
Colour: Aluminium
RAL number: 9006
With protective film: No
Fastening type: Internal
Cut lamination: Yes
With labelling field: Yes
Protection class (IP): IP20
Impact resistance: IK07

Tehalit frame cover modular BRH GR1002ALAN: more details
Frame cover modular, BRH, ZS 55, OT 100, hfr, labelling field, lacquered aluminium. Frame cover for dado trunking, can be bayed modularly with a combination spacing of 71 mm, cut laminating to the upper part of the trunking. For mounting centre plates, covers, rockers or adapter frames measuring 55 x 55 mm. Adapted to the outer contour of the sill trunking to reduce dirt deposits and simplify cleaning. For use with bayable appliance boxes for sill trunking, with reduced installation depth for a flush finish with the closure contour of the sill trunking. Can be combined with socket outlet cover for sill trunking via optional intermediate piece. Integrated labelling field for mounting on the installation devices or the appliance box, compatible with 9 mm labelling strips.
