Tehalit Frame bezel

Tehalit Modular Frame Cover GR0802A7035

Manufacturer: Tehalit
Description: Modular frame cover OT80, hfr, BS lgr
Type: GR0802A7035
Top width: 80 mm
Length: 103 mm
Opening width: 55 mm
Opening height: 55 mm
Opening diameter: 0 mm
Number of units: 1
Device type: Devices with central plate
Design: smooth
Material: plastic
Material quality: other
Halogen-free: yes
Surface protection: untreated
Color: gray
RAL number: 7035
With protective film: no
Mounting type: recessed
Cutting lamination: yes
With labeling field: yes
Protection class (IP): IP20
Impact resistance: IK07

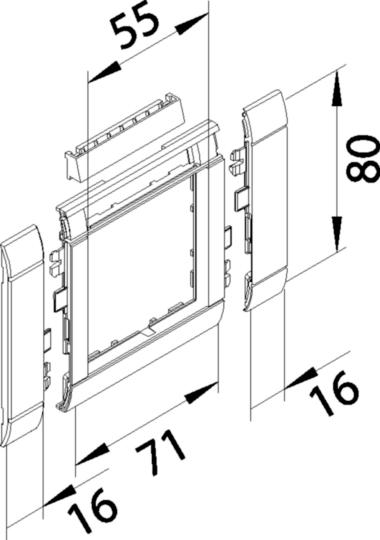

Modular frame cover, ZS 55, OT 80, hfr, labeling field, light gray. Frame cover for trunking, modularly stackable with a combination distance of 71 mm, cutting laminated to the top of the trunking. Designed to accommodate central plates, covers, switches, or adapter frames measuring 55 x 55 mm. Adapted to the outer contour of the trunking to reduce dirt accumulation and facilitate cleaning. For use with stackable device boxes for trunking, with reduced installation depth for flush finish with the closure contour of the trunking. Can be combined with socket covers for trunking via an optional intermediate piece. Integrated labeling field for mounting on the installation device or device box, compatible with 9 mm labeling tapes.
